GIRBAU LOGI CONTROL User Manual

Troubleshooting 73
Cod. 523340
Rev. 10/1016
9.3. Disassembling the door of the washing machine

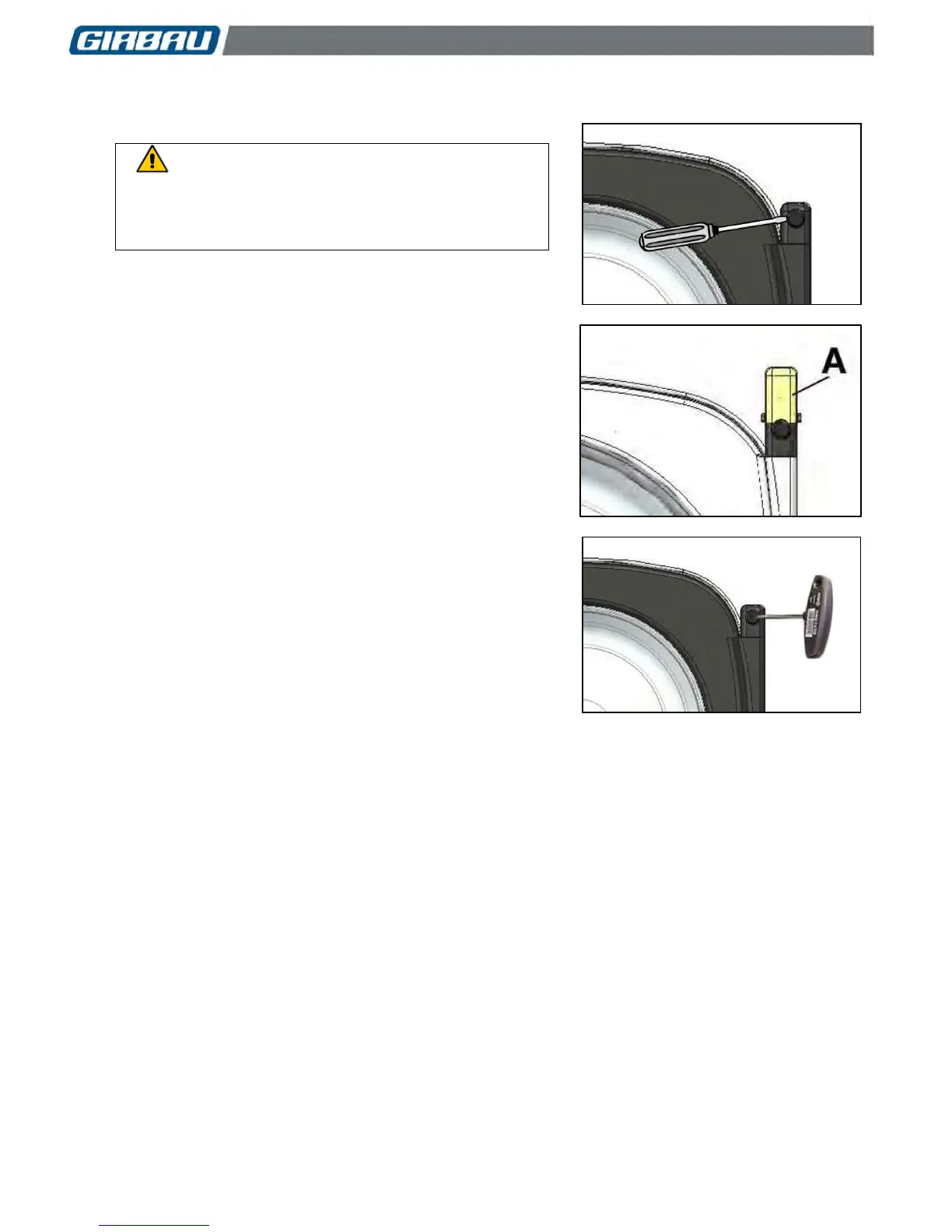

Fig. 9.1
Fig. 9.2
Fig. 9.3
WARNING:
It should only be carried out by the Authorised Technical
Service except in emergency situations. This procedure is
recommended in problems caused by a failure to realise
the door of the machine.
Specific information for RMS610, RMS/RMG613, RMS/
/RMG617, RMS/RMG623, RMS/RMG628, HS-6008, HS-6013,
HS-6017, HS-6024, REM025, REM/RMG033, REM/RMG040,
REM/RMG055, REM/RMG070, EH020, EH030, EH040, EH060.
Before disassembling the door of the washing machine:
 Check that the bath level does not exceed the door
opening level.
 Close and mechanically interlock the manual water supply
valves.
 Close and mechanically lock the manual steam inlet valve
(steam heated washing machines)
 Disconnect and mechanically lock the External Automatic
Switch or the of the washing machine disconnector switch.
Door disassembly.
 Remove the protective caps from the hinge securing
screws. (Fig. 9.1). On RMS/RMG628, REM/RMG070, HS-
6024 and EH040 models, the plastic protector has to be
removed first (Fig.9.2/A).
 Remove the hinge securing screws (Fig. 9.3).
