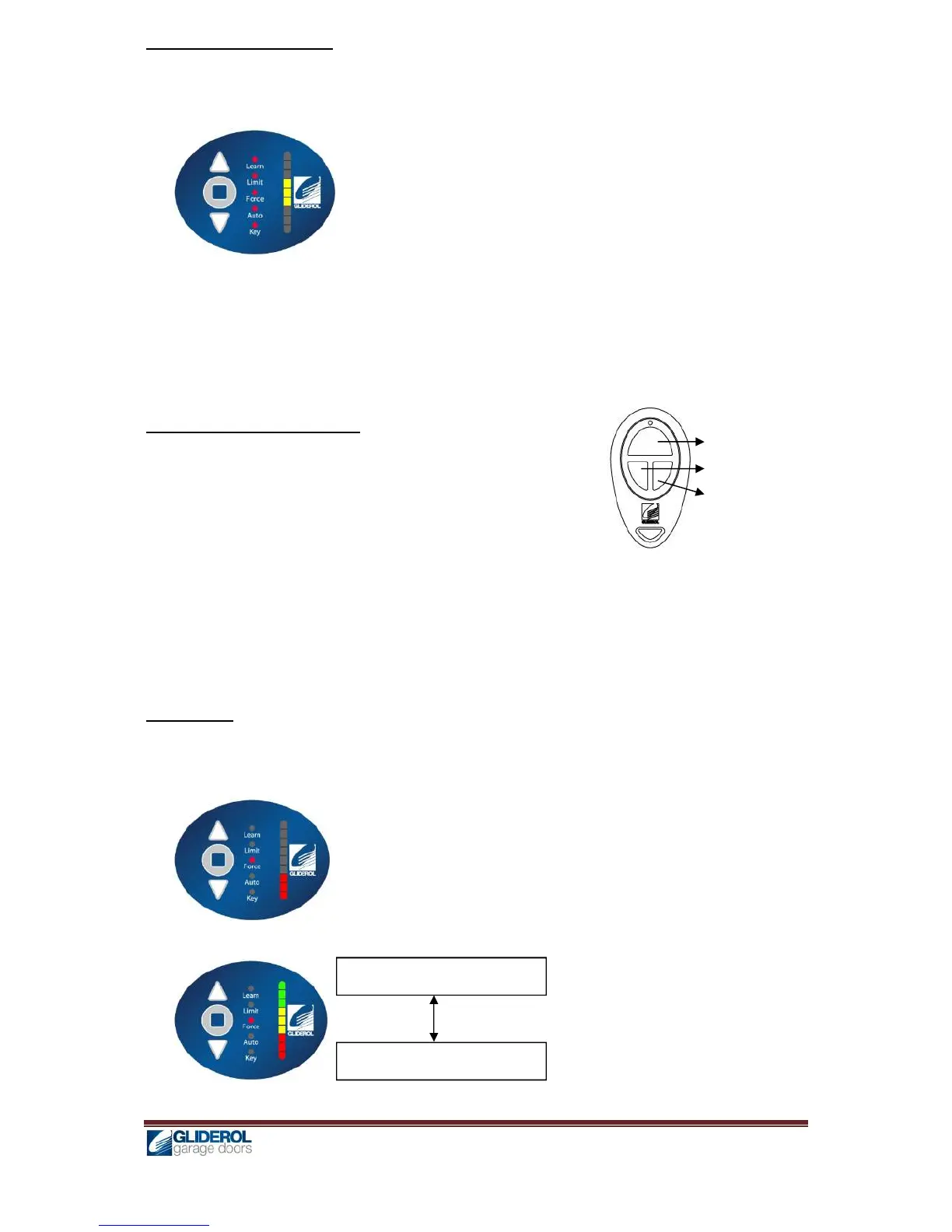

Glidermatic GTS+ Installation Instructions & owner’s manual Page 11
Limit Setting – By Controller
1. Press and hold [ENTER] for 2 seconds to enter menu selection
2. Using [UP] and [DOWN] to select Limit option, and press and hold [ENTER] until all menu LEDs
blink
3. While the menu LEDs blink, proceed to setup the TOP limit, by using transmitter’s OPEN & CLOSE
keys, and confirm TOP limit position by pressing STOP key
4. Then set the BOTTOM limit, also by using transmitter’s OPEN & CLOSE keys, and confirm
BOTTOM limit position by pressing STOP key
5. Once limits are set, the unit will automatically perform a full calibration cycle
6. When the door is closed after calibration, the limits are successfully setup
Limit Resetting – By Transmitter
1. Using an already programmed transmitter, press and hold OPEN
& CLOSE keys simultaneously for 10 seconds
2. While the menu LEDs blink, proceed to setup the TOP limit, by
using transmitter’s OPEN & CLOSE keys, and confirm TOP limit
position by pressing STOP key
3. Then set the BOTTOM limit, also by using transmitter’s OPEN & CLOSE keys, and confirm
BOTTOM limit position by pressing STOP key
4. Once limits are set, the unit will automatically perform a full calibration cycle
5. When the door is closed after calibration, the limits are successfully setup
Force Setting
1. Press and hold [ENTER] for 2 seconds to enter menu selection
2. Using [UP] and [DOWN] to select Force option, and press [ENTER]
3. [INDICATOR] will lit to show current force configuration
4. Using [UP] and [DOWN], to adjust the force in the below manner
6. Press [ENTER] to confirm selection, and a beep will signal for successful setup.
Increase – Low Sensitivity
Decrease – High Sensitivity
[KEY1] STOP
[KEY2] OPEN
[KEY3] CLOSE
