Glomex weBBoat Plus 5G - Page 10

ROUTER
SWITCH
8

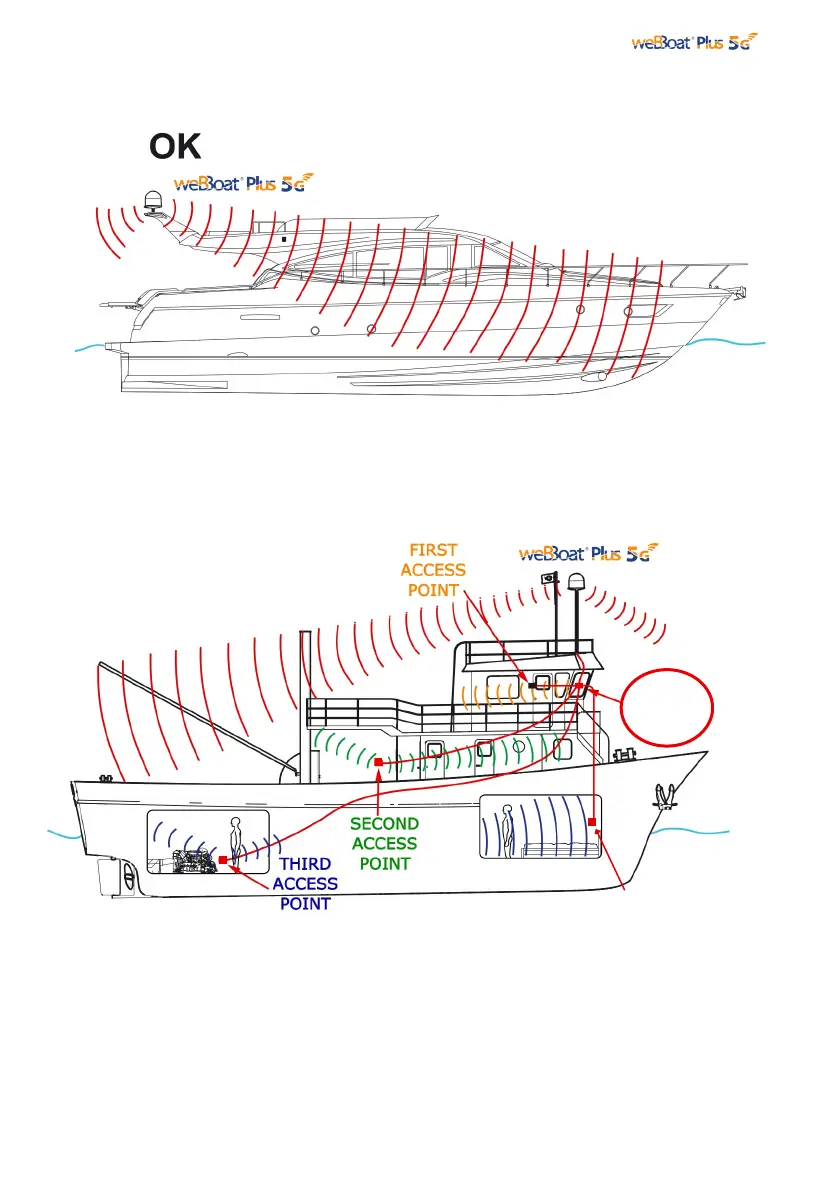

Fig. 3
Typical installation on metal power boat or big yachts
Typical installation on fiberglass midsize power boat
Fig. 4
The image is an example only. The user may configure the network as required.
Using 4 access points at the most is recommended.
FOURTH
ACCESS
POINT
