10

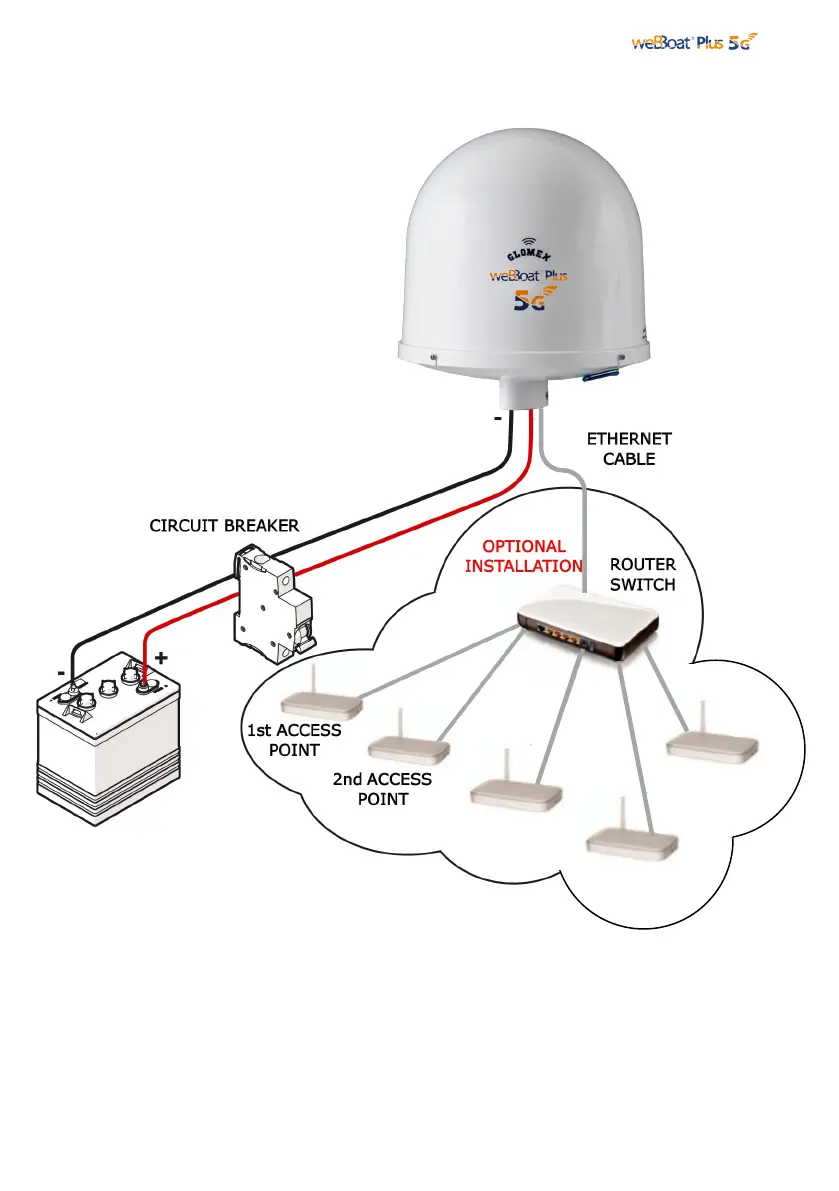

Fig. 5
NOTE: In order to receive the signal from the weBBoat® Plus 5G inside metal vessels,
up to a maximum of 16 access points (according to your needs) must be placed inside
the boat, which must be linked with a switch to the router inside the weBBoat® Plus 5G
via an Ethernet network cable.
3rd
ACCESS
POINT
4th
ACCESS
POINT
... UP TO 16
ACCESS
POINTS
9/30 Vdc
+
