0020085231_02 - 05/10 - Glow-worm
- 20 -

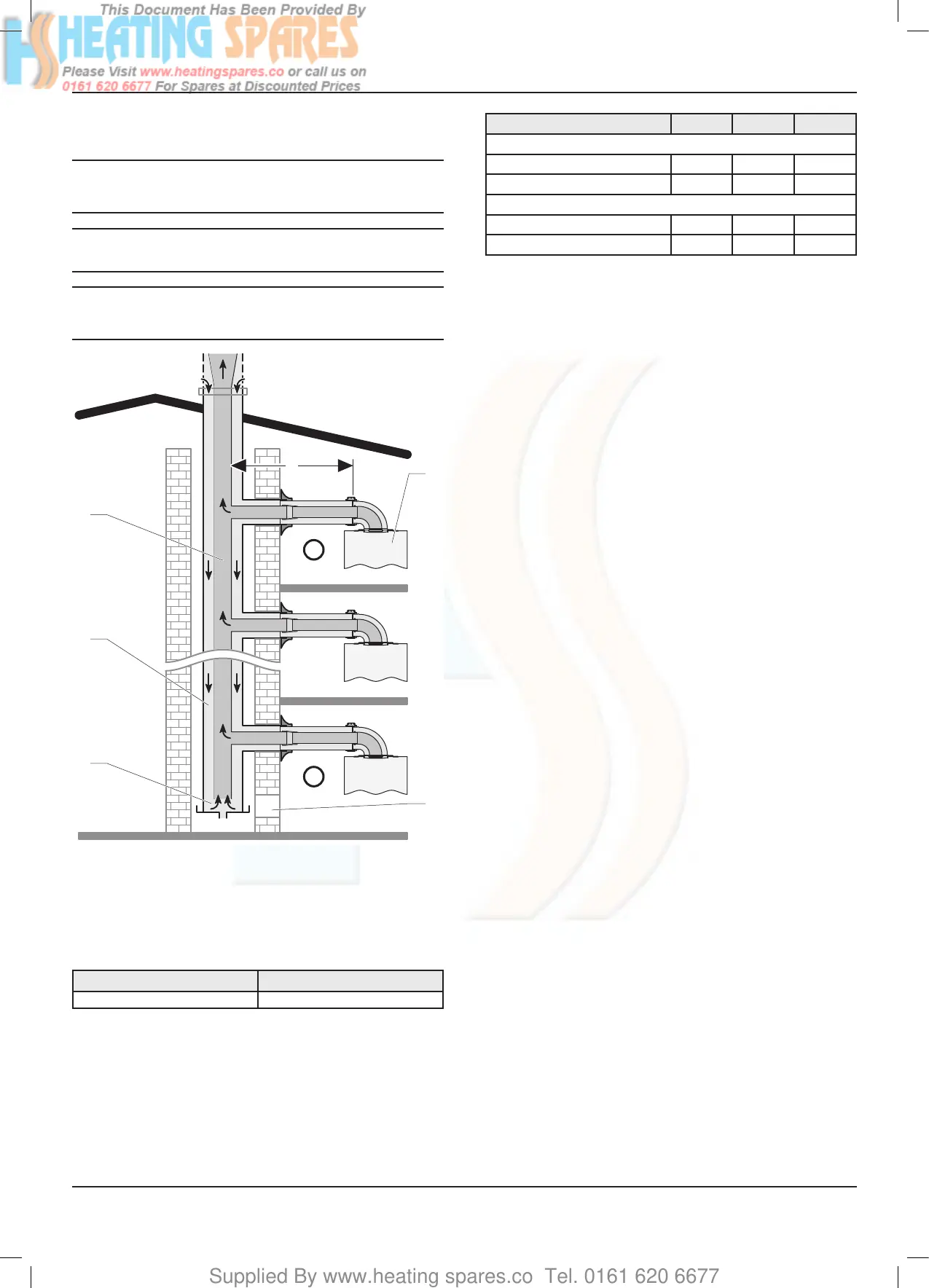

9.2.3 Multipleboilerchimneyue
Ø60/100mm(C43typeinstallation)
b
The ue connecting from the appliance to
the ue system must be supplied from the
manufacturer of the boiler.
b
C43 ue systems must not be a 'pressurised
system' but act under natural draught principles
b
C43 type ue systems must have their
own condensate drain tted and not allow
condensate to mix into other appliances
L
B
A
1
2
3
4
5
Key
1 Pressure balancing system
2 Air-inlet pipe
3 Collector pipe
4 Boiler
5 Inspection hatch
A Final storey
B Groundoor
Type Max length (L)
Ø 60/100 10 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
Model 24cxi 30cxi 35cxi
Exhaust mass rate (g/s)
At min thermal load (40°C/30°C) 2.4 2.9 4.1
At max thermal load (80°C/60°C) 8.3 11.3 13.8
Exhaust temperature (°C)
At min thermal load (40°C/30°C) 45 37 41
At max thermal load (80°C/60°C) 65.7 63.4 71.4
INSTALLATION

Glow-worm Ultracom 2 24cxi Specifications

General

Model	Ultracom 2 24cxi
Category	Boiler
Central Heating Output	24kW
Mounting	Wall-mounted
ERP Rating	A
DHW Output	24kW
Heating Flow Temperature Range	30-80°C
DHW Flow Rate at 40°C Rise	8.6 l/min
DHW Flow Rate at 50°C Rise	6.9 l/min
Warranty	2 years
Expansion Vessel	8 liters
Type	Combi Boiler
