0020085231_02 - 05/10 - Glow-worm
- 19 -

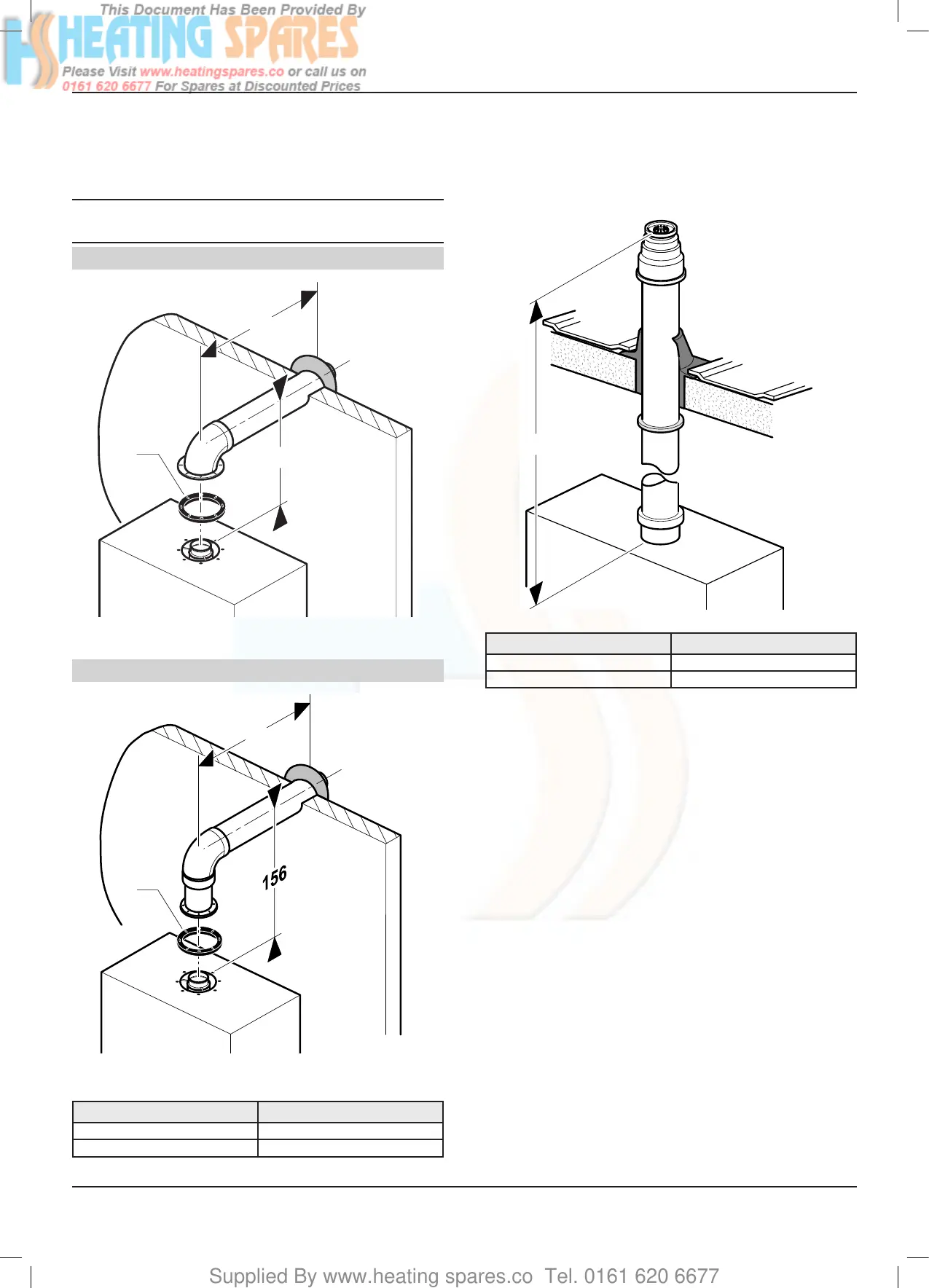

9.2 Fluecongurationdescription
9.2.1 HorizontalconcentricueØ60/100mm
orØ80/125mm(C13typeinstallation)
a
If necessary, you must install a terminal
protection kit.
Ø 60/100 mm
L
63
1
Key
1Gasket(tted)
Ø 80/125 mm
L
1
Key
1Gasket(tted)
Type Max length
Ø 60/100 10 m
Ø 80/125 25 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
9.2.2 VerticalconcentricueØ60/100mm
orØ80/125mm(C33typeinstallation)
L
Type Max length (L)
Ø 60/100 10 m
Ø 80/125 25 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
INSTALLATION

Glow-worm Ultracom 2 24cxi Specifications

General

Model	Ultracom 2 24cxi
Category	Boiler
Central Heating Output	24kW
Mounting	Wall-mounted
ERP Rating	A
DHW Output	24kW
Heating Flow Temperature Range	30-80°C
DHW Flow Rate at 40°C Rise	8.6 l/min
DHW Flow Rate at 50°C Rise	6.9 l/min
Warranty	2 years
Expansion Vessel	8 liters
Type	Combi Boiler
