Glow-worm Ultracom 2 24cxi User Manual

Supplied By www.heating spares.co Tel. 0161 620 6677
0020085231_02 - 05/10 - Glow-worm
- 43 -

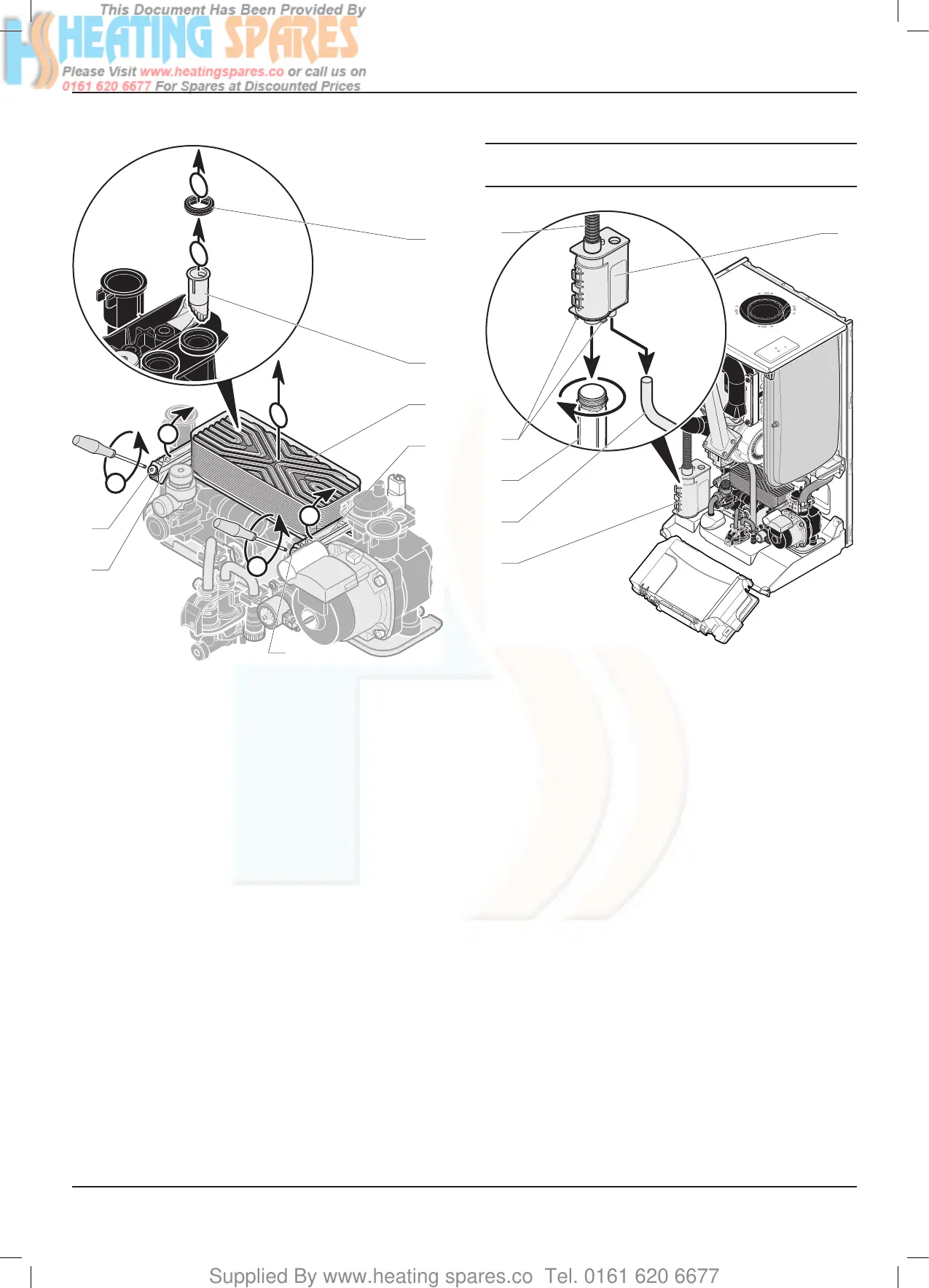

18.7 Heatinglter
B
B
C
AA
A
E
D
1
2
3
4
5
1
2
Key
1 Plate-to-plate heat exchanger retaining arm
2 Plate-to-plateheatexchangerretainingscrew
3 Gasket
4 Heatinglter
5 Plate-to-plate heat exchanger
The heating lter improves the degassing of the heating circuit.
• Close the ow and return heating stop valves and drain the
boiler.
• Remove the retaining screw (2) and arm (1).
• Remove the plate-to-plate heat exchanger (5).
• Remove the gasket (3).
• Remove the heating lter (4).
• Clean and replace.
18.8 Condensate trap
a
Warning: condensate is mildly acidic. Use
protective gloves.
5
4
3
2
1
1
Key
1 The condensate trap
2 Discharge of condensates
3 Siphon
4 Condensate trap retaining clips
5 Hose
• Place a container under the condensate trap (1).
• Remove the siphon (3) from he recoverer and clean.
• Disconnect the condensation discharge (2).
• Disconnect the heat exchanger hose (5).
• Remove the condensate trap (1) using the clips (4).
• Clean the hose, the trap and the siphon, remove any
accumulated dirt.
• Reassemble the components, taking care to position the
gaskets correctly.
• Start the siphon (3) and ll with water.
MAINTENANCE

Glow-worm Ultracom 2 24cxi Specifications

General

Model	Ultracom 2 24cxi
Category	Boiler
Central Heating Output	24kW
Mounting	Wall-mounted
ERP Rating	A
DHW Output	24kW
Heating Flow Temperature Range	30-80°C
DHW Flow Rate at 40°C Rise	8.6 l/min
DHW Flow Rate at 50°C Rise	6.9 l/min
Warranty	2 years
Expansion Vessel	8 liters
Type	Combi Boiler
