GLOW T180 - Page 43

Glow T180
Tankless Condensing Water Heater
43

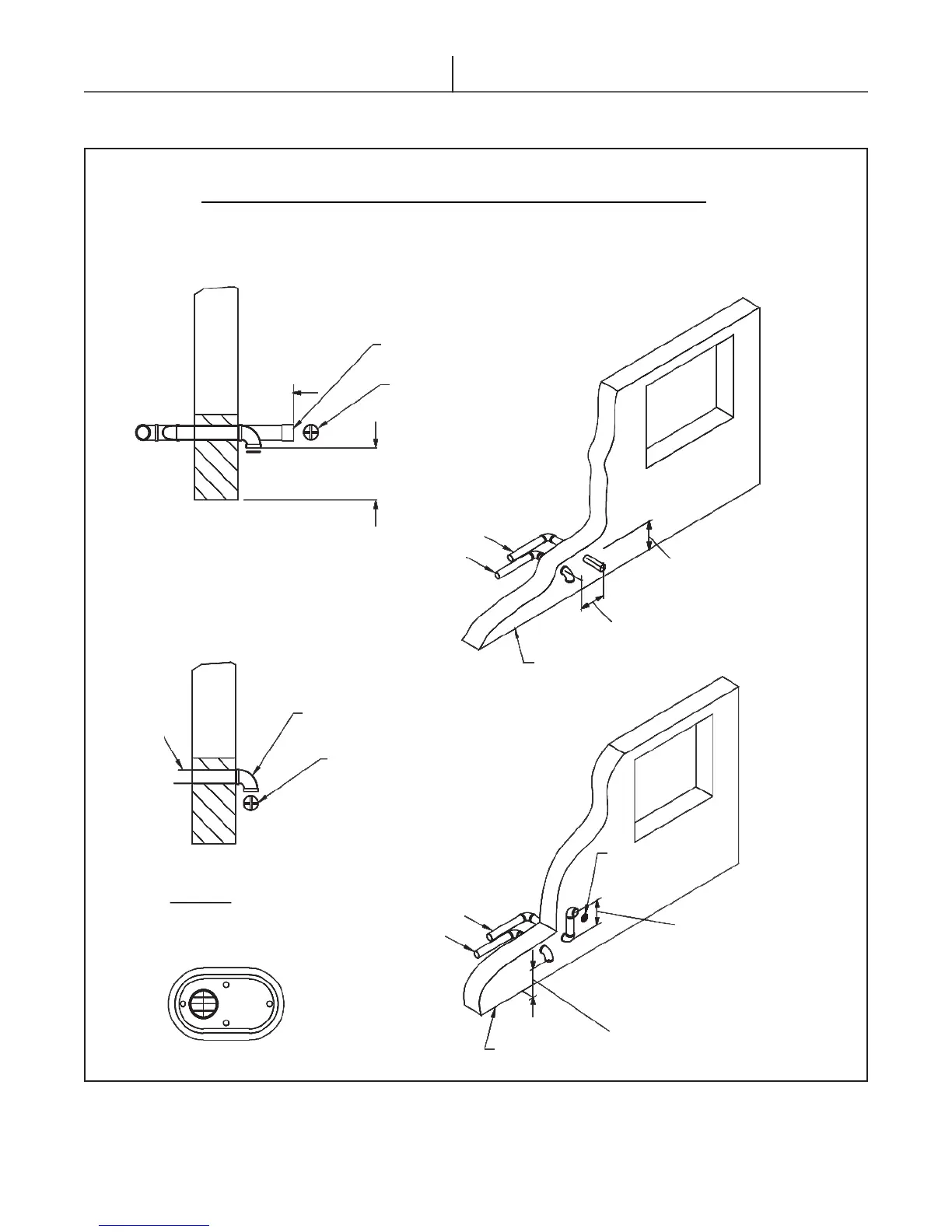

3.10.3 Horizontal Venting
HORIZONTAL VENTING - PVC/CPVC/ABS MATERIAL ONLY 2”, 2½”, or 3”
WINDOW
WINDOW
EXHAUST
PVC/CPVC
MIN 10"
OPTIONAL COUPLING WITH OPTIONAL
1/2" x 1/2" GALVANIZED
SCREEN
(SUPPLIED BY
MANUFACTURER)
INTO THE EXHAUST
END
12" (30 cm) ABOVE
GRADE
OR EXPECTED
SNOW FALL
12" (30 cm) ABOVE
GRADE
OR EXPECTED
SNOW FALL
12" (30 cm) ABOVE
GRADE
OR EXPECTED
SNOW FALL
EXHAUST
INTAKE
MIN. 6" (15 cm) CENTER TO CENTER
OUTSIDE WALL
ABS OR
PVC
90° ELBOW ABS
OR PVC
MUST INSERT 1/2" x 1/2" GALVANIZED
SCREEN
(SUPPLIED BY MANUFACTURER) IN END OF 90°
ELBOW (OPTIONAL)
INTAKE VENT PIPING TO BE SLOPED (DOWN)
TOWARD UNIT TO PREVENT WATER
FROM COLLECTING
OPTIONAL:
LOW PROFILE SIDE WALL
TERMINATION KIT 2” or 3"
MUST BE ULC S636
APPROVED.
OPTIONAL
SCREEN INTO
90° ELBOW
END
MIN. 8" (20 cm)
MAX. 24" (60 cm)
OUTSIDE WALL
INTAKE
EXHAUST
