48" MIN.
CONCENTRIC VENT TERMINATION - PVC MATERIAL ONLY 2” or 3”
WINDOW
OPTIONAL 1/2" x 1/2" GALVANIZED SCREEN
(SUPPLIED BY MANUFACTURER)
INTO THE EXHAUST END
12" (30 CM) ABOVE
HIGHEST EXPECTED
SNOW LEVEL
MIN 12"
CENTER TO CENTER
OUTSIDE WALL
EXHAUST
12" (18" CANADA) ABOVE
HIGHEST EXPECTED
SNOW LEVEL
COMBUSTION
INTAKE AIR
12" MINIMUM

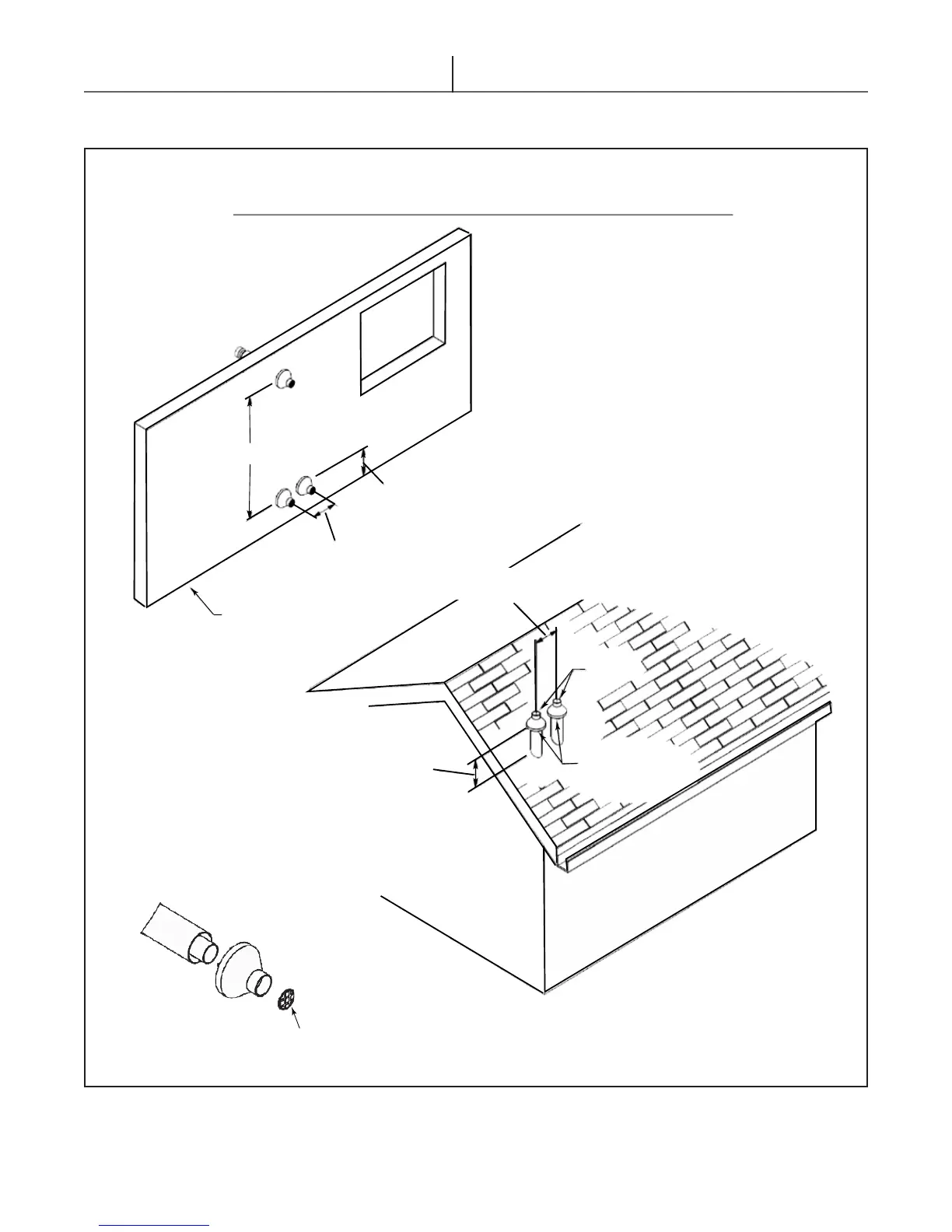

3.10.5 Concentric Vent Termination
