2 Overview of Features
2.1 Intended Use
The JDC1 is for permanent or temporary indoor use. It may be used outdoors if
it is protected from moisture and precautions are taken to prevent damage
from direct sunlight. It may be placed upright on a level surface or suspended
from a suitable structure as described in Section 3.2.
It is not suitable for household use, wherever unattended children have access
to it, or for permanent outdoor installation.
The JDC1 shall be installed, operated, and maintained only by persons with the
training, knowledge and skills to do safely and efficiently.
2.2 Parts Identification
1
fuse holder
6
control panel
2
head
7
AC mains socket
3
alignment pin lever
8
DMX in socket
4
alignment pins
9
tilt lock lever
5
DMX out socket

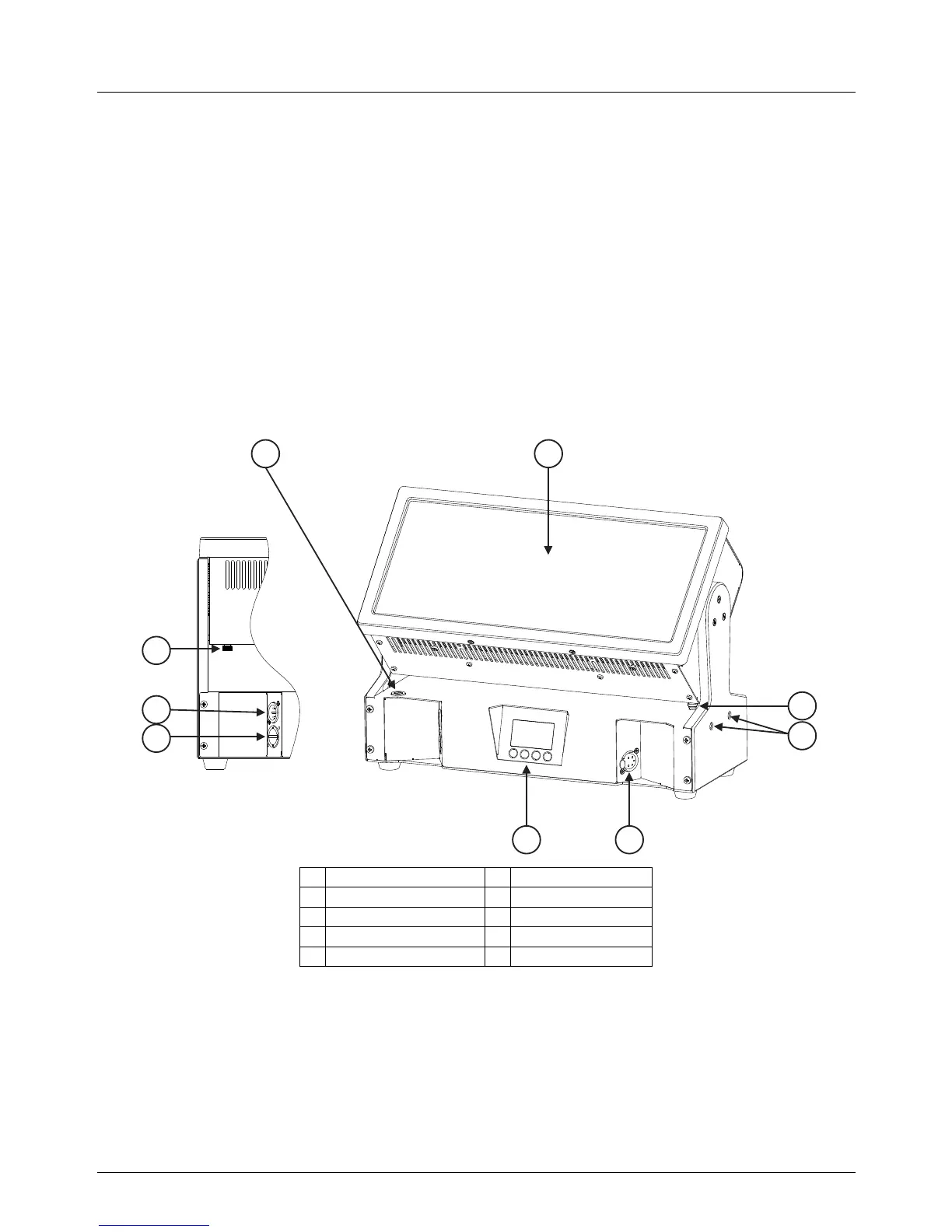

Figure 2-1
2.3 Strobe
The JDC1 provides a traditional single-tube element created with 216 LEDs that
produce an incredibly clear, bright white output. The LEDs flash at up to 16.67 Hz
and can be run continuously for high output blinder and wash effects with an
86° beam angle. Control of the tube is divided into 12 ‘pixel’ segments.
