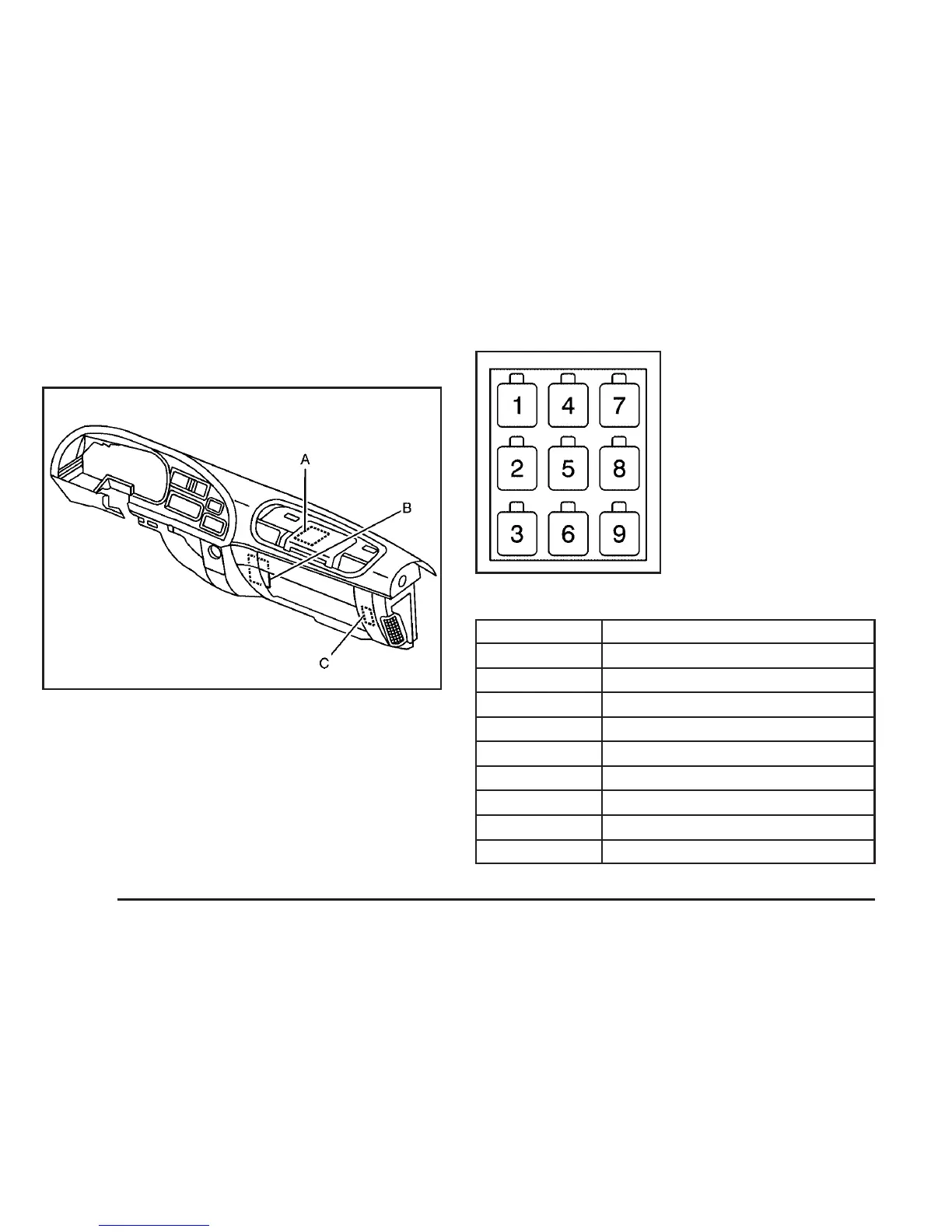

Relay
Center
There
are
four
relay
blocks
in
your
vehicle:
A.
Relay
Block
A
B.
Relay
Block
B
C.
Relay
Block
C
D.
Relay
Block
D
(Not
Shown)
Relay
Block
A
Usage
1
Power
Window
(If
Equipped)
2
Power
Main
(ECU)
3
High
Beam
4
Lighting
5
Lighting
(Low,
High)
6
Trailer
Turn
Signal
(Left
Headlamp)
7
Taillamp
8
Marker
Lamp
(Tractor
Only)
9
Trailer
Turn
Signal
(Right
Headlamp)
Relay
Block
A
282
281
283
