GMP PROTOPIC III-540 - Display Indicators and Job Mode List

HOW TO USE CONTROL PANEL
Job condition, Setting Status and Machine status are shown on the display.
1. Job Mode 6. Job Mode
2. Roller Temp. 7. Counter
3. Paper Bursting Timing 8. Feeding System
4. Paper Length 9. Error Message
5. Roller Speed

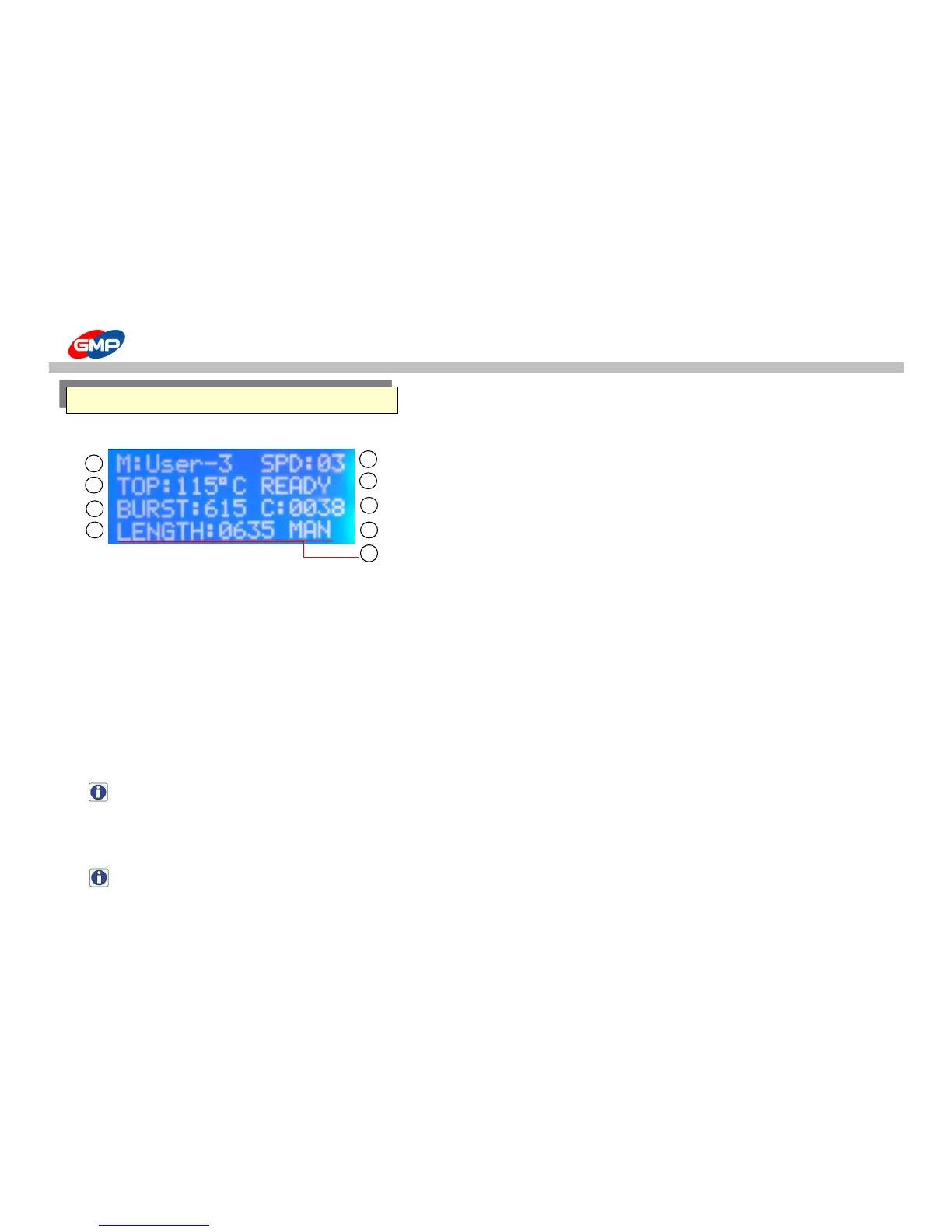

① "M:User-3" - Job Mode Display
To save a setting values that are made by operator for different conditions.
Job mode is composed of the below 13 modes.
JOB MODES
- Poly-L : Lower Temp. for Polynex Film (Set Temp. 100℃)
- MICRO : Micronex Film Lamination (Set Temp. 120℃)
- Poly-H : Higher Temp. for Polynex Film (Set Temp. 120℃) - FOIL-L : Lower Temp. for Foil Film (Set Temp. 115℃)
- Nylon : Nylonex Film Lamination (Set Temp. 115℃) - FOIL-H : Higher Temp. for Foil Film (Set Temp. 125℃)
- PET-L : Lower Temp. for Perfex Film (Set Temp. 100℃)
- User-1 : Operator Set up Mode 1
- PET_H : Higher Temp. for Perfex Film (Set Temp. 120℃)
- User-2 : Operator Set up Mode 2
- FUS-L : Lower Temp. for Sleeking Foil (Set Temp. 125℃)
- User-3 : Operator Set up Mode 3
- FUS_H : Higher Temp. for Sleeking Foil (Set Temp. 135℃)
NOTE : Refer to the "JOB" to check the setting value and how to save.
② "TOP:115℃ - Temp. Display
To display set temp. and current temp. for laminating roller. Set Range is "0~150℃".
☞ How to check the current temp. : While "MASTER DIAL" is pressed, the current temp. is displayed.
NOTE : Refer to the Temp in Explanation of Control Panel to set up.
Explanation of Control Panel (PROTOPICIII-540)
[PROTOPIC III-540]
2
4
8
5
6
7
3
1
9
