HOW TO MOVE & INSTALL
잠김(ON)
풀림(OFF)
☞ Circumstance for Operation of Product
1. The product has to be installed on the hard & even surfaced ground.
2. If inflammables / ignition materials would be nearby the product, this could be a cause of fire.
3. To emit a heat in lamination, the installation place has a good ventilation.

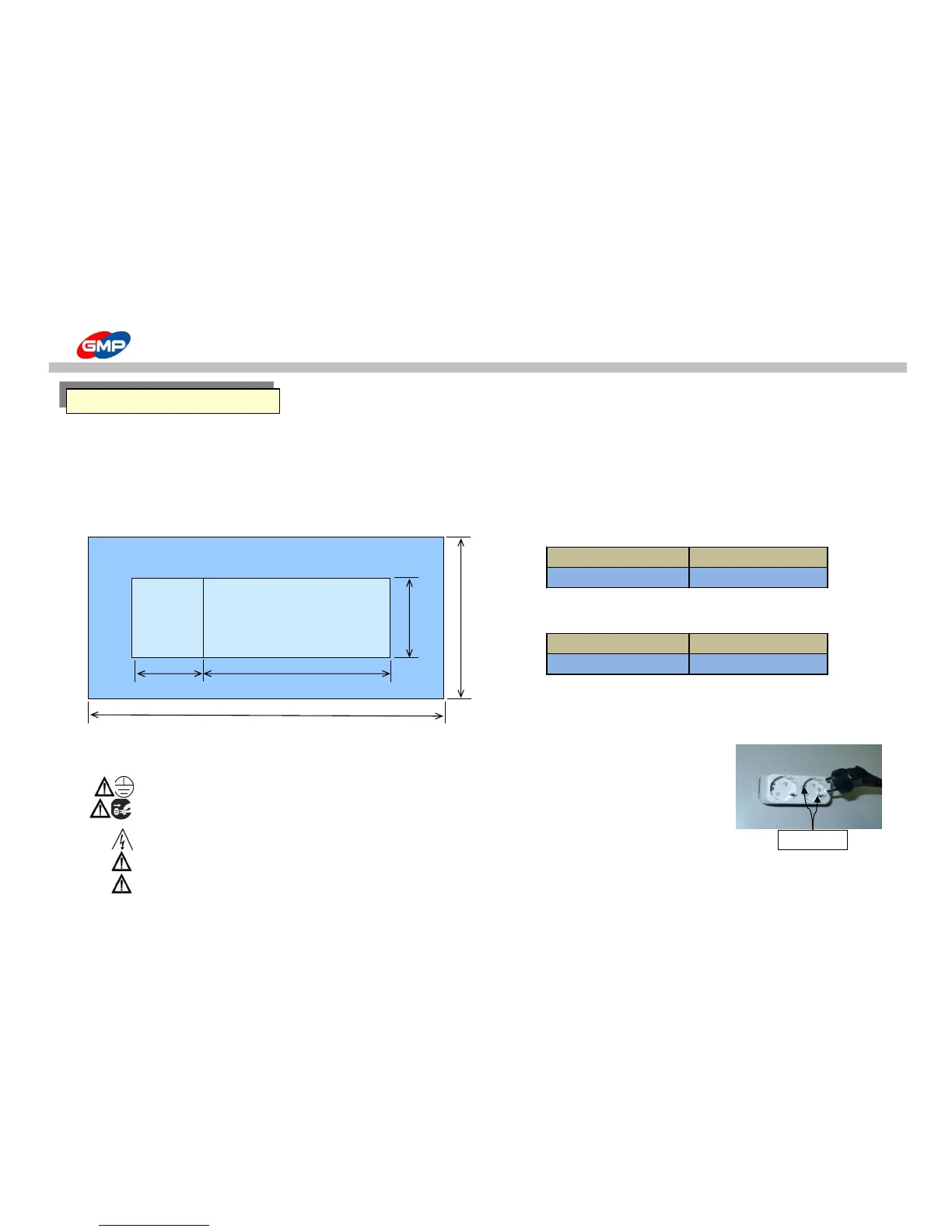

☞ Floor Plan
* PROTOPIC III - 540
- Height including Lami Table : 1340mm
* PROTOPIC III - 540 DUAL
- Height including Lami Table : 1340mm
※ Installation Space is different from its working circumstance.
☞ Power Connection
Power has to be at AC 220~240V/12A / Plug-in at Independent Outlet
WARNING : Grounding is required for safety. Otherwise, this could be a cause of malfunction or electric shock.
WARNING : Do not plug the product with the other devices at 1 outlet at the same time.
Otherwise, this could be a cause of fire by overheat at outlet.
WARNING : Please keep the specification of power / voltage. Otherwise, this will be a cause of fire & electric shock.
WARNING : Inset the power plug inside firmly. Otherwise this will be a cause of fire by overheating at outlet.
WARNING : The socket-outlet shall be installed near the equipement and shall be easily accessible.
Dimension (WxLxH)
Working Space (WxL)
Dimension (WxLxH)
Working Space (WxL)
800*1580*670mm
900*2350
800*1820*670
900*2590
잠김(ON)
풀림(OFF)
LAMINATOR
800
1580 (1820)
2350(2590)
900
Tray
Table
670
Grounding
INSTALLATION
