26
60040-00325 ∙ 00 ∙ 08/2022
Product description GO2 RH3
EN
4 Product description
4.1 Setup
4.1.1 Setup of the entyre system
The manoeuvring system consists of two separate drive
units, each with its own 12V DC motor� These units are
mounted on the frame of the vehicle in the immediate
vicinity of the wheels, and are connected by a lateral
bar
8
2
1
3
4
5
6
7

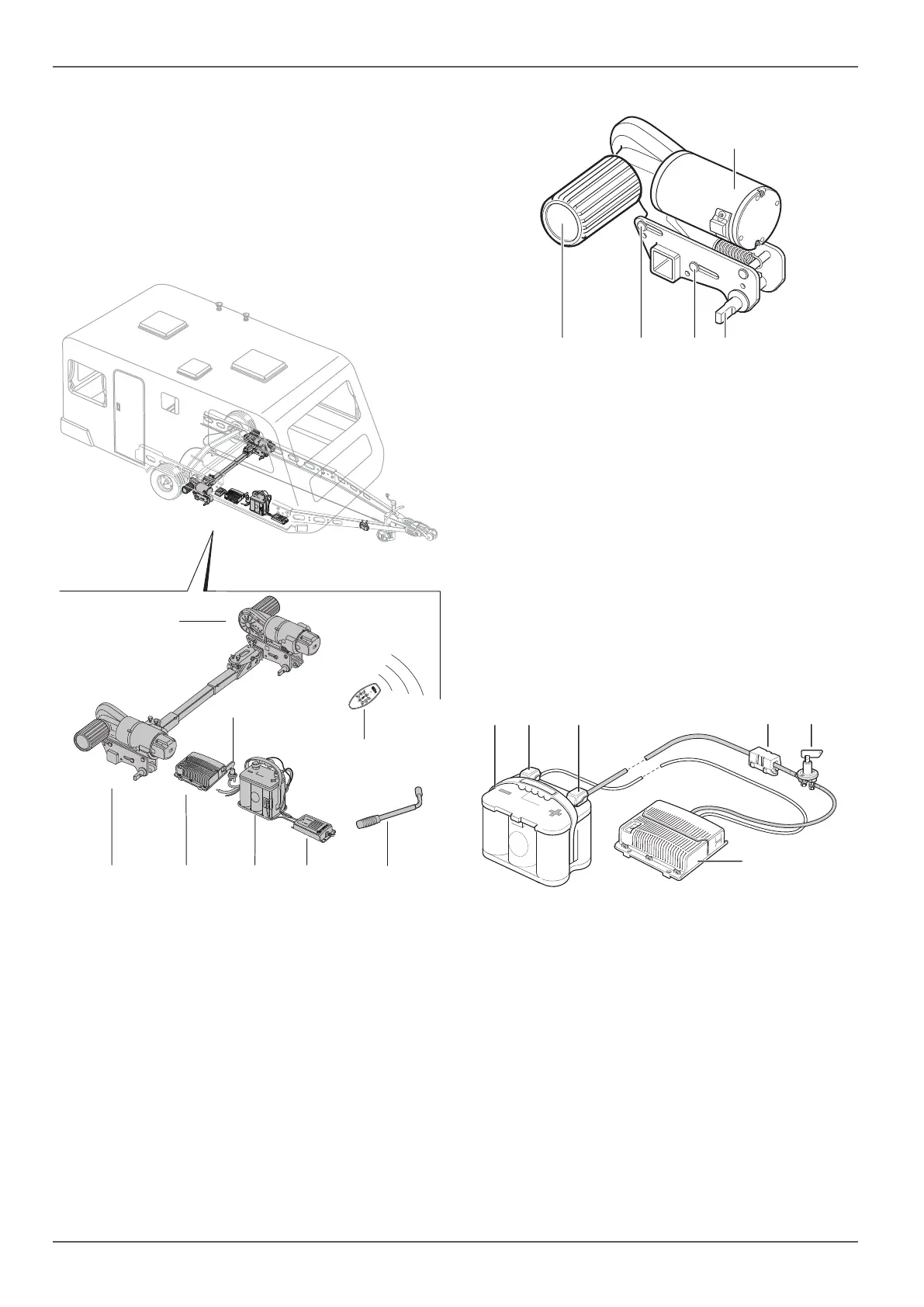

Fig. 1
1 Left drive unit (in the driving direction)
2 Right drive unit (in the driving direction)
3 Control unit (illustration serves as an example)
4 Isolating switch
5 Battery
6 Charger
7 Lever
8 Remote control
4.1.2 Setup of the drive unit
4 3
3 2
1
Fig. 2
1 Electric motor
2 Toggle crank
3 status display Engaging and disengaging
4 Drive roller
4.1.3 Setup of the power supply

WARNING
Fire hazard due to the control unit being co-
vered inside the caravan
If the control unit is inadequately ventilated, it
may overheat during operation�

Adequately ventilate the control unit�

Do not cover the control unit�
Drawing serves as an example (Mover XT control
unit)
1 52 3
6
4
Fig. 3
1 Battery
2 Negative terminal
3 Positive terminal
4 Fuse
5 Isolating switch
6 Remote control
