Page 11

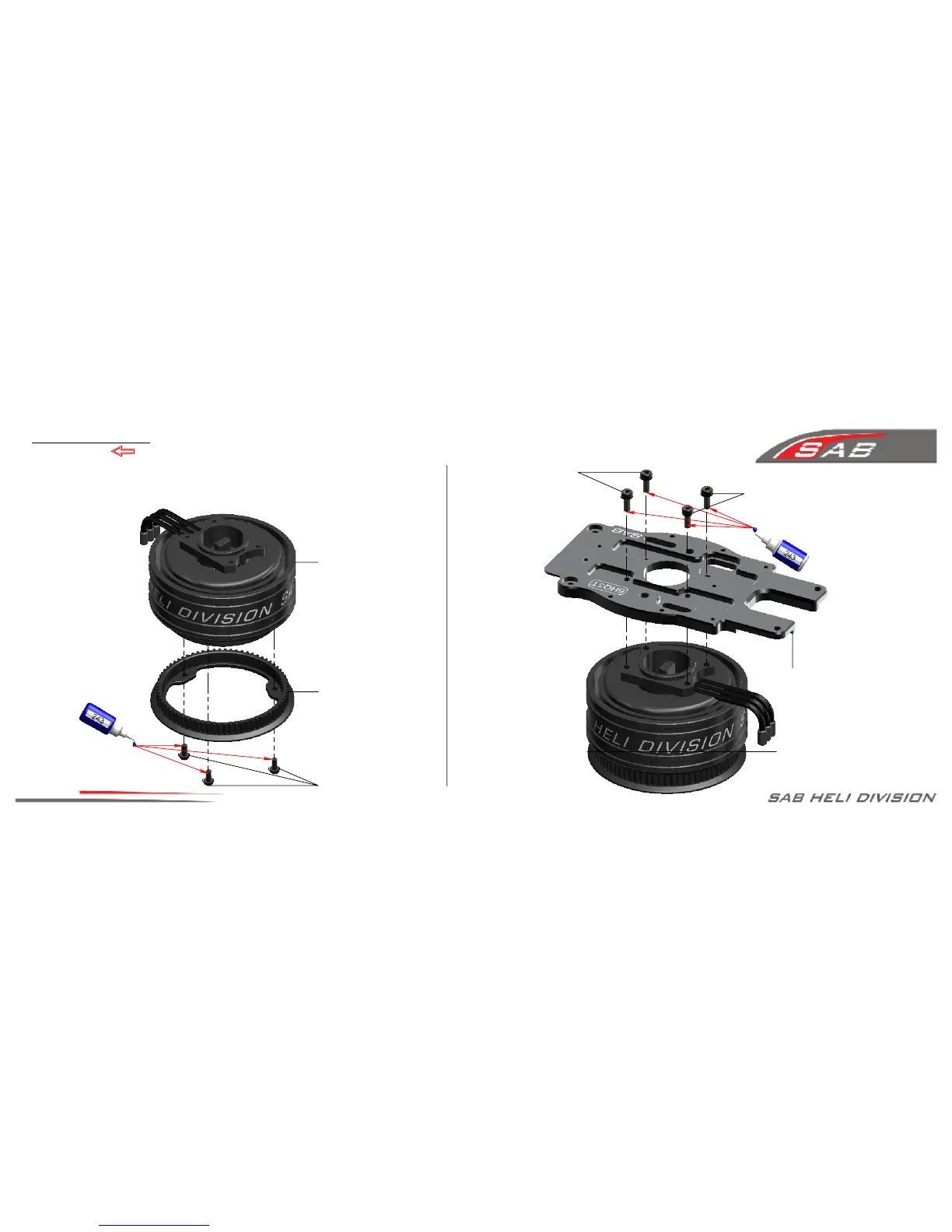

Chapter 7, Motor Assembly
SAB Motor
(HE014-S)
Motor Pulley 76T
(H0820-S)
Button Head Cap
Screw M2x4mm
(HC001-S)
Motor Assembly
Socket Head Cap
Screw M2x5mm
(HC002-S)
Motor
Assembly
Main Plate
(H0838-S)
Socket Head Cap
Screw M2x5mm
(HC002-S)
BAG 5.1, BAG 5.2
Before installing the motor, securely solder the connectors in place.
(Connectors are included in the COMBO kit SG281 ).
