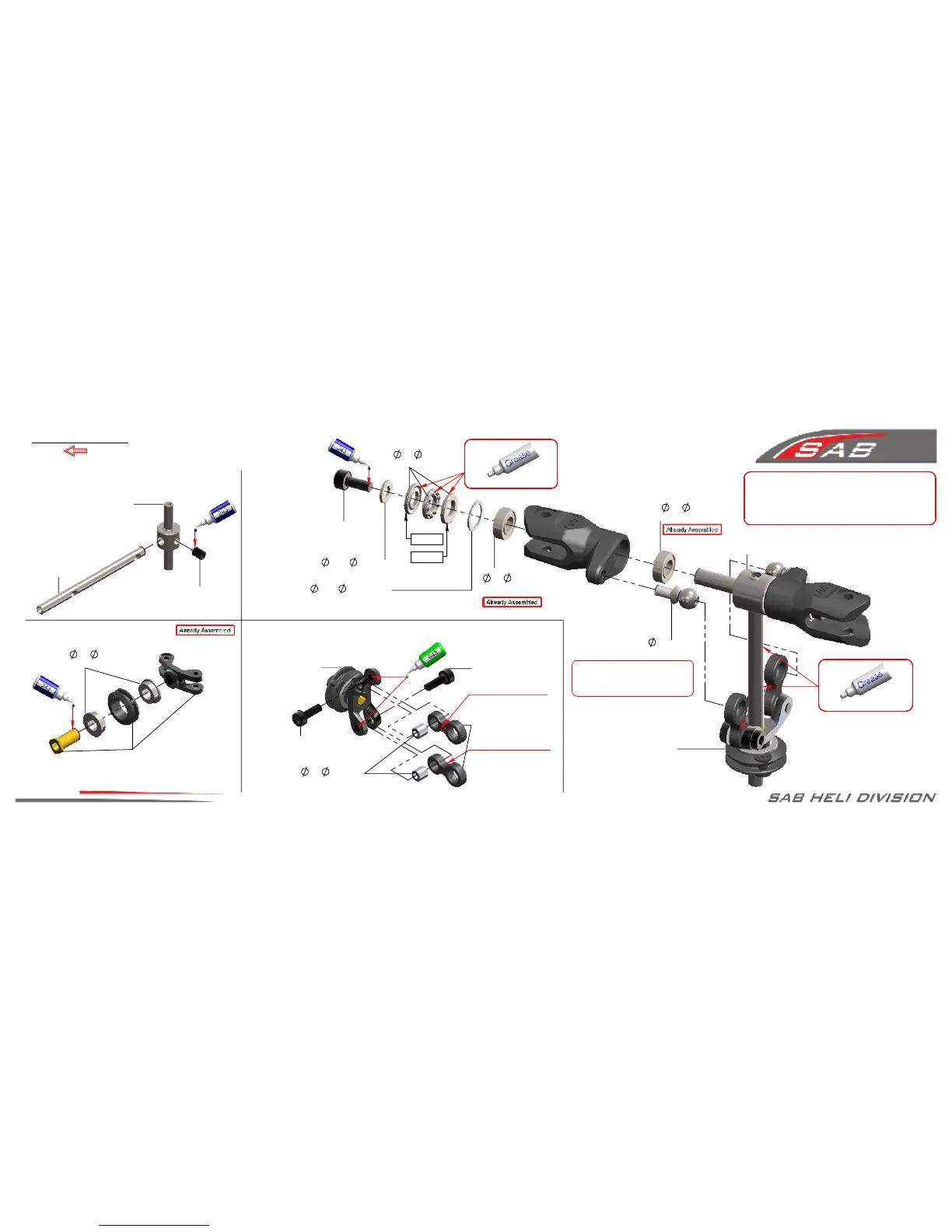

Goblin FIREBALL - Tail Rotor Hub Assembly; Tail Pitch Slider Assembly; Tail Pitch Slider Link Assembly

Small ID
Large ID
Note: S >> Left Side
Note: S >> right Side
Page 7
Chapter 5, Tail System
Tail Rotor Hub Assembly
Tail Shaft
(H0842-S)
Tail Hub
(H0771-S)
Set Screw M3x4mm
(HC500-S)
Tail Pitch Slider
(H0775-S)
Flanged Bearing
4x 7x2.5mm
(HC486-S)
Tail Pitch Slider Assembly
Socket Head Cap
Screw M2x5mm
(HC002-S)
Washer
2.5x 4.5x0.5mm
(H0566-S)
Thrust Bearing
3x 6x2,8mm
(HC448-S)
Shim
4.5x 5.9x0.3mm
[H0794]
Ball Bearing
3x 6x2mm
(HC487-S)
Ball Bearing
3x 6x2mm
(HC487-S)
Uniball M2x
4xH3
(H0789-S)
Tail Rotor Hub
Assembly
eg: Microlube GL261
Tail Pitch Slider Link
Assembly
Tail Pitch Slider Link Assembly
Tail Pitch Slider
Assembly
Socket Head Cap
Screw M2x6mm
(HC004-S)
Uniball Arm
(H0777-S)
Bushing
2x 3 x 3mm
[H0076]
Socket Head Cap
Screw M2x6mm
(HC004-S)
Note:
It is a normal for the tail to feel tight after
initial assembly. After 2-5 flights, the tail
system will loosen and feel much smoother.
eg: Microlube GL261
BAG 2
Note: Do not over tighten,
be careful to avoid stripping
the plastic .
