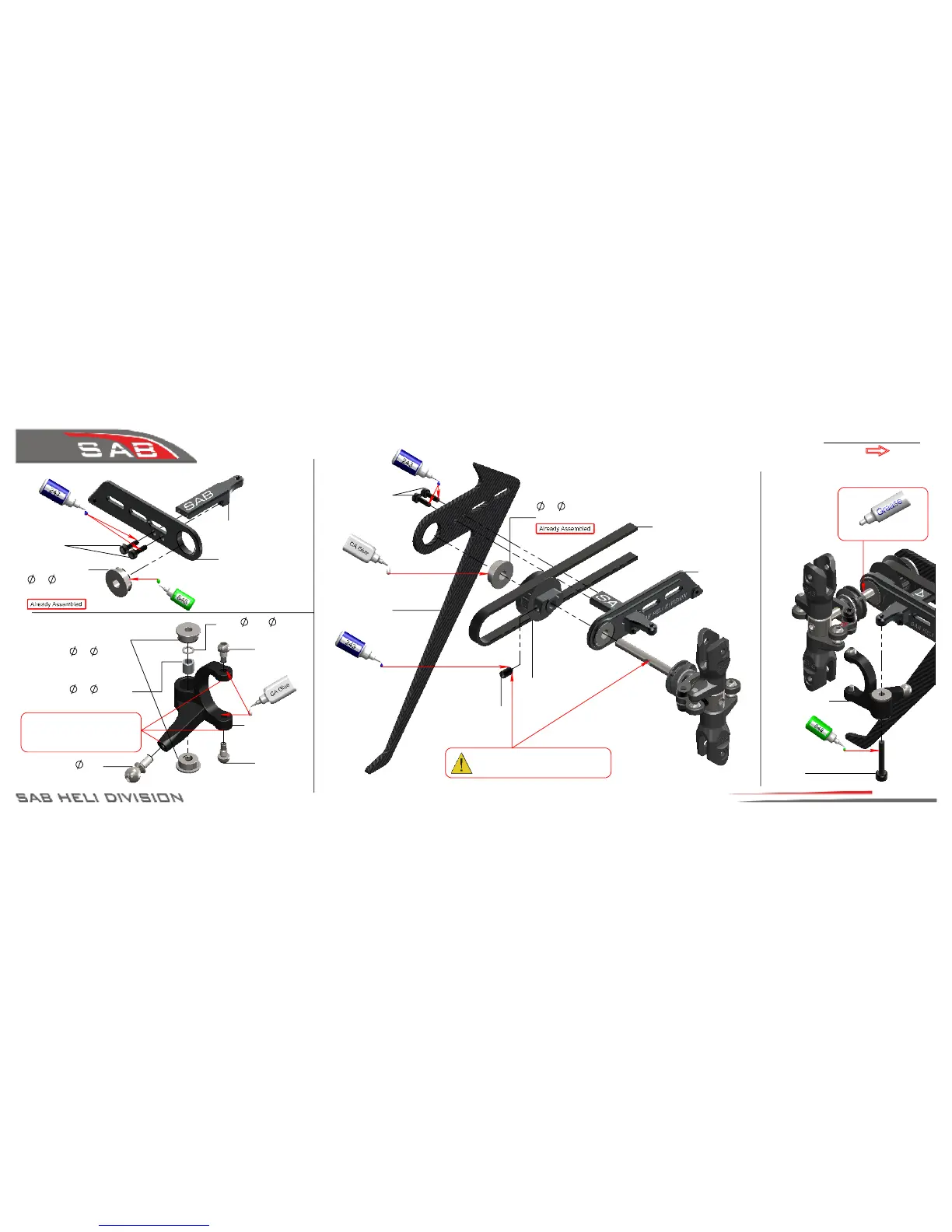

Goblin FIREBALL - Tail Side Plate Assembly; Bell Crank Lever Assembly

Tail Fin
(H0791-S)
Tail Pulley
(H0782-19-S)
Set Screw
M2.5x4mm
(HC499-S)
Socket Head Cap
Screw M2x12mm
(HC014-S)
Note: The set screw should align
with the hole in the tail shaft.
Tail Belt HTD 2M 850
(HC491-S)
Tail System Assembly
Page 8
Chapter 5, Tail System
Tail Plate
(H0780-S)
Bell Crank Support
(H0778-S)
Uniball M2x
4xH3
(H0789-S)
Flanged Bearing
3x 8x3mm
(HC485-S)
Flanged Bearing
2x 5x2.5
(HC456-S)
Bell Crank Lever
(H0797-S)
Bushing
2x 3 x 3mm
[H0076]
Socket Head Cap
Screw M1.6x5mm
(HC497-S)
Tail Side Plate Assembly
Bell Crank Lever Assembly
Tail Side Plate
Assembly
Bell Crank Lever
Assembly
Socket Head Cap
Screw M1.6x5mm
(HC497-S)
Flanged Bearing
3x 8x3mm
(HC485-S)
BAG 3
Note: Do not over tighten,
be careful to avoid stripping
the plastic .
Tail Pin
(H0781-S)
Tail Pin
(H0781-S)
eg: Microlube GL261
Shims
2.1x 3.6x0.2
[HC508]
