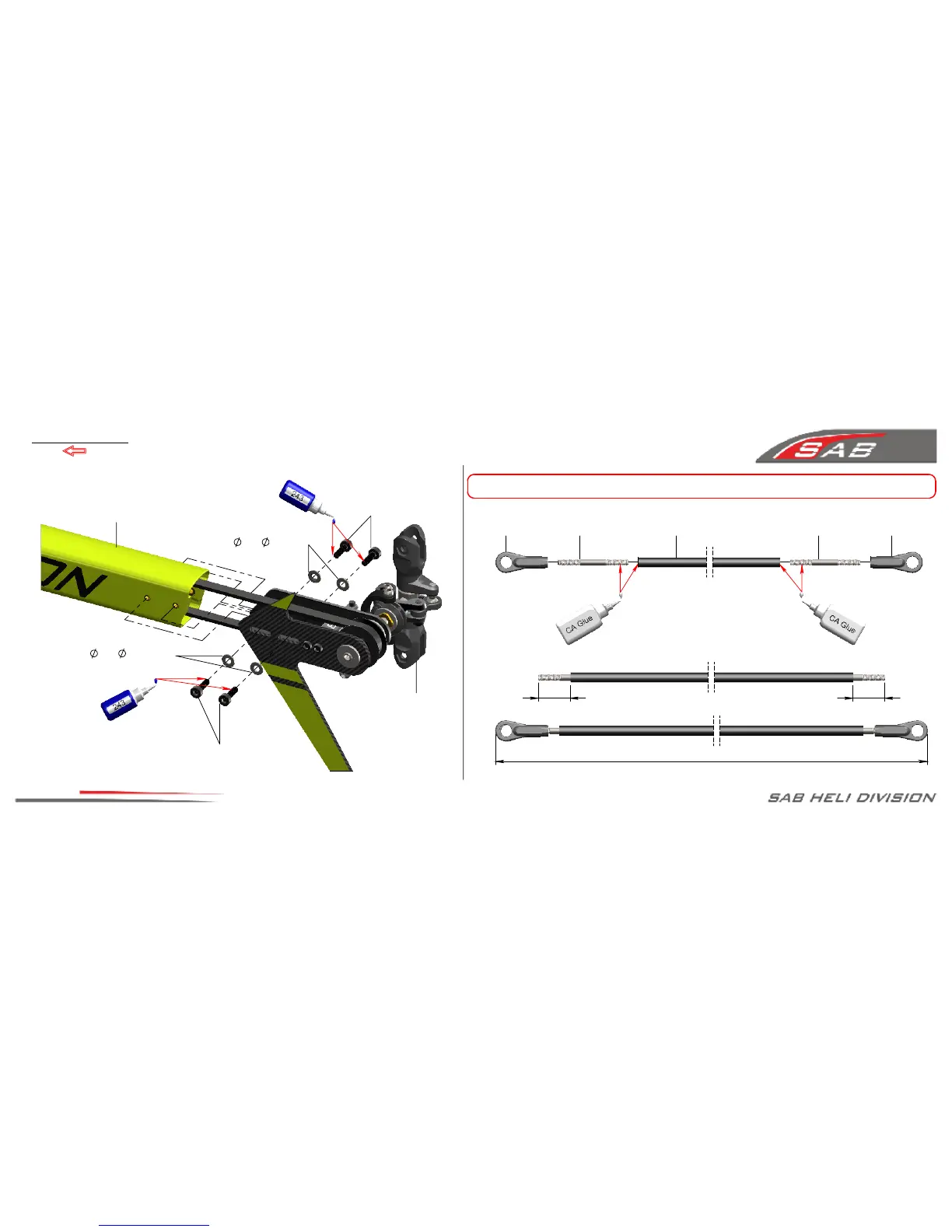

Goblin FIREBALL - Chapter 5, Tail System; Tail System Assembly

10mm 10mm
Aprox 316mm
Page 9
Chapter 5, Tail System
Tail System
Assembly
Socket Head Cap
Screw M2x6mm
(HC004-S)
Socket Head Cap
Screw M2x6mm
(HC004-S)
Washer
2.5x 4.5 x 0.5mm
[H0566]
Washer
2.5x 4.5 x 0.5mm
[H0566]
Yellow Tail Boom
(H0818-S)
Note: Please allow plenty of time for the glue to cure before inserting the plastic ball link onto the threaded rod.
Uniball Arm
(H0779-S)
Linkage M2x22mm
[H0561]
Carbon Rod 1.8x3x276mm
(HC489-S)
Linkage M2x22mm
[H0561]
Uniball Arm
(H0779-S)
BAG 4
