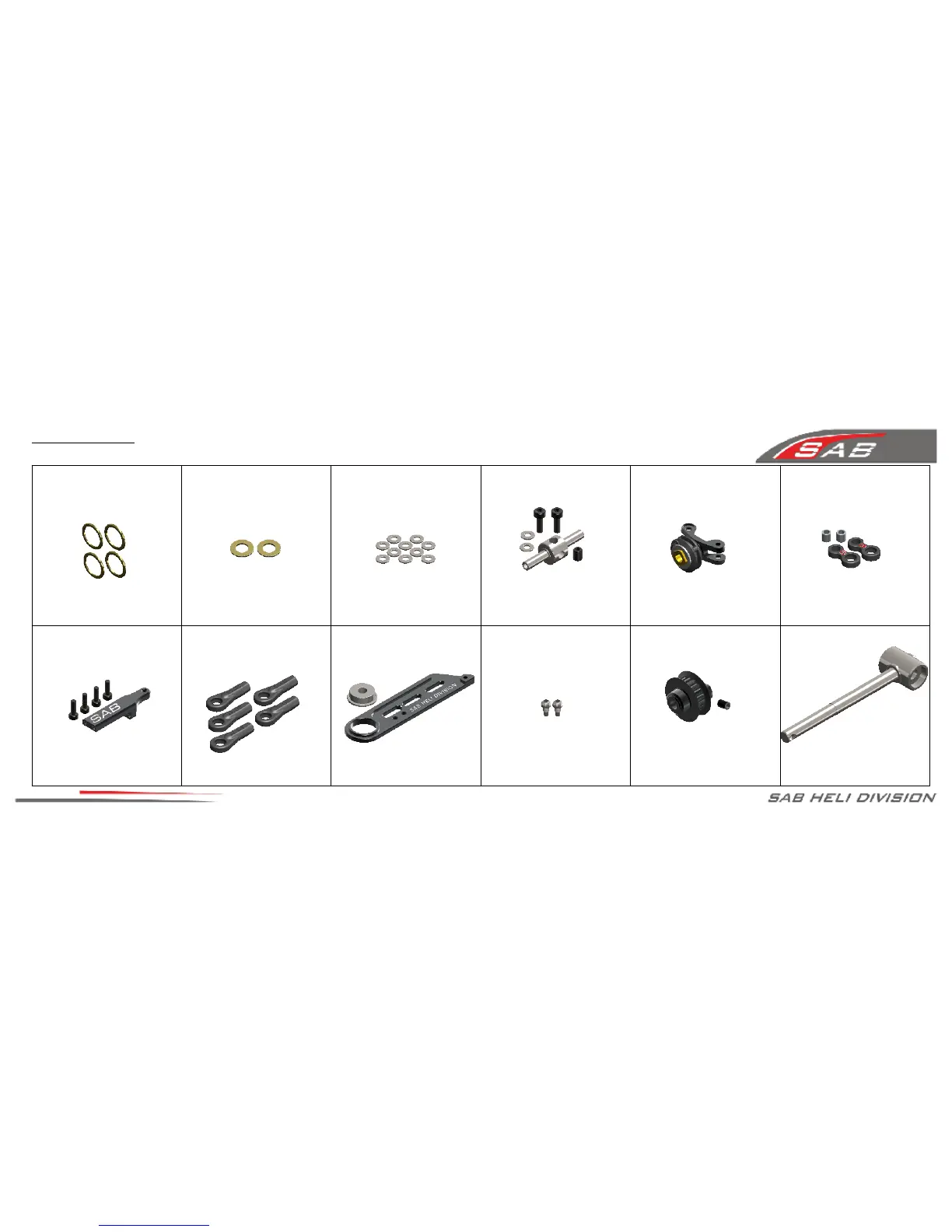

Goblin FIREBALL - Chapter 19, Spare Parts

Page 25
Chapter 19, Spare Parts
Washer Ø7 x Ø8,7 x 0.5mm
(H0062-S)
Spacer Ø4 x Ø6,9 x 0,4mm
(H0219-S)
Washer Ø2.5xØ4.5 x 0.5mm
(H0566-S)
Tail Hub
(H0771-S)
Tail Pitch Slider
(H0775-S)
Tail Arm
(H0777-S)
Bell Crank Support
(H0778-S)
Plastic Ball Link
(H0779-S)
Tail Side Plate
(H0780-S)
Tail Pin
(H0781-S)
Tail Pulley 19T
(H0782-19-S)
Main Shaft
(H0784-S)
- 4 x Washer Ø7 x Ø8,7 x 0.5mm. - 2 x Spacer Ø4 x Ø6,9 x 0,4mm. - 10 x Washer Ø2.5xØ4.5 x 0.5mm.
- 1 x Tail Hub.
- 2 x Washer Ø2.5xØ4.5 x 0.5mm.
- 2 x Socket Head Screw M2x5mm.
- 1 x Set Screw M3x4mm. - 1 x Tail Pitch Slider Assembled.
- 2 x Tail Arm.
- 2 x Bushing Ø2 x Ø3 x 3mm.
- 1 x Bell Crank Support.
- 4 x Socket Head Cap M1.6x5mm. - 5 x Uniball Arm.
- 1 x Tail Plate.
- 1 x Flanged Bearing Ø3xØ8x3mm. - 2 x Tail Pin.
- 1 x Tail Pulley 19T Assembled.
- 1 x Set Screw M2.5x4mm.
- 1 x Main Shaft.
- 1 x Main Hub.
