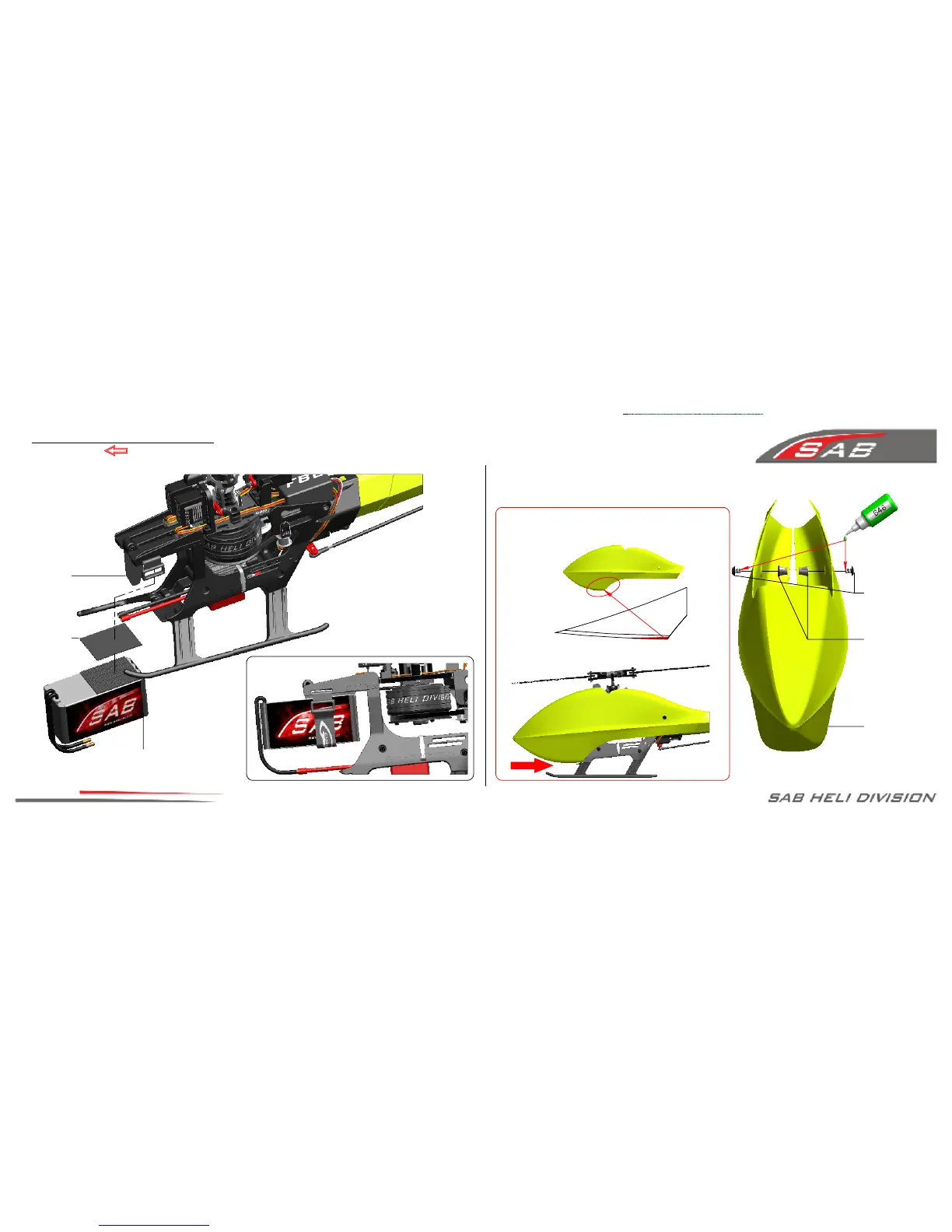

Chapter 15, Battery and Canopy Assembly
Strap 205x16mm
(HA044-S)
SAB Velcro
(HA045-S)
SAB Battery
6S 1050mAh [SB128]
6S 1250mAh [SB129]
Using sandpaper, You need to remove the edges on
the connection zone betwen the canopy and the frames.
Follow the pictures.
Button Head Cap
Screw M3x4mm
(HC038-S)
Canopy Positioner
(H0844-S)
Yellow Canopy
(H0831-S)
BAG 11, BAG 12
CANOPY
Tighten the 2 screws with little torque.
Use green loctite and lean slightly without pressure.
Push firmly the canopy to the frames to get
the correct locking position.
