Goblin FIREBALL - Chapter 10, Installation of Tail Belt Tensioner; Left Tail Belt Tensioner Assembly; Right Tail Belt Tensioner Assembly

Page 14

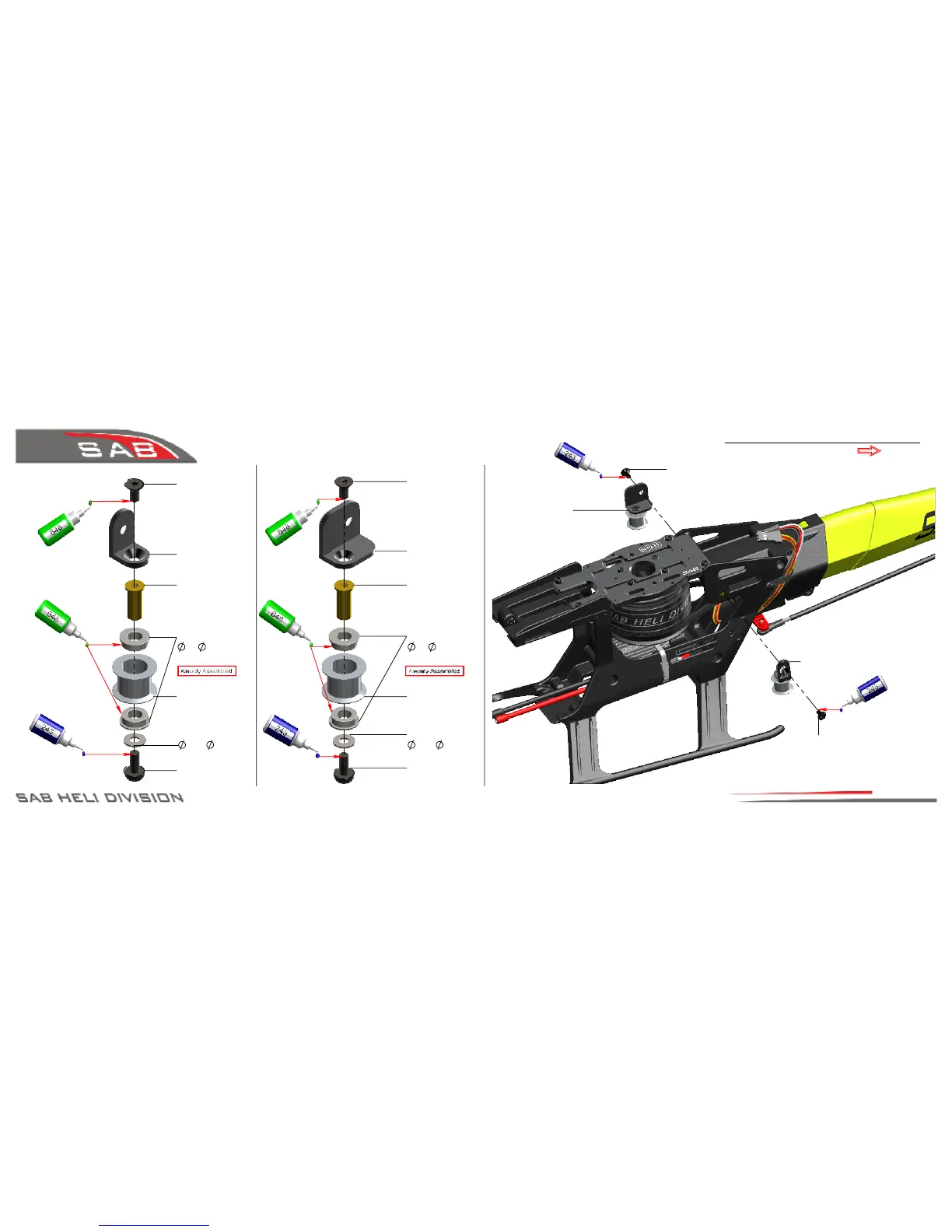

Chapter 10, Installation of Tail Belt Tensioner
Tail Belt Tensioner
Left Tail Belt
Tensioner Support
(H0870-S)
Column Tail
Belt Tensioner
Flanged Bearing
4x 7x2.5mm
(HC486-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Socket Head Cap
Screw M2.5x6mm
(HC019-S)
Left Tail Belt Tensioner Assembly ( H0870-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Right Tail Belt
Tensioner Assembly
Left Tail Belt
Tensioner Assembly
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
BAG 5.5
Socket Head Cap
Screw M2.5x6mm
(HC019-S)
Tail Belt Tensioner
Flanged Bearing
4x 7x2.5mm
(HC486-S)
Column Tail
Belt Tensioner
Right Tail Belt
Tensioner Support
(H0899-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Right Tail Belt Tensioner Assembly ( H0899-S)
Washer
2,6x 6x0,5mm
Washer
2,6x 6x0,5mm
