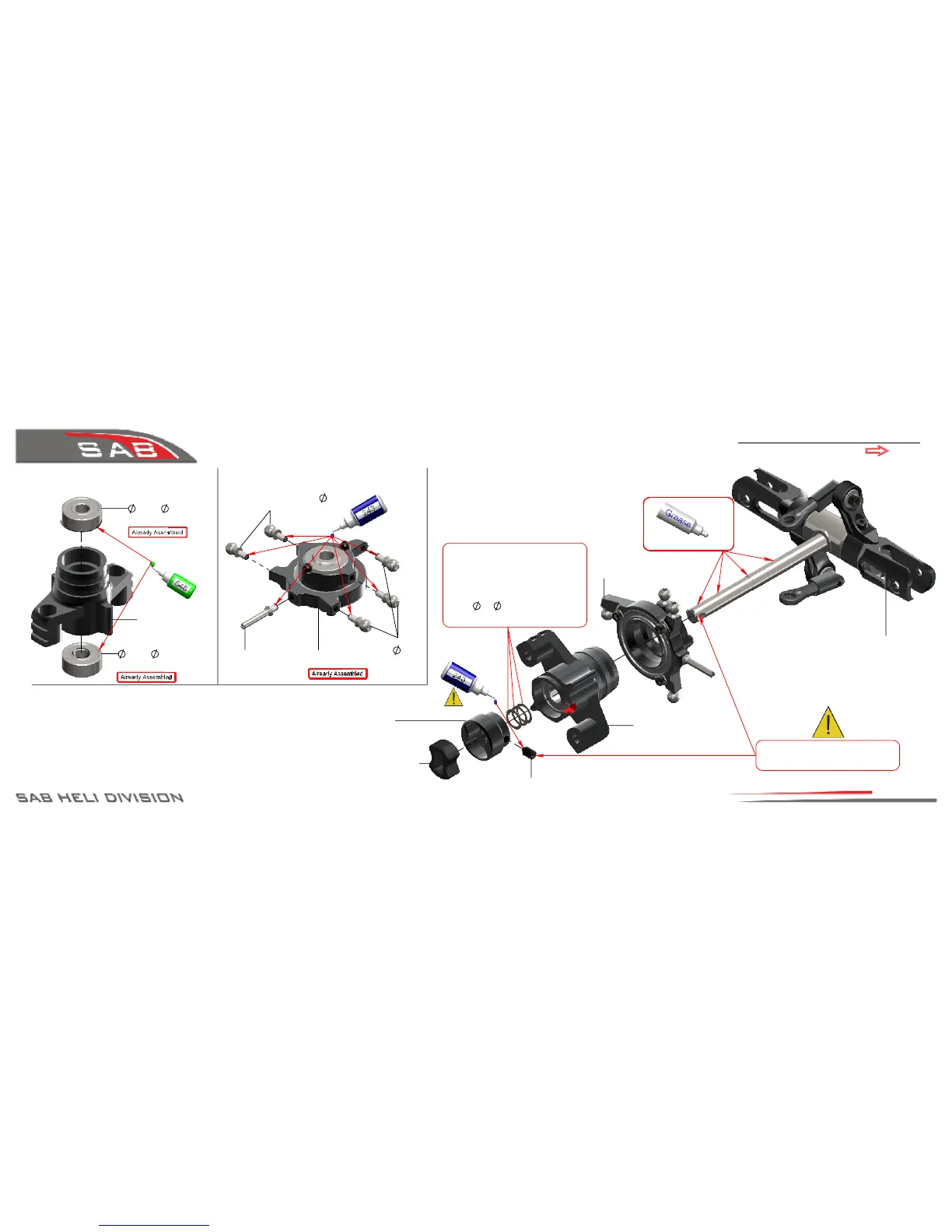

Bearing Support
Assembly
Swashplate
Assembly
Page 18
Chapter 13, Assembly of the Main Module
Bearing Support
(H0837-S)
Ball Bearing
4.77x
12.7x4.99
(HC488-S)
Ball Bearing
4.77x
12.7x4.99
(HC488-S)
Bearing Support Assembly
Swashplate Assembly
Uniball
M2x
4xH3
(H0789-S)
Uniball M2x
4xH3
(H0789-S)
Reference pin
(Included in H0789-S)
Swashplate
(H0788-S)
eg: Microlube GL261
Main Rotor
Assembly
Start by adding 3 shims to
remove any Axial main shaft play.
Check that all play has been
removed, if required add or
remove shims.
Shim
5x
7x0.1mm
(HC450-S)
Set Screw M3x4mm
(HC500-S)
Feeder
(H0839-S)
Feeder Damper
(Included in H0839-S)
Press inside
Note:
The set screw should align
with the hole in the main shaft.
BAG 8
To Next Page
