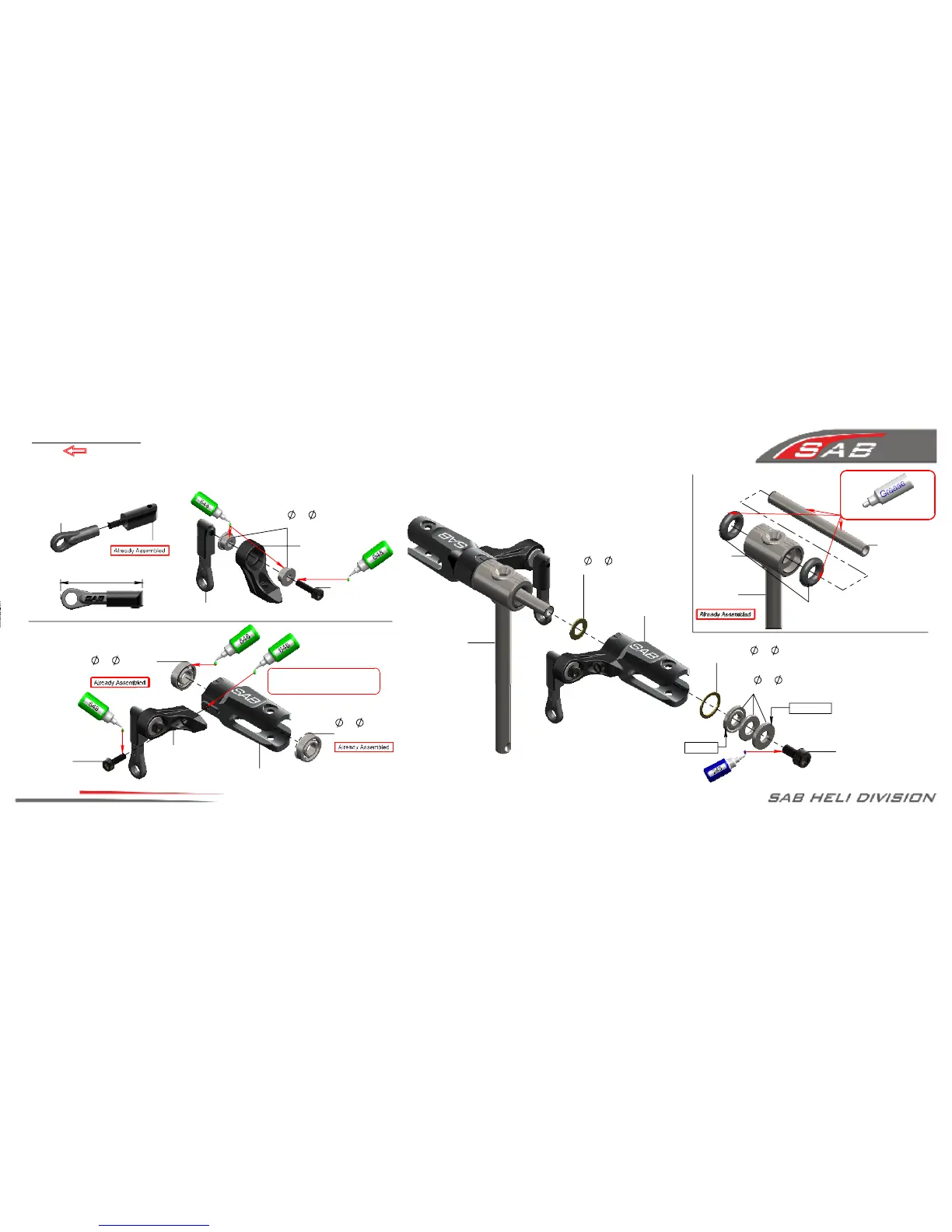

Goblin FIREBALL - Chapter 12, Head System; Blade Arm Assembly; Blade Grip Assembly; Main Rotor Assembly

Aprox 25.5mm
Smaller ID
Large ID
Page 17
Chapter 12, Head System
Flanged Bearing
2x 5x2.5mm
(HC456-S)
Blade Grip Arm
(H0795-S)
Socket Head Cap
Screw M2x5mm
(HC002-S)
Blade Grip Arm
Assembly
Bearing
4x 9x2.5mm
(HC403-S)
Blade Grip
(H0785-S)
Bearing
4x 9x2.5
(HC403-S)
Blade Grip Assembly .....x2
Main Shaft
(H0784-S)
Main Hub
Oring 70 Shore
(HC501-S)
Main Spindle
(H0792-S)
Center Hub Assembly
Blade Arm Assembly ( H0795-S ) ....x2
DFC Arm
Uniball Arm
(H0779-S)
Socket Head Cap
Screw M3x6mm
(HC044-S)
Thrust Bearing
4x 9x4mm
(HC434-S)
Washer
7x 8,7 x 0.5mm
[H0062]
Socket Head Cap
Screw M2x8mm
(HC008-S)
Center Hub
Assembly
Blade Grip
Assembly
eg: Microlube GL261
Main Rotor Assembly
Spacer
4x 6,9x0,4mm
(H0219-S)
DFC Arm
Assembly
BAG 7
Add some green retaining
compount in this zone
