14
8. Esc Qnnn
Function : Set Top-of-form length for label paper or black-mark paper
Parameter : nnn = Q value

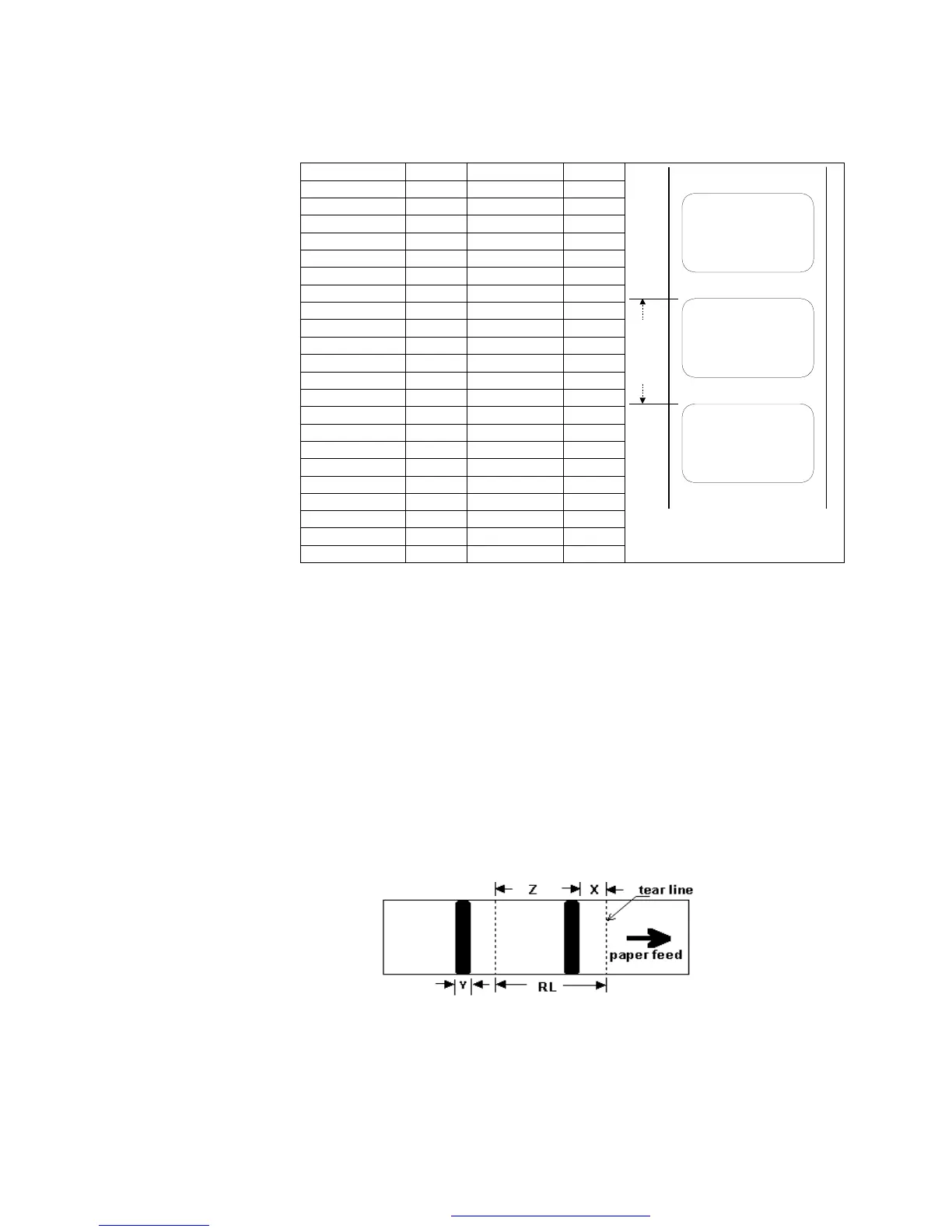

LABEL PAPER:
Label Height Q Value Label Height Q Value
6 mm Q=004 28 mm Q=160
7 mm Q=048 29 mm Q=152
8 mm Q=004 30 mm Q=144
9 mm Q=024 31 mm Q=136
10 mm Q=064 32 mm Q=128
11 mm Q=032 33 mm Q=120
12 mm Q=004 34 mm Q=112
13 mm Q=072 35 mm Q=104
14 mm Q=048 36 mm Q=096
15 mm Q=024 37 mm Q=088
16 mm Q=004 38 mm Q=080
17 mm Q=112 39 mm Q=072
18 mm Q=096 40 mm Q=064
19 mm Q=080 41 mm Q=056
20 mm Q=064 42 mm Q=048
21 mm Q=048 43 mm Q=040
22 mm Q=032 44 mm Q=032
23 mm Q=016 45 mm Q=024
24 mm Q=004 46 mm Q=016
25 mm Q=184 47 mm Q=008
26 mm Q=176 48 mm Q=004
27 mm Q=168 >=49 mm Q=384
Label height
BLACK-MARK PAPER:
The width of black strip of the black mark paper must be greater than 4 mm.
The description of the symbols on the drawings--
Z = distance between tear line and the edge of black strip against paper feed direction (in mm).
X = distance between tear line and the edge of black strip from paper feed direction (in mm)
Y = width of black strip (in mm)
RL= distance between two tear lines (your label size length in mm)
Formula A : Q=(46-X-(INT((46-X)/RL)*RL))*8
Use for X< 46 mm and tear line is outside of black strip
INT : integer ; if Q <= 0, set Q=004
Example:
RL= 26 mm and X= 6 mm
Q=(46-6-(INT((46-6)/26)*26)*8
Q=(46-6-(INT((40/26)*26)*8
Q=(46-6-(1*26))*8
Q=(46-6-26)*8
Q=14*8
Q=112
