Formula B : Q= (46+Z-(INT((46-Y+Z)/RL)*RL))*8

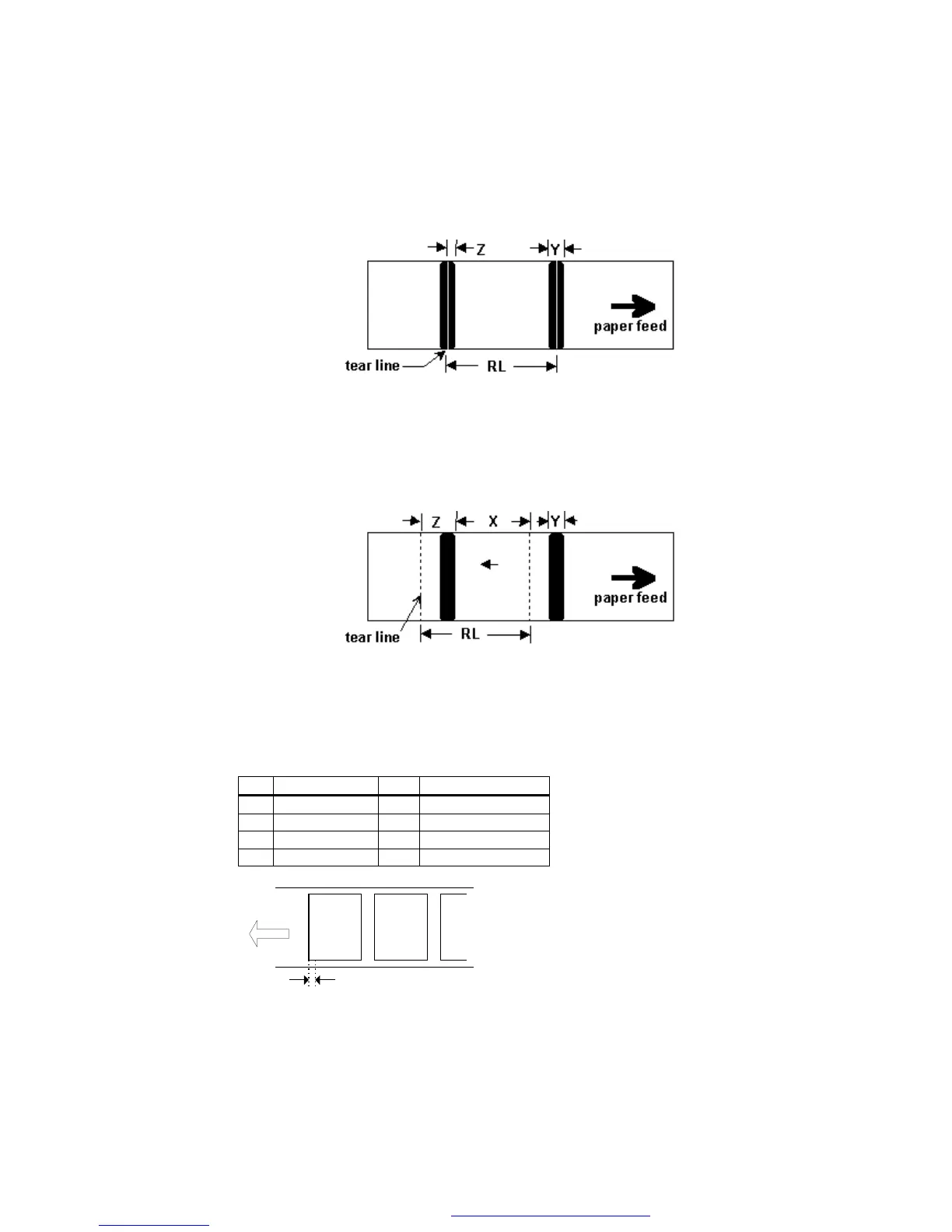

Use for tear line is inside of black strip or X> 46 mm
Example (1) tear line is inside of black strip
RL=26 mm , Z= 4 mm and Y= 6 mm
Q=(46+4-(INT((46-6+4)/26)*26))*8
Q=(46+4-(INT(44/26)*26))*8
Q=(46+4-(1*26))*8
Q=(46+4-26)*8
Q=24*8
Q=192
Example (2) X> 46 mm
RL=60 mm, Z= 7 mm and Y= 4 mm (X=53mm>46mm)
Q=(46+7-(INT((46-4+7)/60)*60))*8
Q=(46+7-(INT((49)/60)*60))8*
Q=(46+7-(0*60))*8
Q=(46+7-0)*8
Q=53*8
Q=424
9. Esc qnnn
Function : Set Top-of-form length in millimeters.( Included label gap)
Parameter : nnn = label height
Example :
←q027 (Label length is 25 mm, label gap is 2 mm, so control code is 027.)
10. Esc an
Function : Micro position adjustment.
Parameter : n = 0~7
n Value (dot) n Value (dot)
0 0 4 8
1 2 5 10
2 4 6 12
3 6 7 14
Example :
←a3 (Printing start position will be 6 dots from edge of label)
LABEL
PAPER
OUT
edge of label printing start position
6 dots
11. Esc fnn
Function : Forward label.
Parameter : nn = 01~29 millimeters (The distance from print head line to label tear bar is 24 mm.)
12. Esc Rnn
Function : Back up label.
Parameter : nn = 01~29 millimeters
13. Esc Sn
