Load The Ribbon On The Printer
For Ribbon Supply Module
RIBBON SUPPLY MODULE

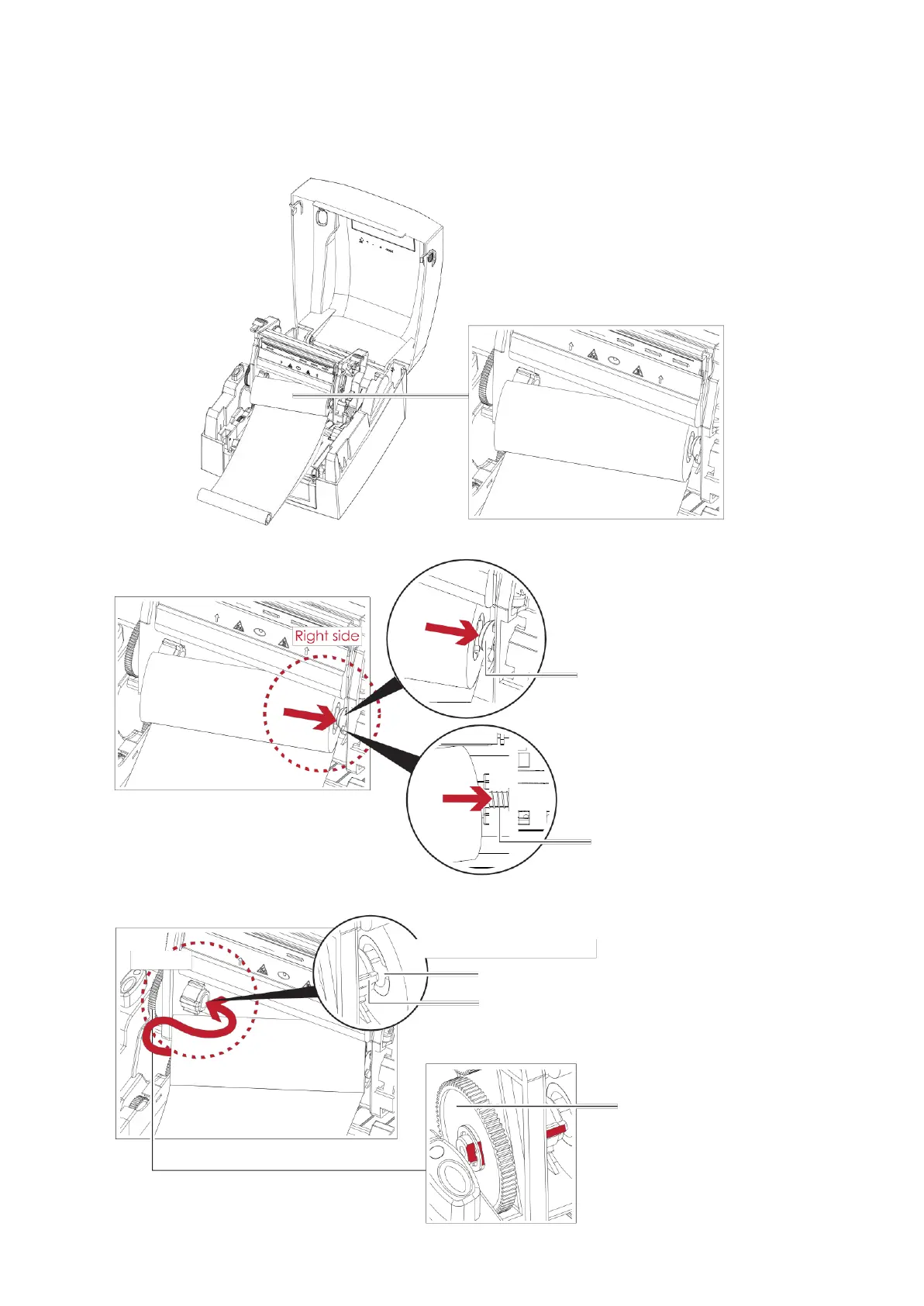

1. Place the right-hand side of ribbon first.
Align the ribbon core
to the holder
HOLDER
Push the ribbon to tighten
the spring of the holder
SPRING OF HOLDER
2. Then place the left-hand side of the ribbon.
Left side
Align the notch of the ribbon core to the spoke
NOTCH OF RIBBON CORE
SPOKE
GEAR
Rotate the gear for alignment
if necessary
To Next Page
