Godex RT700 SERIES Service Manual

12

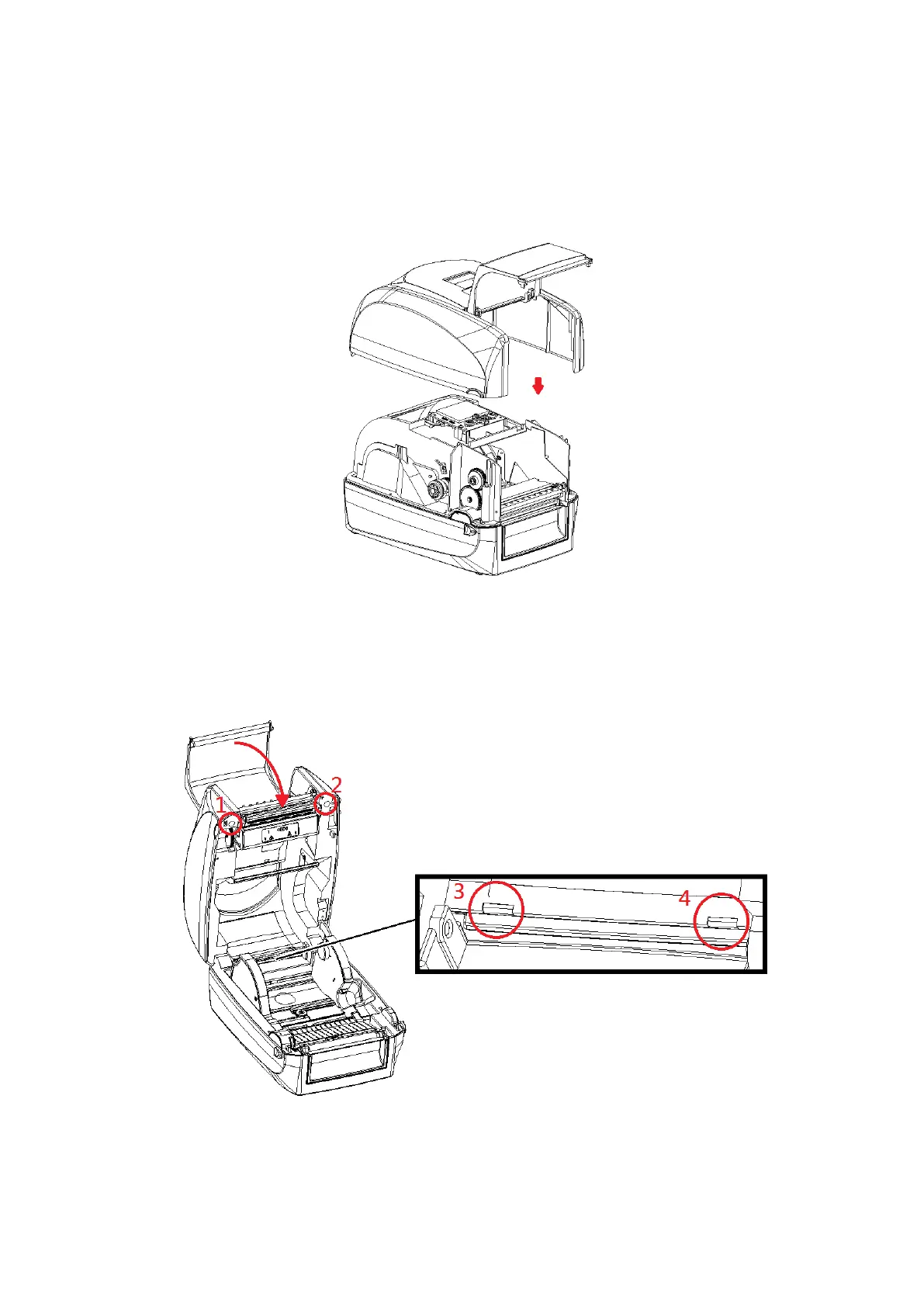

3-1-2 Assemble Top Cover
Step 1. Assemble Top Cover
Assemble Top Cover in the direction of the arrow.
Step 2. Close the ribbon window cover
Tighten the screws (see red circles 1&2) and insert the latches(see red circles 3&4) on the both sides of the top
cover into the machine. Close the ribbon window cover in the direction of the arrow.

Godex RT700 SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Max Print Speed	5 ips
Max Print Length	1727 mm (68")
Processor	32-bit RISC
Interface	USB, Serial, Ethernet
Media Type	Continuous, Die-cut, Fan-fold
Media Width	25.4 mm - 118 mm (1" - 4.64")
Media Thickness	0.06 mm - 0.25 mm
Media Roll Diameter	127 mm (5")
Ribbon Width	30 mm - 110 mm (1.18" - 4.33")
Power	100-240V AC, 50/60Hz
Dimensions	285 mm (L) x 210 mm (W) x 171 mm (H)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
