Godex RT700 SERIES Service Manual

13
3-2 Base
3-2-1 Disassemble the Base

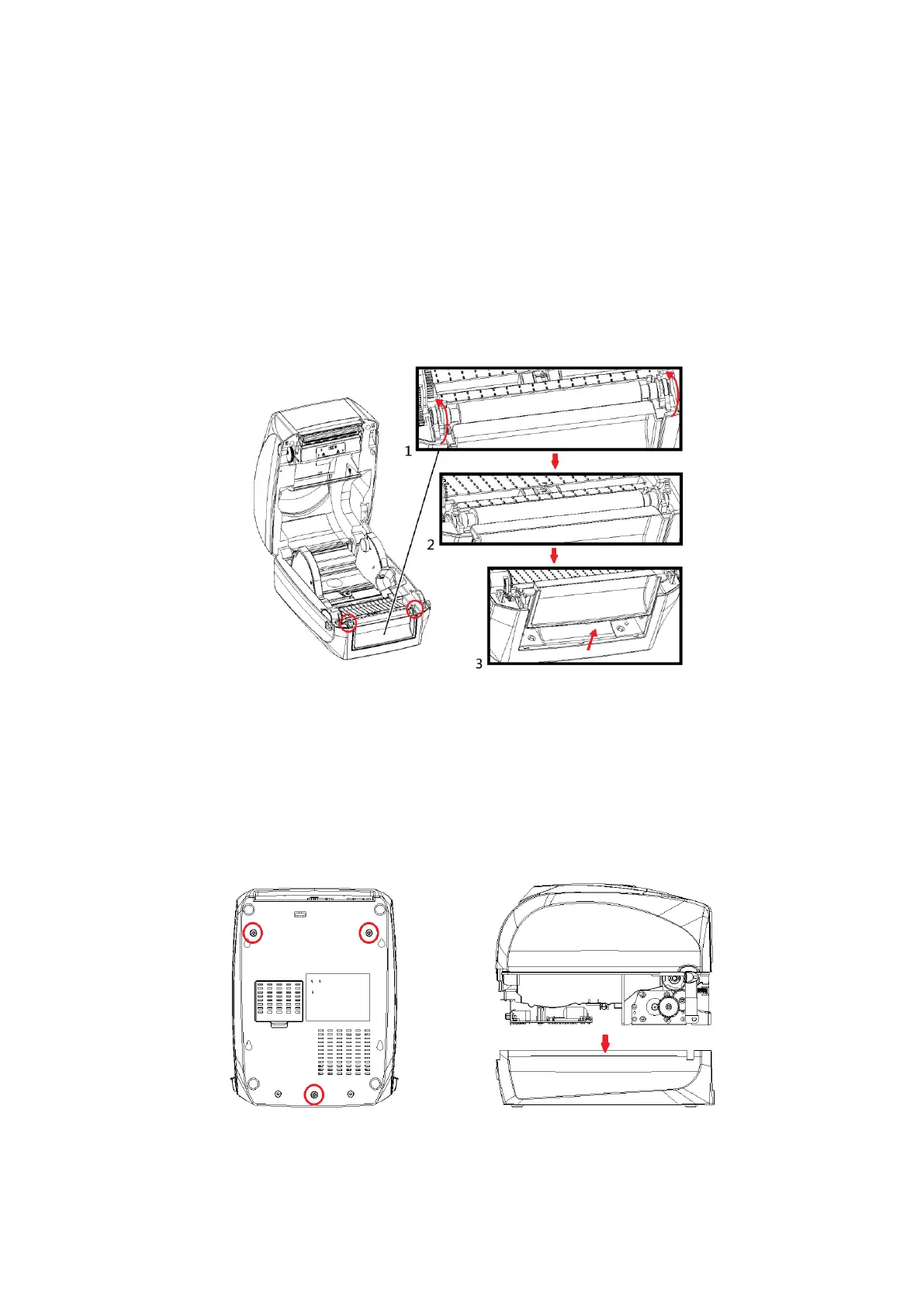

Step 1. Remove the front panel
Push the latches (see red cycles) on the both sides of the platen upwards and remove the front panel
in the direction of the arrow as the figure below indicates.
Step 2. Remove the screws
Remove the screws (see red circles) and remove the base in the direction of the arrow.

Godex RT700 SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Max Print Speed	5 ips
Max Print Length	1727 mm (68")
Processor	32-bit RISC
Interface	USB, Serial, Ethernet
Media Type	Continuous, Die-cut, Fan-fold
Media Width	25.4 mm - 118 mm (1" - 4.64")
Media Thickness	0.06 mm - 0.25 mm
Media Roll Diameter	127 mm (5")
Ribbon Width	30 mm - 110 mm (1.18" - 4.33")
Power	100-240V AC, 50/60Hz
Dimensions	285 mm (L) x 210 mm (W) x 171 mm (H)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
