Godex RT700 SERIES Service Manual

4
1.2 Internal

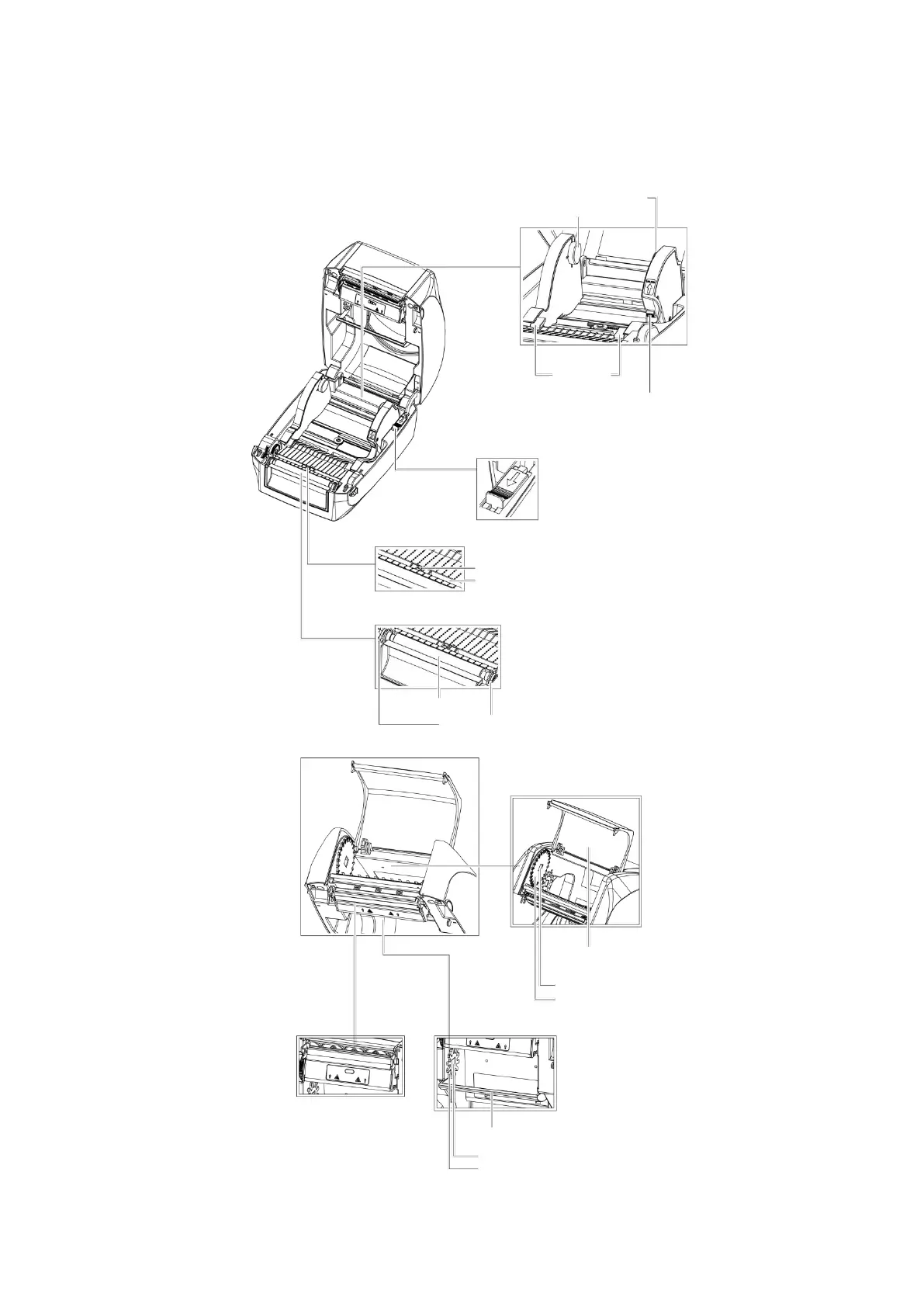

The Internal View of Printer
LABEL SUPPLY HUB
(Set of 2)
LABEL SUPPLY HUB
(Set of 2)
LABEL GUIDE
RELEASE CATCH
RELEASE CATCH (Set
of 2)
LABEL SENSOR MODULE
GUIDE TRACK
PLATEN MODULE
PLATEN LOCKERS
PLATEN
RIBBON REWIND MECHANISM
RIBBON WINDOW COVER
NOTCH OF RIBBON REWIND WHEEL
RIBBON REWIND WHEEL
PAPER PRESS BAR
PRINT HEAD
NOTCH OF RIBBON SUPPLY WHEEL
RIBBON SUPPLY MECHANISM
RIBBON SUPPLY WHEEL

Godex RT700 SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Max Print Speed	5 ips
Max Print Length	1727 mm (68")
Processor	32-bit RISC
Interface	USB, Serial, Ethernet
Media Type	Continuous, Die-cut, Fan-fold
Media Width	25.4 mm - 118 mm (1" - 4.64")
Media Thickness	0.06 mm - 0.25 mm
Media Roll Diameter	127 mm (5")
Ribbon Width	30 mm - 110 mm (1.18" - 4.33")
Power	100-240V AC, 50/60Hz
Dimensions	285 mm (L) x 210 mm (W) x 171 mm (H)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
