Godex RT700 SERIES Service Manual

15
3-3 TPH Module (021-70i004-000,200 dpi,for RT700i/RT700iW/RT700x/RT700i+
021-G50007-000,200 dpi,for RT700
021-G53007-000,300 dpi for RT730/T730i/RT730iW/RT730x/RT700i+)
3-3-1 Disassemble TPH Module

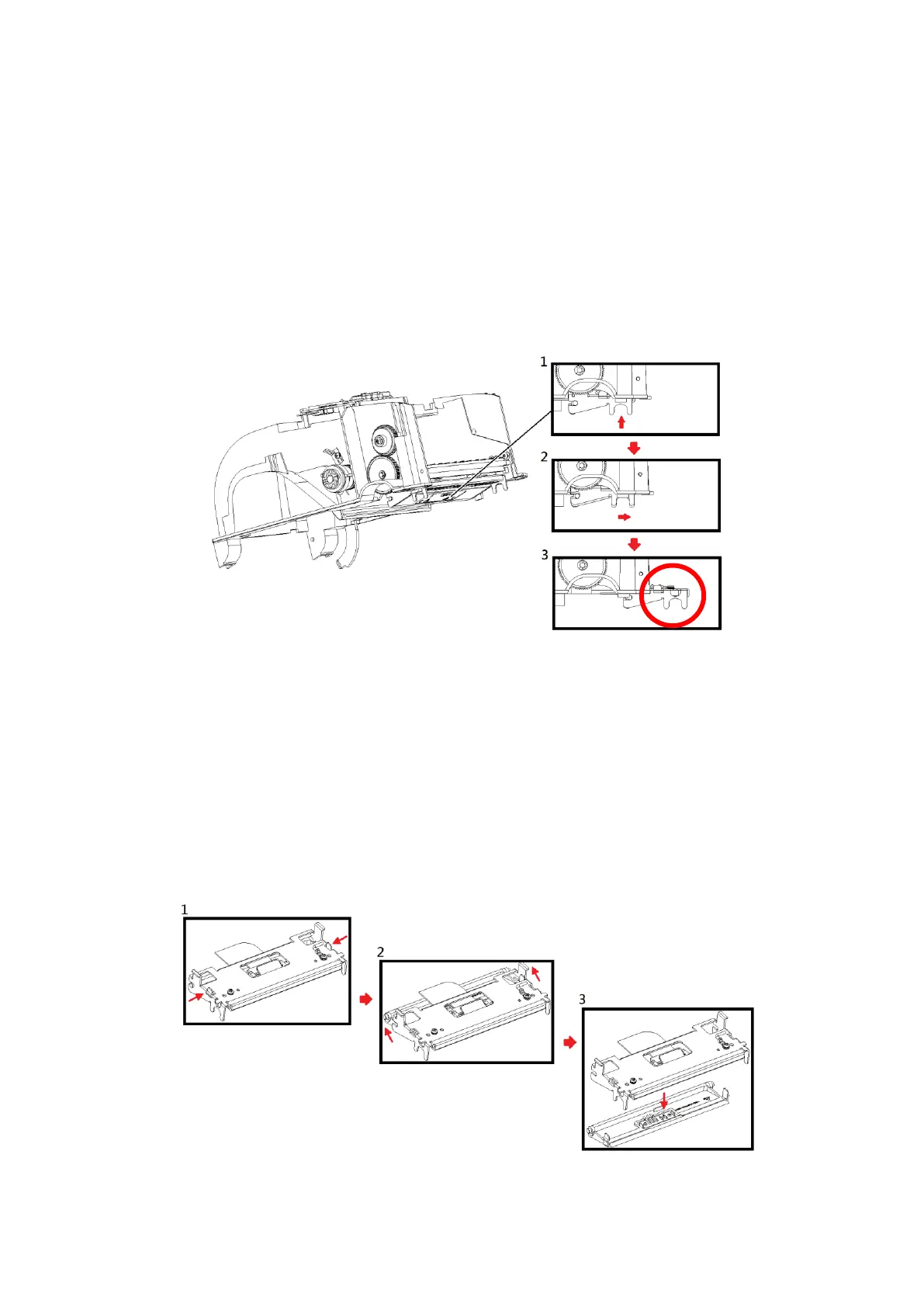

Step 1. Remove the TPH module
Remove the TPH module as the arrows below indicate.
Step 2. Remove the TPH cover
Press the latches on the both sides of the cover inwards (figure 1) and push the cover backwards
(figure2). Remove the TPH cover in the direction of the arrow (figure3).
Push it upwards
Push it forwards

Godex RT700 SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Max Print Speed	5 ips
Max Print Length	1727 mm (68")
Processor	32-bit RISC
Interface	USB, Serial, Ethernet
Media Type	Continuous, Die-cut, Fan-fold
Media Width	25.4 mm - 118 mm (1" - 4.64")
Media Thickness	0.06 mm - 0.25 mm
Media Roll Diameter	127 mm (5")
Ribbon Width	30 mm - 110 mm (1.18" - 4.33")
Power	100-240V AC, 50/60Hz
Dimensions	285 mm (L) x 210 mm (W) x 171 mm (H)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
