Godex RT700 SERIES Service Manual

49

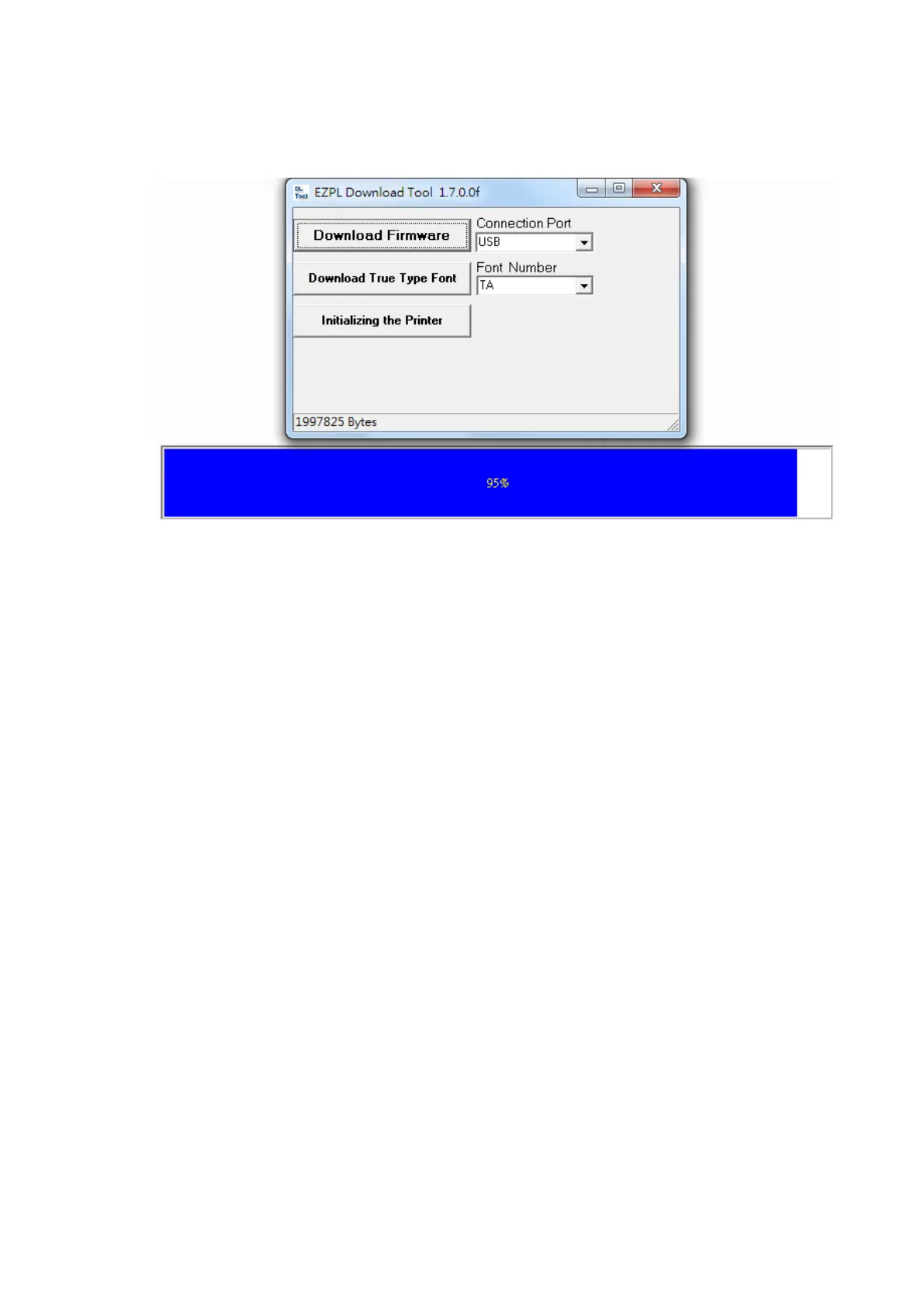

When the progress bar shows “100%”, the firmware download is complete. Please wait for printer to complete the reset
procedure. The printer would turn to “Ready to printer” status after resetting.
The printer will reboot after the progress bar shows “100%”, the Firmware is completely downloaded.

Godex RT700 SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Max Print Speed	5 ips
Max Print Length	1727 mm (68")
Processor	32-bit RISC
Interface	USB, Serial, Ethernet
Media Type	Continuous, Die-cut, Fan-fold
Media Width	25.4 mm - 118 mm (1" - 4.64")
Media Thickness	0.06 mm - 0.25 mm
Media Roll Diameter	127 mm (5")
Ribbon Width	30 mm - 110 mm (1.18" - 4.33")
Power	100-240V AC, 50/60Hz
Dimensions	285 mm (L) x 210 mm (W) x 171 mm (H)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
