Godox MF-R76S - Page 18

Transmitter Unit
Receiver Unit A (TTL)
Receiver Unit C (Manual Flash)
Receiver Unit B (TTL)
(Flash Group M: M Manual Flash 1/1, Flash Group A : TTL, Flash Group B : TTL
Flash Group C : M Manual Flash
, Flash Group D: M Manual Flash)
Set the flash groups (M, A, B and C) of MF-R76S (transmitter unit) as either the same or different
flash output power, no need to set the receiver units and they will perform wireless multiple flash
shooting by following the transmitter.
2. M: Wireless Multiple Flash Shooting in M Manual Flash Output Mode
Set the flash groups (M, A, B and C) of MF-R76S (transmitter unit) as the different flash modes,
no need to set the receiver units and they will perform wireless multiple flash shooting in
different flash modes. Set the FEB value on transmitter unit, no need to set the receiver units
and they will follow the transmitter.
The receivers mentioned in this chapter are all sold separately.
Flash group M is the transmitter flash group.
If the receivers do not flash resulting from inconsistency of channels with the transmitter, please adjust them to the
same. The channel setting of the receivers please refer to their instruction manuals.
Do not set obstacles between the transmitter and the receivers to avoid interference.
Please conduct flash test and shooting test before wireless multiple flash shooting.
Please refer to the wireless setting of menu setting for how to set the flash as a transmitter unit.
Please refer to the wireless setting of menu setting for how to set the flash as a receiver unit.
All the above descriptions in this chapter are based on the condition that MF-R76S is the transmitter.

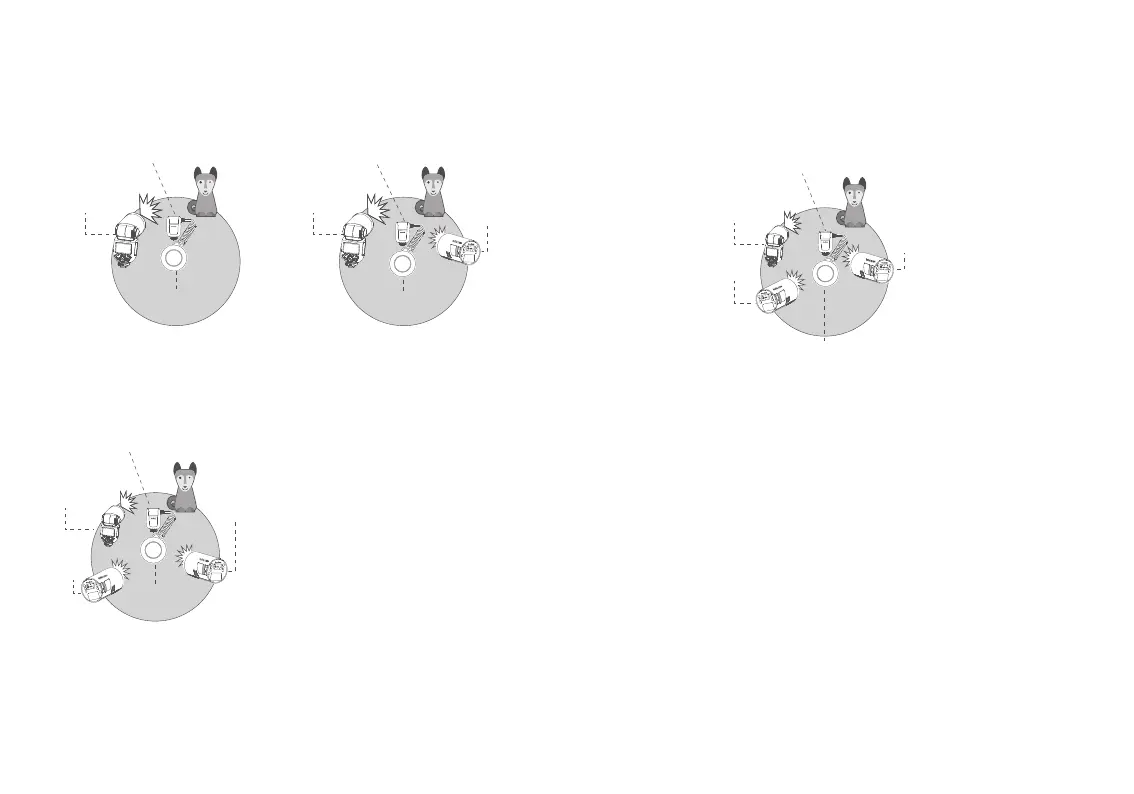

3. Wireless Multiple Flash Shooting in Different Flash Modes
Auto Flash Shooting with
One Receiver Unit
Auto Flash Shooting with
Three Receiver Units
Auto Flash Shooting with
Two Receiver Units
Receiver Unit A
(M Manual Flash 1/8)
Receiver Unit B
(M Manual Flash 1/1)
Receiver Unit A
(M Manual Flash 1/1)
Receiver Unit C
(M Manual Flash 1/1)
Transmitter Unit
(Flash Group M: M Manual Flash 1/1
, Flash Group A: M ,
Manual Flash 1/8)
Transmitter Unit
(Flash Group M: M Manual Flash 1/1, Flash Group A : M 1/8,
Flash Group B : M 1/1)
Transmitter Unit
(Flash Group M: M Manual Flash 1/1, Flash Group A : M 1/1,
Flash Group B : M 1/8, Flash Group C : M 1/1)
Transmission
distance is about
100m.
Transmission
distance is about
100m.
Transmission
distance is about
100m.
Transmission
distance is about 100m.
Receiver Unit A
(M Manual Flash 1/8)
Receiver
UnitB
(M Manual
Flash 1/8)
1.
2.
3.
4.
5.
6.
7.
8.
Note:
32 33
