3.0 PHYSICAL DESCRIPTION
HIGH VOLTAGE PULSER/TUBEHEAD. The main body of the XRS4 is the tube head which contains the tube cavity,
cold cathode type X-ray tube, spark gap, high voltage capacitor, and transformer. The standard collimator locat-
ed on the front of the head limits the X-ray beam to 40 degrees. Special order collimators up to 85 degrees are
available.
BASE. The base of the XRS4 contains the identication label and a threaded ¼-20 insert that can be attached to
any standard camera tripod. Identication label indicates the model, manufacturer, and serial number is located
on the bottom of the XRS4 base.
BATTERY PACK. The standard battery pack is a DeWalt
®
18V nickel-cadmium battery. Optional battery chem-
istry or voltage may be available.
BATTERY CHARGER: The standard battery charger is the DeWalt
®
DW9116 110V charger or DE9108 220V
charger. Battery charge time is one hour. See battery charger manual for additional instructions and warnings.

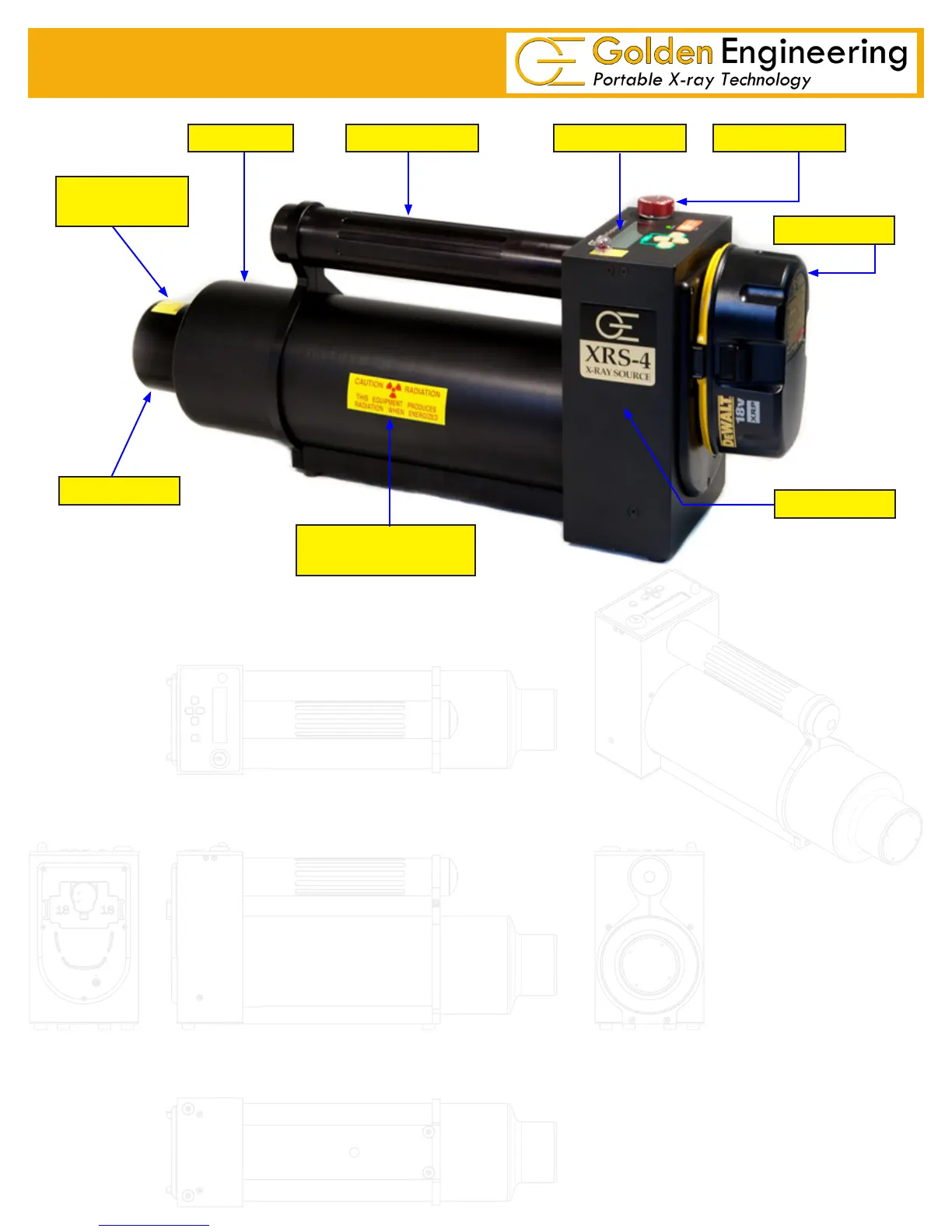

TOUCH PAD KEY
RADIATION
WARNING LABEL
HOUSING
BATTERY
HEAD
BEAM ANGLE
LABEL
COLLIMATOR
HANDLE
