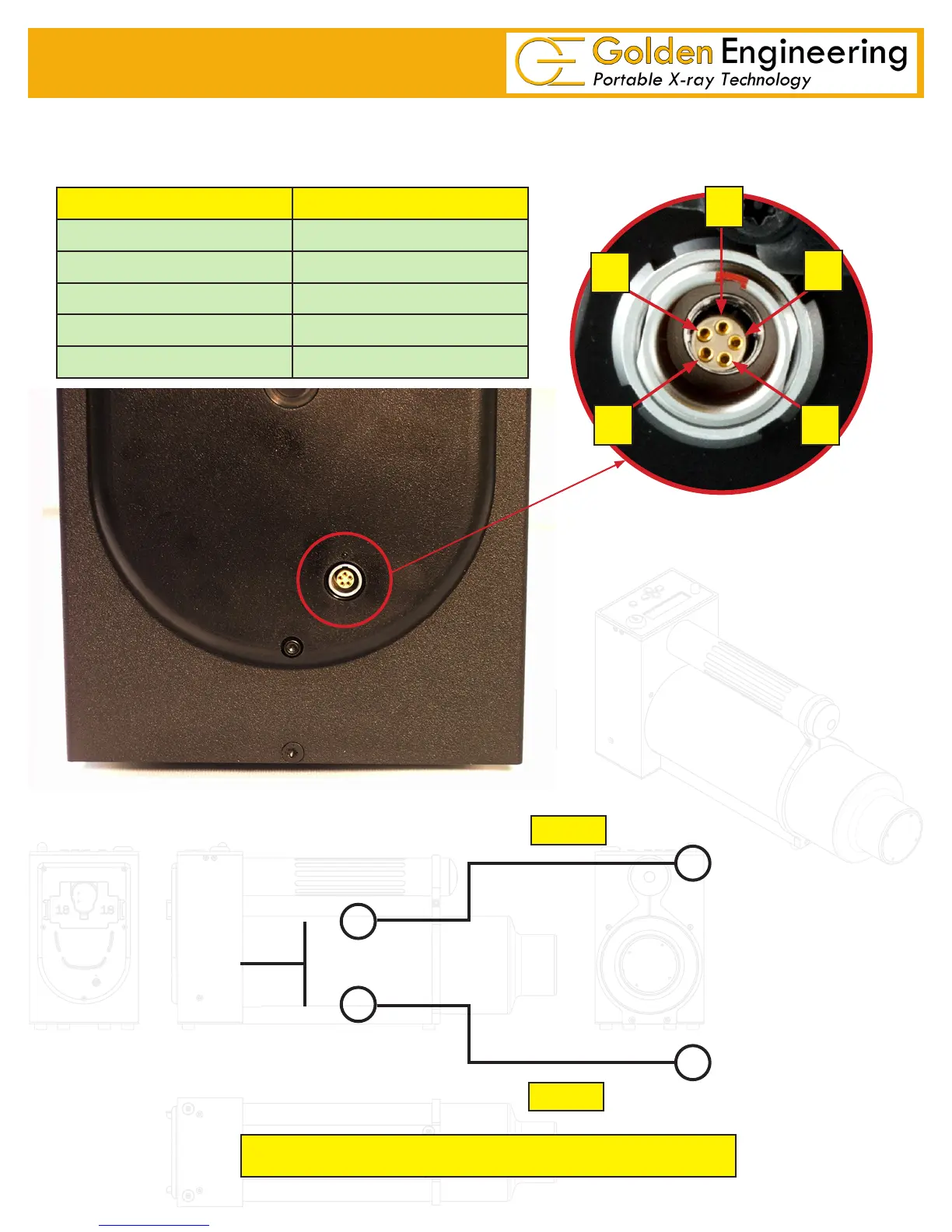

XRS4 REAR VIEW/CABLE CONNECTOR
PIN 5
REMOTE CONNECTOR: LEMO EPG.0B.305.HLN
MATING CABLE PLUG: LEMO FGG.0B.305.CLAD 56Z
PIN 5
PIN 2
Remote switch inputs are activated when grounded.
3 4
5
2
1
CABLE CONNECTOR: Lemo “K” series ve pin connector located on the back of the control module beneath the
battery receives the remote cable or imaging system cable.
PIN # DESCRIPTION
1 +5 VOLTS 100 ma MAXIMUM
2 REMOTE SWITCH
3 REMOTE SWITCH - NO DELAY
4 X-RAY ON SIGNAL
5 COMMON 0 VOLTS
Remote cable connector
