Golden Technologies Buzzaround Lite User Manual

Buzzaround_SG_REVA_040711
9

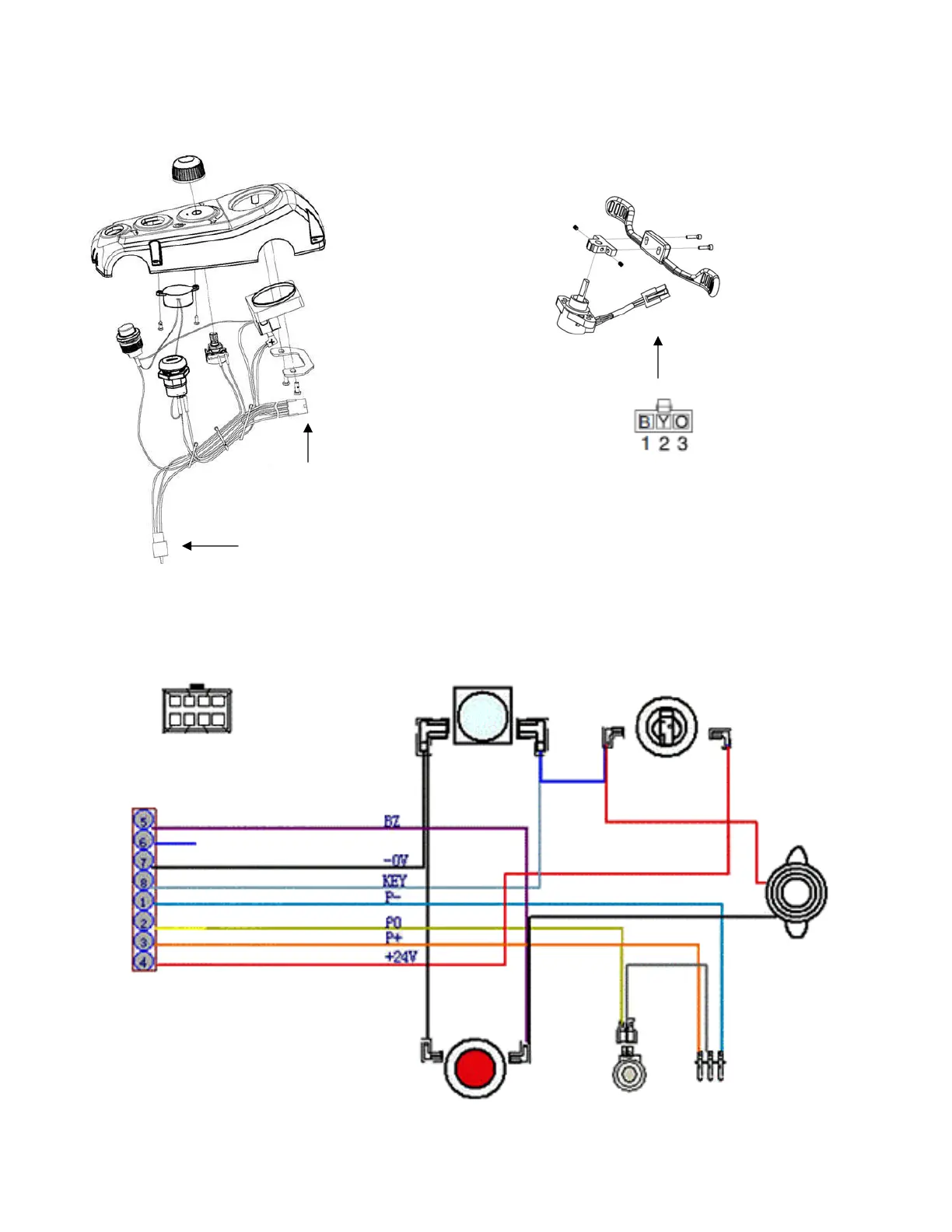

CONTROL PANEL WIRING DIAGRAM
5K OHM THROTTLE POT
PINOUT (FRONT VIEW – TP1)
TO THROTTLE POT
CONNECTION
(
TP1
)
TO MAIN HARNESS
CONNECTION (MH2)
TD2
TD1
PURPLE
BLACK
WHITE
BLUE
YELLOW
ORANGE
RED
NC
PIN 3 PIN 2 PIN 1
BATTERY VOLTAGE METER
POWER KEY SWITCH
(
ON/OFF
)
HORN
HORN BUTTON
25K OHM
SPEED POT
PURPLE
NC
BLACK WHITE RED
ORANGE YELLOW
BLUE
8
5
1
4
TD1
TD2
