Buzzaround_SG_REVA_040711
25

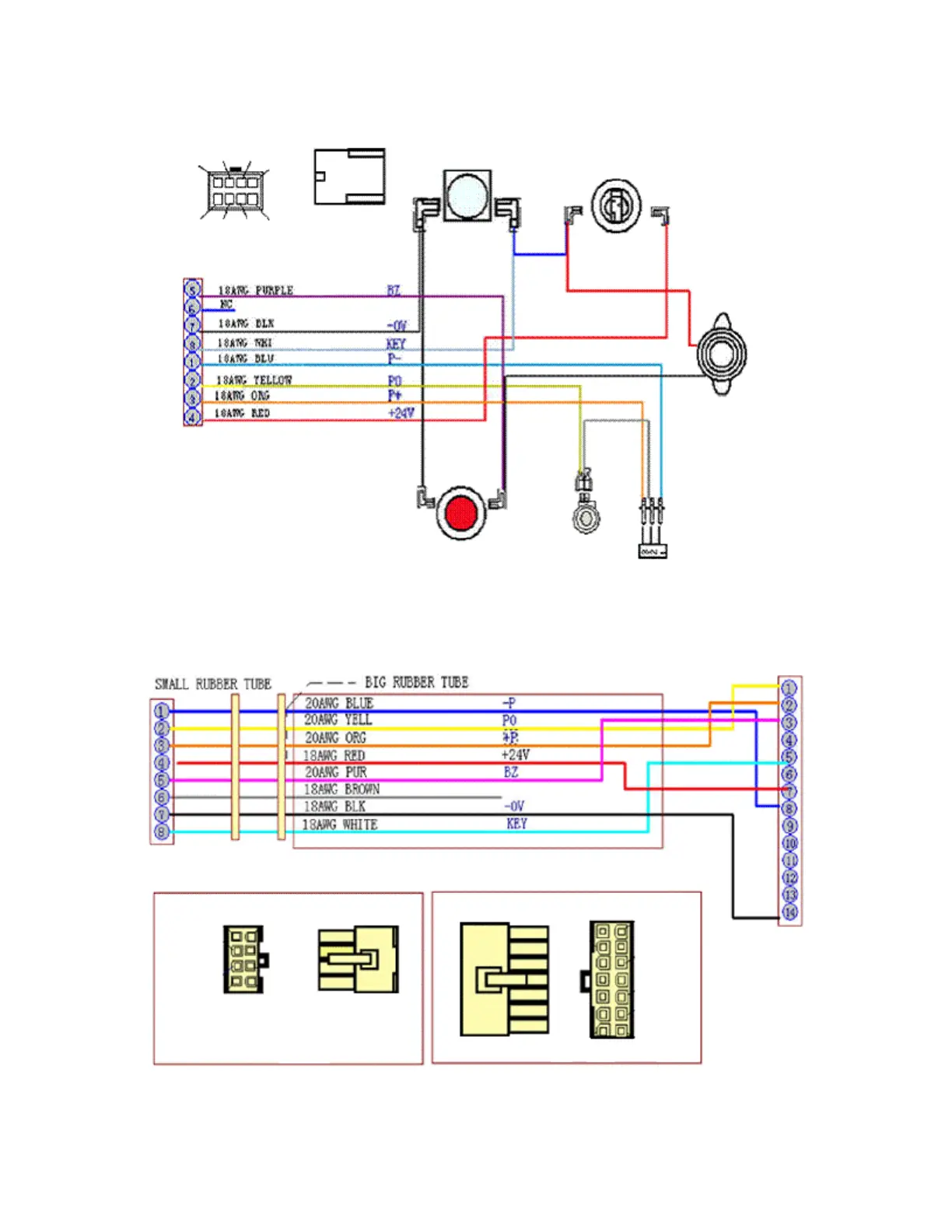

APPENDIX C - WIRING DIAGRAMS
CONTROL PANEL
MAIN HARNESS
1
5 8
4
white
purple
black
NC
blue
yellow
orange
red
Buzzer 24VDC
25K Ohm Speed Pot
3 pin connector (male) TD2
TO THROTTLE POT CONNECTOR (TP1)
TO MAIN HARNESS
CONNECTOR (MH2)
Connector TD1
Horn Button
PIN 3
PIN 2
PIN 1
Battery Voltage Meter
Power Key Switch (On/Off)
TO CONTROL
PANEL
CONNECTOR
(TD1)
Connector MH2
8 pin connector (male) 14 pin connector (male)
Connector MH1
TO S-DRIVE
CONTROLLER
CONNECTOR
(CN7)
8 4
1 5
blue
yellow
orange
red white
black
NC
purple
red
7
7
1
14
8
blue
black
white
purple
orange
yellow
NC
NC
