26

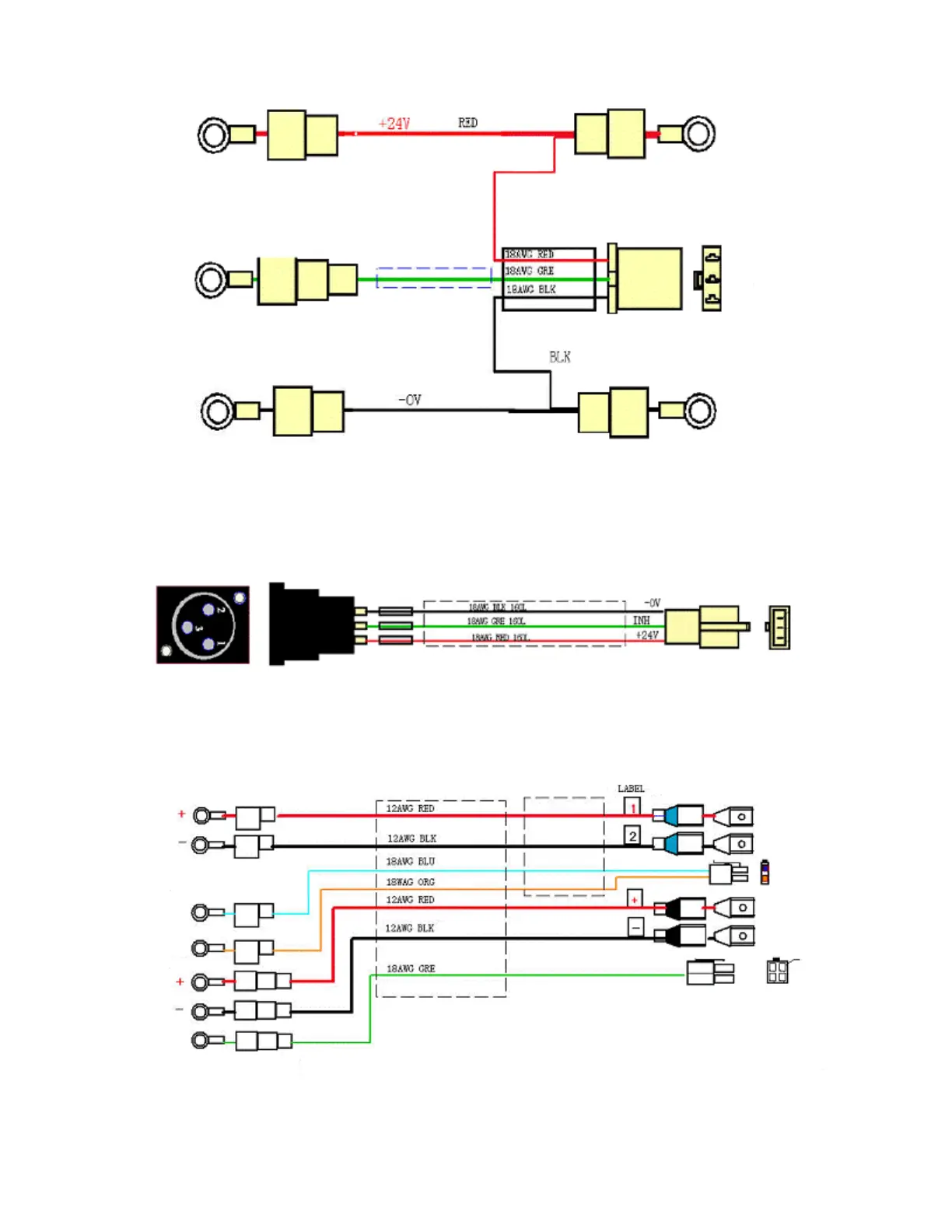

INTERMEDIATE CHARGER HARNESS
CHARGER
HARNESS
POWER HARNESS
CONNECTOR (ICH6) TO
CONTROLLER +24V
CONNECTOR (ICH3) TO
CONTROLLER INHIBIT
CONNECTOR (ICH4) TO
CONTROLLER – 0V
TO BATTERY (-)
TERMINAL (ICH2)
TO BATTERY (+)
TERMINAL (ICH5)
TO CHARGER
HARNESS
CONNECTOR
(CH2)
INHIBIT
Red + 24V
Inhibit
Black – 0V
TO OFF-BOARD CHARGER
CHARGER PORT (CH1)
3-pin connector (female)
black
green
red
CONNECTOR (CH2) TO
INTERMEDIATE CHARGER HARNESS
CONNECTOR (ICH1)
TO CONNECTOR PLATE
TO CONTROLLER CONNECTIONS
PH8 TO MOTOR (CN3)
TO BRAKE (CN6)
+ VOLTAGE INPUT (CN1)
INHIBIT (CN6)
PH9 TO MOTOR (CN4)
blue
orange
- VOLTAGE INPUT (CN2)
green
PH1
PH2
PH3
PH5
PH7
PH6
PH4
PH13
PH10
