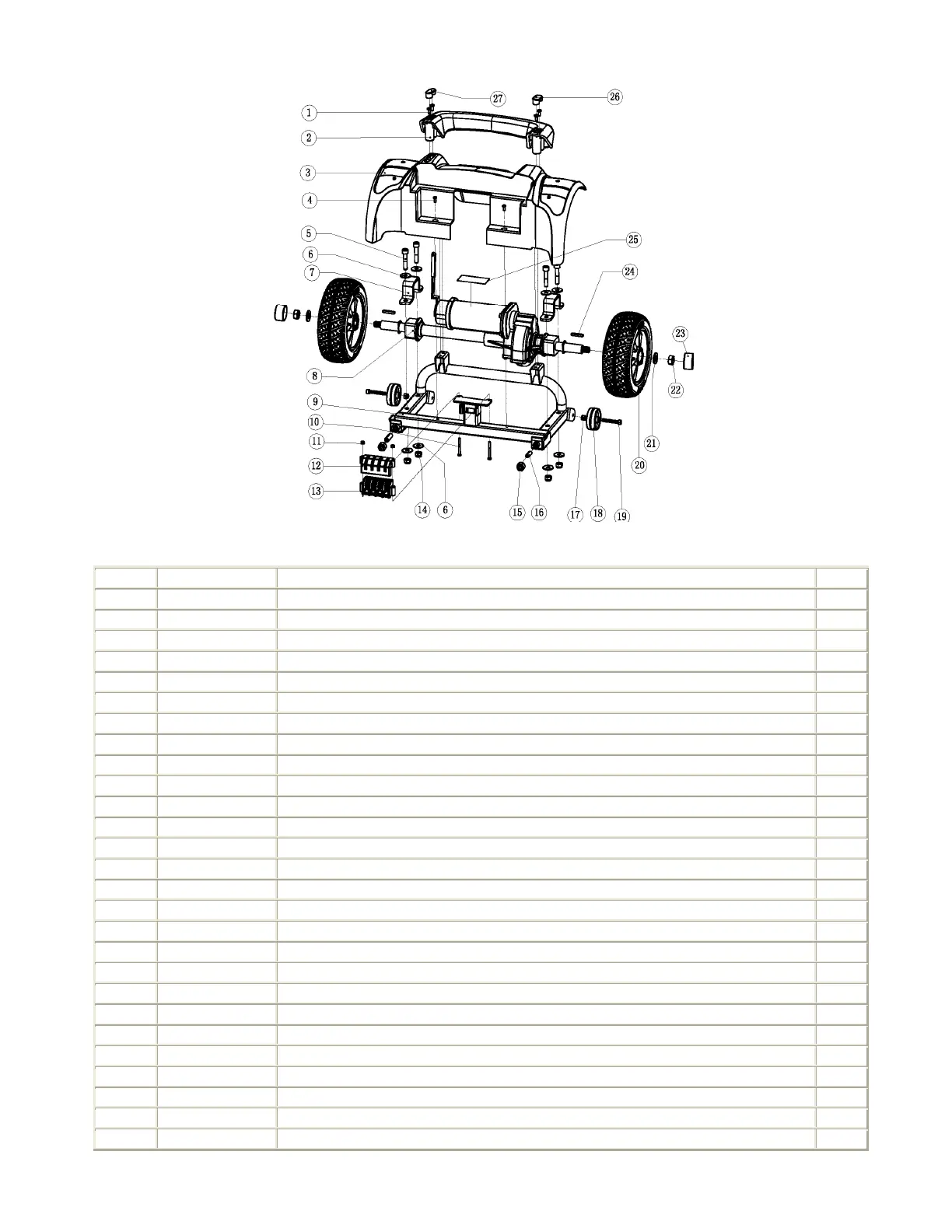

Rear Body Assembly (B05E102)
ITEM PART NO. DESCRIPTION QTY
01 3110605051 Cross pan head screws M5 * 16L (white zinc plated) 4
02 SB3P511A After the bumper 1
03 SB3E502A Rear shell combination 1
04 3111704011 Cross trough with meson drilling screw ST4.2 * 13L (white zinc plated) 2
05 3110308042 Hexagon socket head bolt M8 * 45L (black zinc-plated) 4
06 3000408011 Flat washer Ø8.4 * Ø16 * 1.6 (white zinc plated) 8
07 SB3P137A Motor bracket t = 5 2
08 SB2E300A Transmission assembly Taiwan for 1
09 SB3A102A After the frame group 1
10 3110604081 Cross recessed pan head screw M4 * 45L (white zinc plated) 2
11 3100304011 Nylon nut M4 (white zinc plated) 2
12 SB3P518A Folder guard electrode Black 1
13 SB3E602A Block electrode 1
14 3100308011 Nylon nut M8 (white zinc plated) 4
15 3100108012 Hexagon nut M8 (black zinc-plated) 2
16 3111508052 Hexagon socket set screws with cone M8 * 25L (black zinc-plated) 2
17 3100306012 Nylon nut M6 (black zinc-plated) 2
18 3070505010 Round of anti-dumping Ø50 * 24L (Black) 2
19 3110106012 Large flat head socket screw M6 * 40L (black zinc-plated) 2
20 SB05A203 8 "rear wheels 195 * 70 2
21 3000413012 Flat washer Ø13.5 * 23 * 2.5 (black zinc-plated) 2
22 31002W6012 Nylon nut (1 / 2) "-20UNF (black zinc-plated) 2
23 SB05P501 Dust cover 2
24 3001304019 Axle key 4.75 * 30L 2
25 3002330030 Barcode sticker 30 * 13 1
26 SB3P527A Rubber plug (left) 1
27 SB3P528A Rubber plug (right) 1
