Component Replacement Instructions
CONTROLLER REPLACEMENT
To replace the controller:
1) Place the freewheel lever in the engaged position.
2) Remove the key from the key switch.
2) Remove the seat.
3) Remove the battery box.
4) Turn the scooter over onto its side.
5) Remove the screws that attach the controller cover to the frame.
6) Slide the controller cover forward and remove it from the frame. See figure 2.
7) Unplug the connectors from the controller. Note the location of any wire ties used to secure the harnesses.
8) Remove the controller.
9) Install the new controller.
10) Reconnect the harness connectors. See figure 3.
11) Reinstall the controller cover.
12) Turn the scooter back onto its wheels.
13) Reinstall the battery box.
14) Reinstall the seat.
15) Insert the key into the key switch and operate the scooter.

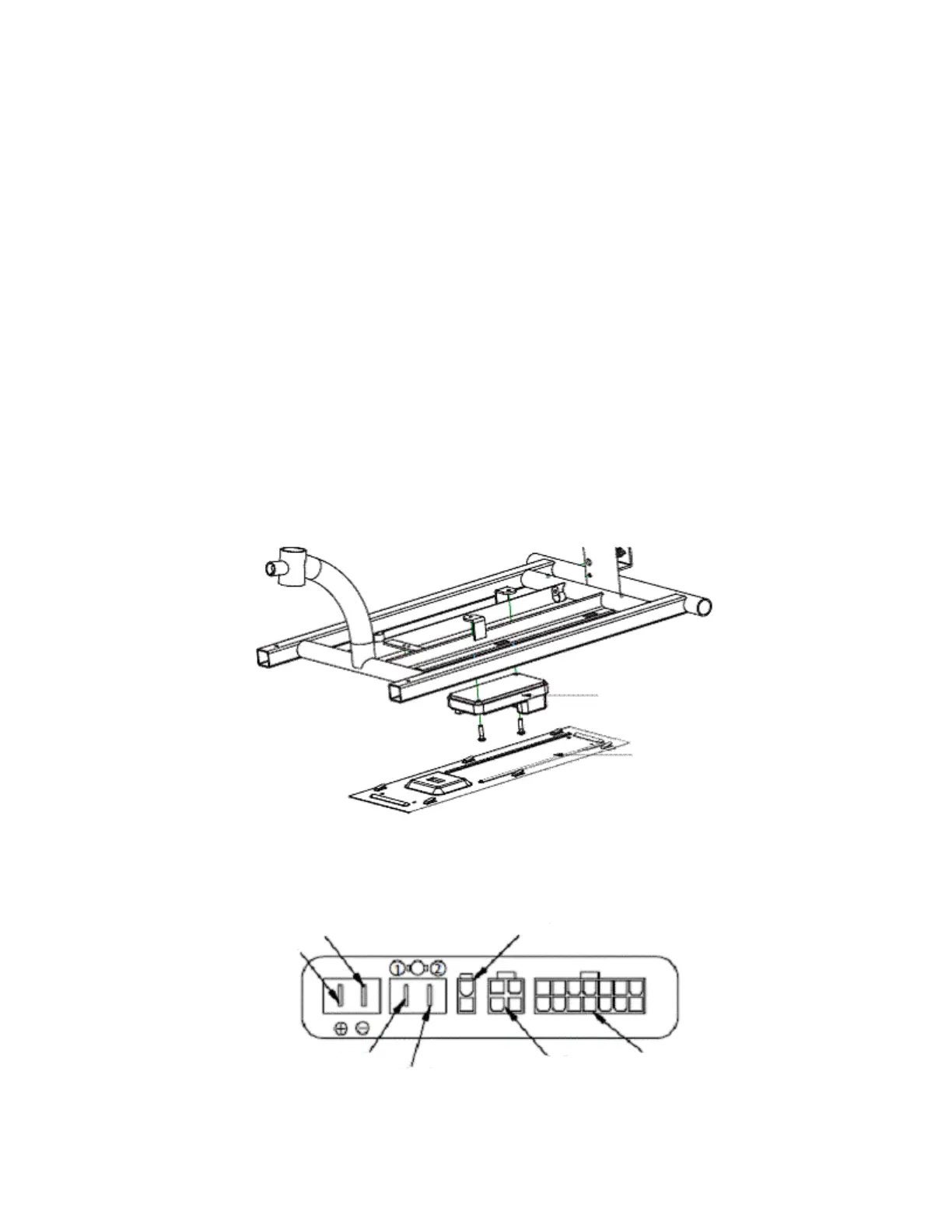

Figure 2. Controller Location
Figure 3. Controller Connections
BAT+
BAT- MOTOR BRAKE
MAIN HARNESS CHARGER INHIBIT
MOTOR -
MOTOR+
CONTROLLER
CONTROLLER
COVER
