Buzzaround_SG_REVA_040711
27

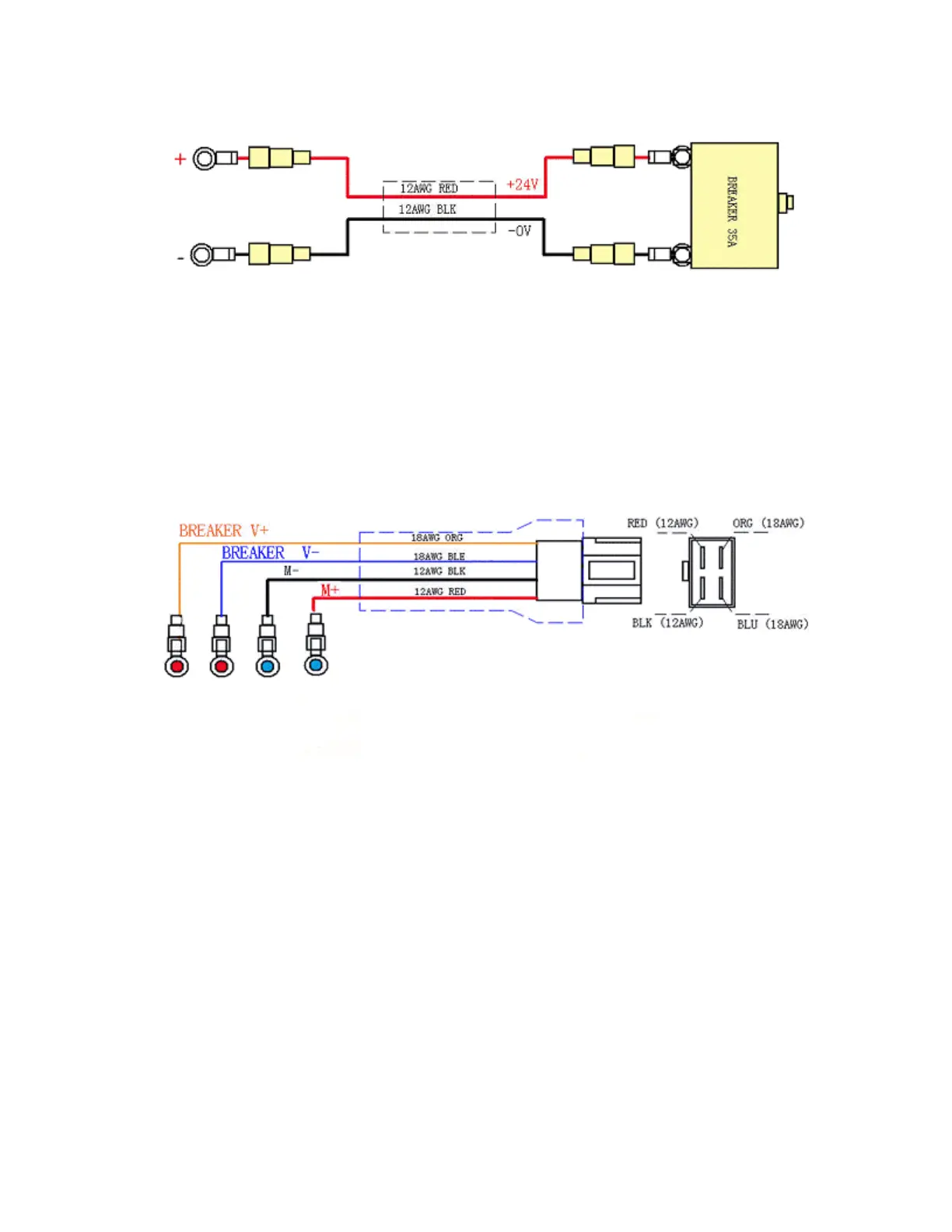

CIRCUIT BREAKER AND HARNESS
INTERMEDIATE MOTOR
HARNESS
TO BATTERY TERMINALS
CB6
CB3
TO MOTOR CONNECTOR PLATE
TO MOTOR CONNECTOR (MT1)
Connector (IMH1)
4 pin connector (female)
IMH3 IMH5 IMH4 IMH2
