Buzzaround_SG_REVA_040711
22
Battery Replacement – Continued
13) Reconnect the charger harness and the intermediate charger harness.
14) Place the top half of the battery pack, onto the bottom half.
15) Tighten the twelve screws to secure two halves.
16) Reinstall the battery pack.
17) Reinstall the seat.
18) Insert the key and test the scooter.

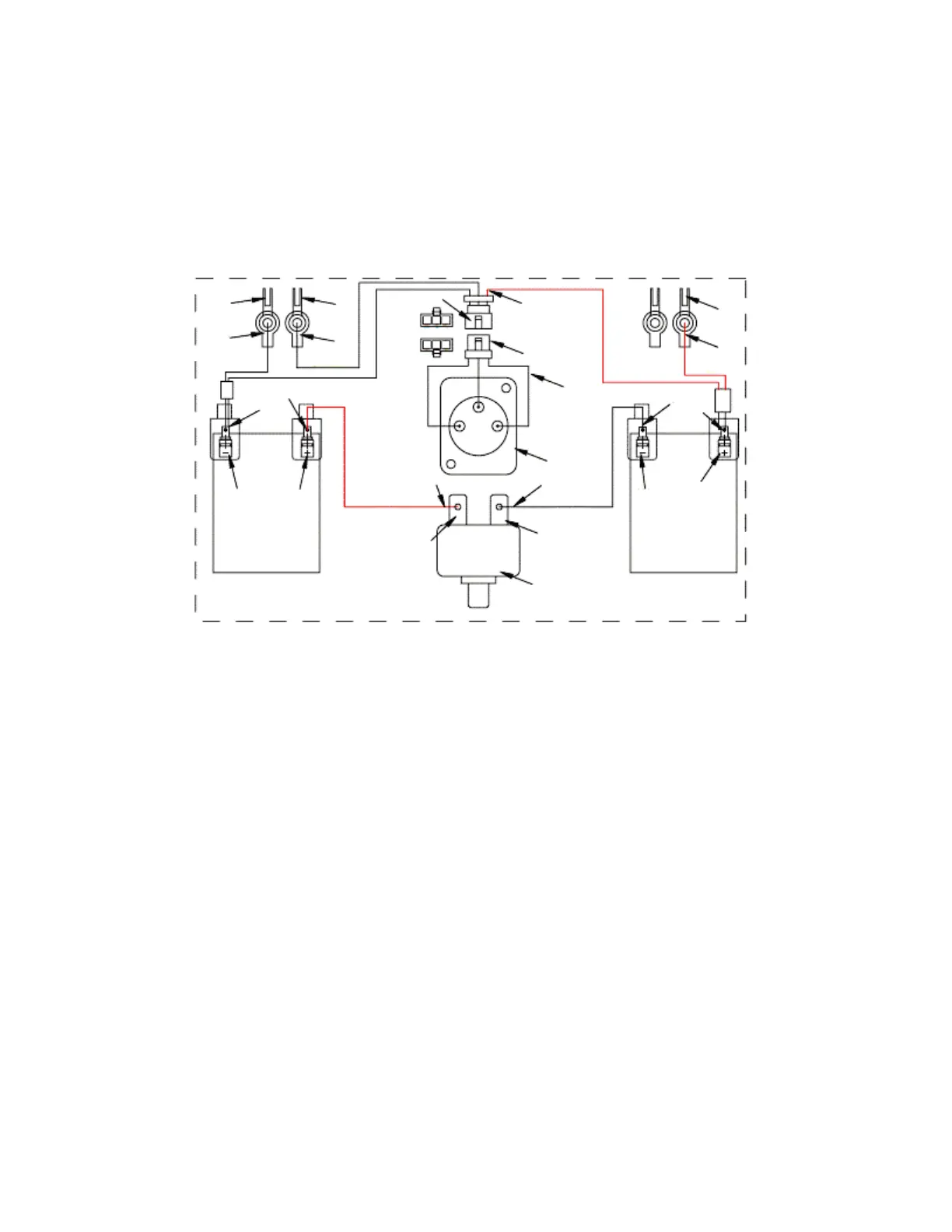

Figure 10. Battery Pack Wiring Diagram
Battery
12V12AH
Battery
12V12AH
BAT- BAT+ BAT- BAT+
BLACK
BLACK
RED
RED
RED
BAT3
ICH6
GREEN
ICH4
BAT1 BAT2
ICH3
ICH2
CB3
INSIDE BATTERY BOX
CIRCUIT BREAKER
CB4
CB1
CB2
CB5
CH1
3
2 1
CB6
ICH5
INTERMEDIATE
CHARGER
HARNESS (ICH)
CH2
CHARGER
HARNESS
(CH)
R G B
ICH1
R G B
To Next Page
