03 Product Introduction
7
User Manual V1.0-2022-12-15
No. Parts Description
1 PV Input Terminal Used to connect the PV module DC input cables.
2 DC Switch Start or stop DC input.
3 DC Switch Lock
Only for Australia. Turn the DC switch to OFF and
lock it to avoid electric shock when you have to work
on the inverter.
4
WiFi/4G/LAN/GPRS
Communication Module Port
or RS485 Communication
Cable Port
• Connect a communication module like WiFi,
LAN, GPRS, 4G, etc. The module type may dier
depending on actual needs.
• Connect the RS485 Communication Cable.
• Update the software version of the inverter using
a USB ash driver.
5
DRED/CT/Remote Shutdown
Communication Cable Port
Used to connect the DRED or remote shutdown
communication cable.
6 AC Output Terminal
Used to connect the AC output cable, which connects
the inverter and the utility grid.
7 Indicator Indicates working state of the inverter.
8 LCD Used to check the parameters of the inverter.
9 Button Used to select menus displayed on the screen.
10 PE Terminal Used to connect the PE cable.
11 Mounting Plate Used to install the inverter.
12 Heat Sink Used to cool the inverter.

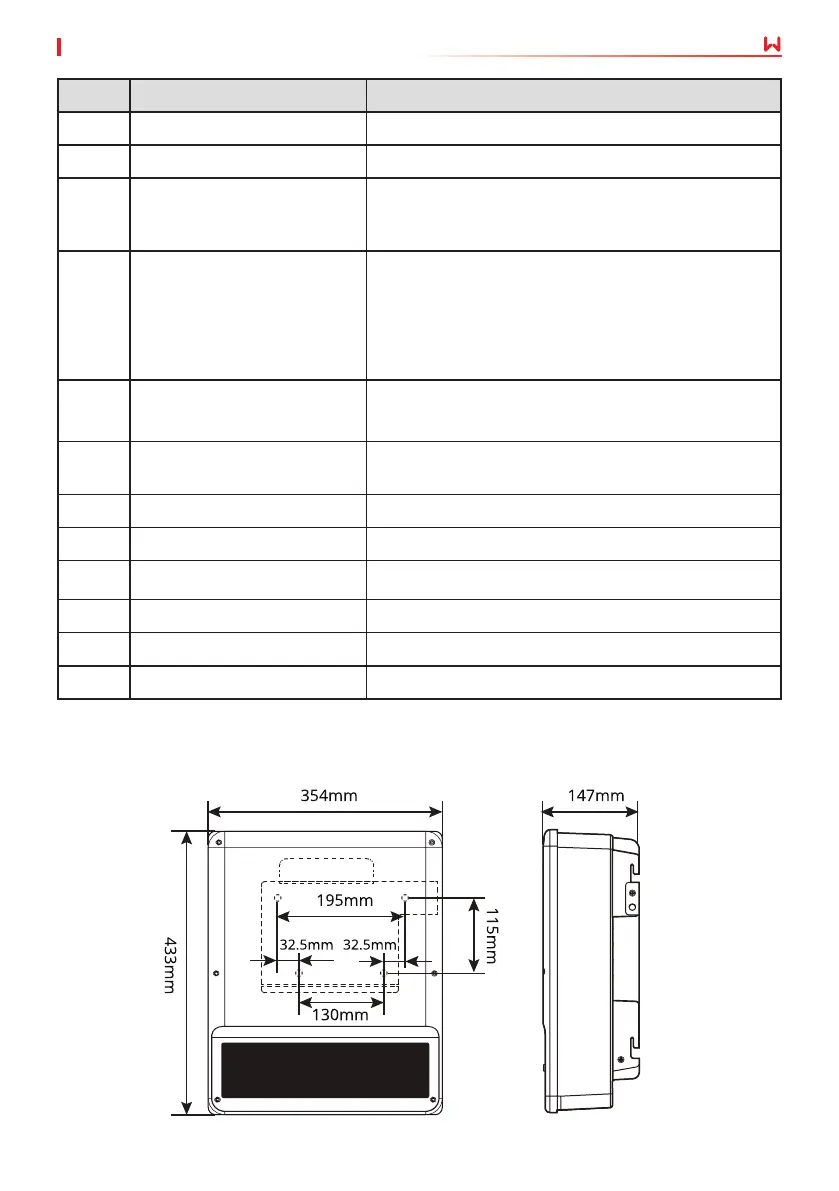

3.4.2 Dimensions
