06 Electrical Connection
22
User Manual V1.0-2022-12-15
NOTICE

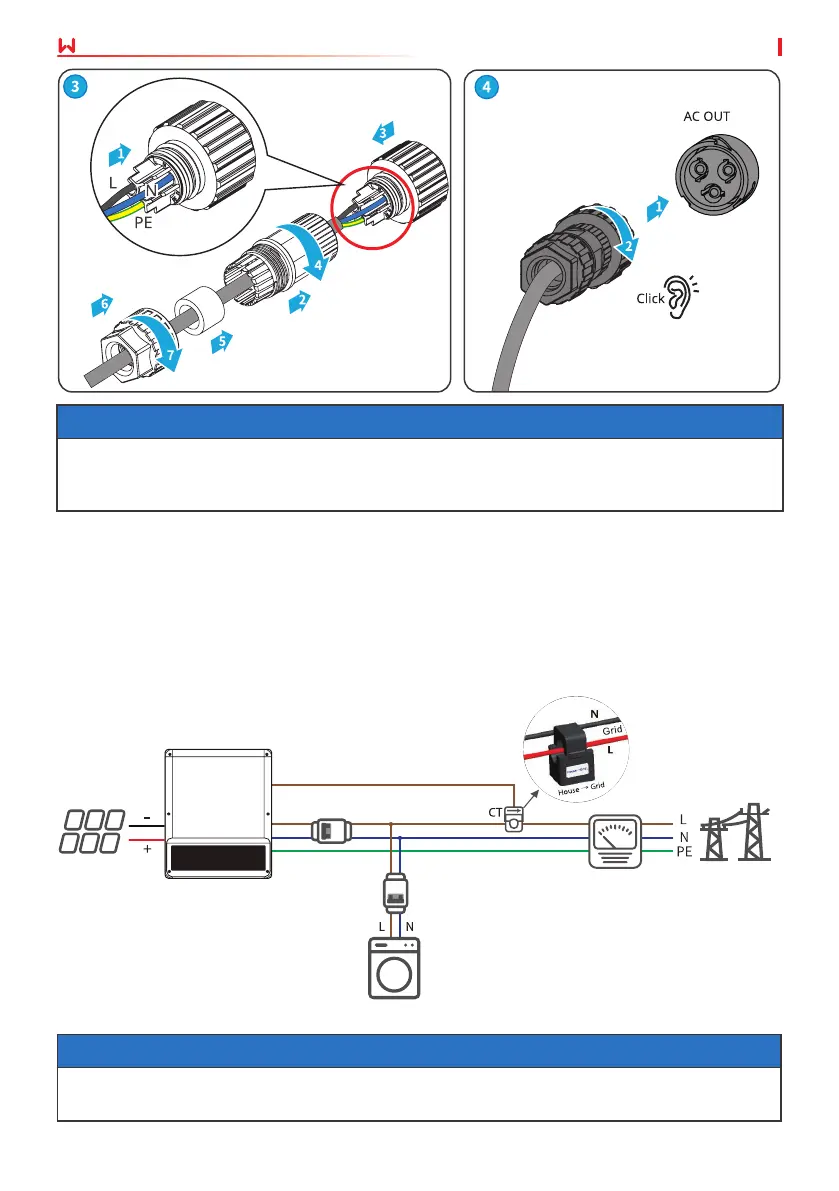

• Make sure that the cable is connected correctly and securely. Clear the debris after completing
the connection.
• Seal the AC output terminal to ensure the ingress protection rating.
Inverter
PV String
Utility Grid
Loads
Circuit
Breaker
Circuit
Breaker
Meter
Power Limit Network
The PV station generates power for self-consumption, but the electric equipment cannot
consume all the generated power. The inverter can monitor the on-grid electric data in real-time
and adjust the output power via a smart meter to avoid the residual current feeding back to the
utility grid.
6.5 Communication
6.5.1 Communication Network Introduction
Notice
After completing cable connections, set related parameters via LCD or SolarGo app to enable
export power limit control or output power limit control.
CT90
To Next Page
