User Manual V1.6-2022-01-05 02 Installation Instructions
Accmulated snow
Keep away
from sunlight
Keep dry
Keep it clear
of snow
Sun Rain
Rule 6. Inverter should be installed at eye level for convenient maintenance.
Rule 7. Product label on inverter should be clearly visible after installation. Do not damage the
lable.
Rule 8. Do not install the inverter when it is snowing or raining. If you have to, pay attention to
the waterproof and moisture-proof of the inverter and distribution box.

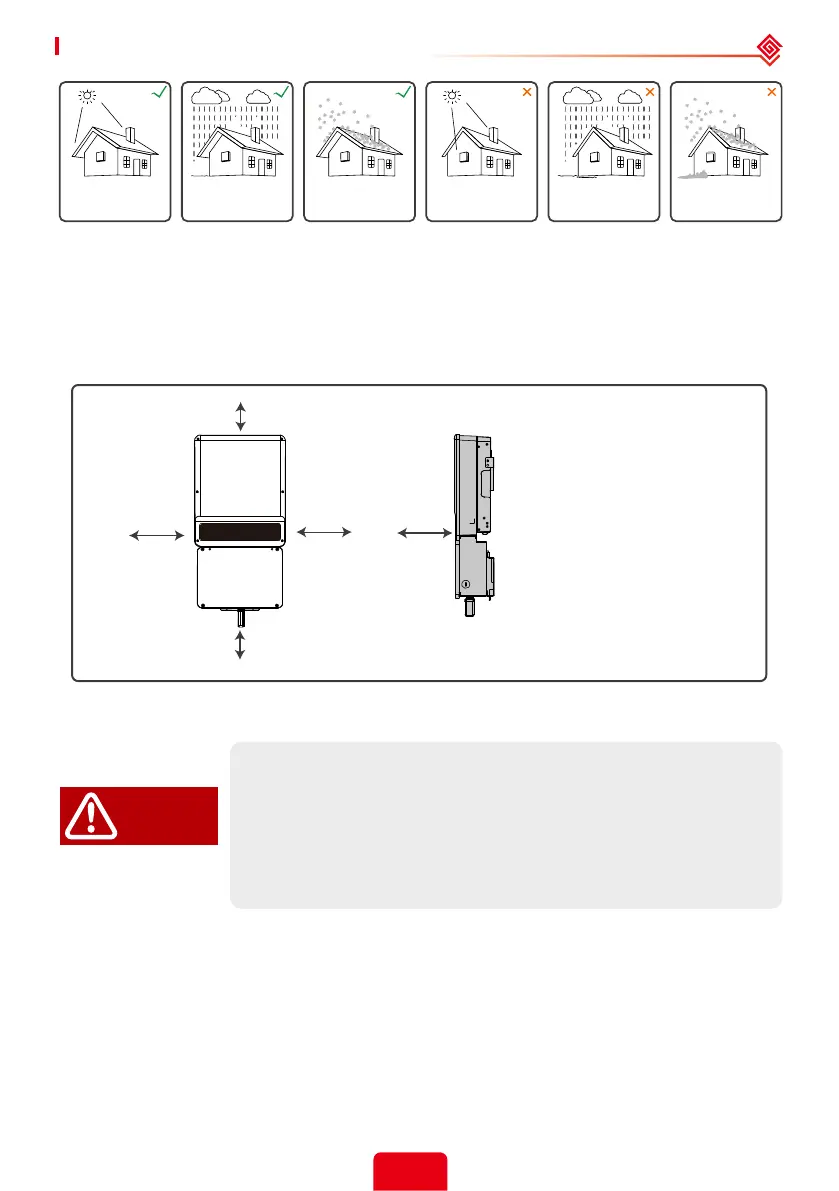

Rule 9. Leave enough space around the inverter according to the below gure for natural heat
dissipation.
2.3.2 Wall Mounted Bracket And Inverter Installation
Inverter should be installed away from combustible, explosive and
strong electro-magnatic materials.
The inverter is suitable for mounting on non-combustible surface only.
L’onduleur doit être installé loin des matériaux électro-magnats
combustibles, explosifs et forts.
L’onduleur est adapté pour au montage sur une surface non
combustible seulement.
DANGER!
Upward----------
Downward------
Front-------------
Both sides-------
500mm
300mm
300mm
200mm
200mm
300mm
300mm
500mm
200mm
（19.69 in.）
（19.69 in.）
（7.87 in.）
（7.87 in.）
（7.87 in.）
（11.81 in.）
（11.81 in.）
（11.81 in.）
（11.81 in.）
