16
User Manual V1.6-2022-01-05 02 Installation Instructions

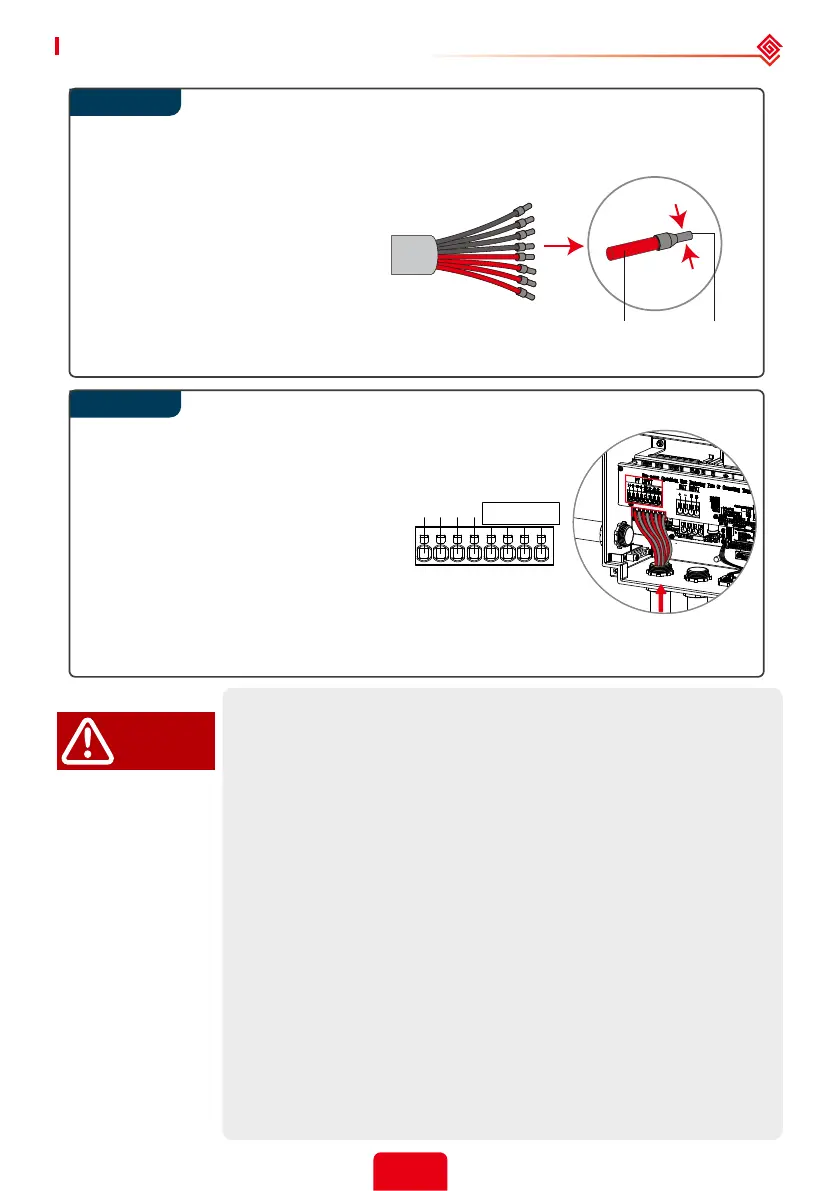

Step 1
TerminalCable
Step 2
PV INPUT
1+ 1- 2+ 2- 3+
Don’t connect, for the 5kW/6kW inverter
3- 4+ 4-
Note:
Make sure the cable jacket is not
locked within the wire ferrule’s
crimped section.
It is not necessary to utilize a wire
ferrule if using a solid (non-stranded)
conductor, just remove the insulation.
If using stranded wires, select a
proper size wire ferrule (included
in accessories box) for the PV input
circuits. Crimp the wire ferrules onto
the conductors tightly.
Run the PV conductors through one or
more conduit openings on the left side
of the inverter as pictured.
Connect the PV conductors to the PV
terminals.
• For 5kW/6kW models, one can connect
up to 2 PV circuits (4 conductors).
• For 7/7.6/8.6/9.6kW models, one can
connect up to 4 PV circuits (8 conductors).
Note: For inverter 5kW /6kW, do not
connect PV cables to Port 3+ /3- /4+ /4-.
The polarity of PV strings cannot be connected reversely, otherwise the
inverter could be damaged.
Do not connect multiple PV inputs in parallel. If required, add a fuse
outside or a breaker which observes safety specication.
The output circuit of PV strings may have dangerous voltage. Touching
theses conductors may cause electric shock.
Before connecting them to the PV input terminal, please make sure the
DC switch is turned o and there is no voltage at the terminals of DC input
conductors.
To avoid electric shock when the A-ES is running, do not operate on the PV
input terminals, such as connecting or disconnecting the PV strings or PV
module in the PV strings.
Le terminal de sortie du module PV peut exsister la tension dangereuse.
Toucher le terminal peut provoquer un choc électrique. Avant de connecter
le terminal d’entrée PV, assurez-vous que l’interrupteur DC est éteint et
qu’il n’y a pas de tension dans les terminaux des produits d’entrée DC.
Lorsque A-ES est en cours d’exécution, ne pas fonctionner sur les
terminaux d’entrée PV en cas de choc électrique, comme la connexion ou
la déconnexion des chaînes photovoltaïques ou du module PV dans les
chaînes photovoltaïques.
Make sure the equipment grounding wires from PV arrays are connected
to one of the GND/PE bus bars and that these bus bars have a stable,
bonded, and low resistance path to a grounding electrode conductor.
DANGER!
