Goodwe MS Series User Manual

13
05 Installation
User Manual V1.0-2022-10-30

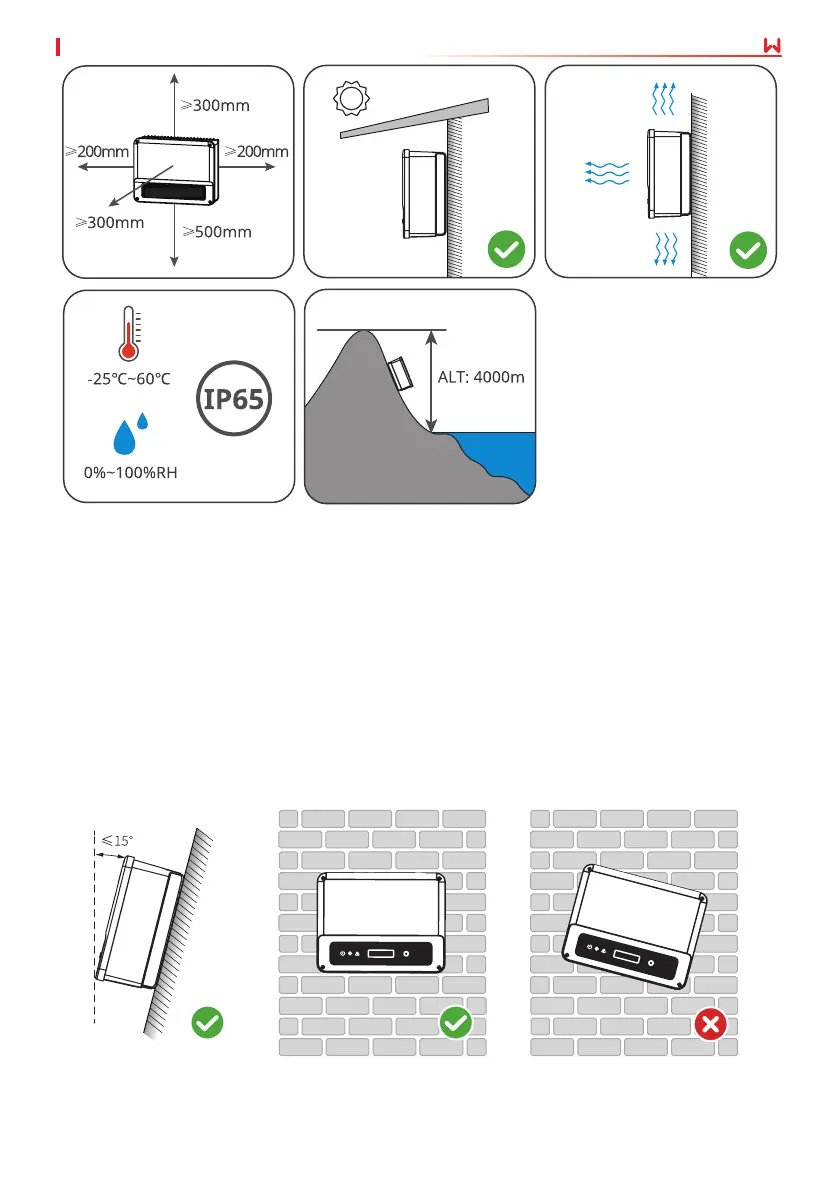

Installation Angle Requirements
• Install the inverter vertically or at a maximum back tilt of 15 degrees.
• Do not install the inverter upside down, forward tilt, back forward tilt, or horizontally.
Mounting Support Requirements
• The mounting support shall be nonammable and reproof.
• Make sure that the support surface is solid enough to bear the product weight load.
• Do not install the product on the support with poor sound insulation to avoid the noise
generated by the working product, which may annoy the residents nearby.

Goodwe MS Series Specifications

General

Power Range	3-10 kW
MPPT	2
AC Voltage Range	180-280 V
Protection Level	IP65
Cooling Method	Natural convection
Model	MS Series
Rated Output Current	34.8 A
Operating Temperature Range	-25°C to 60°C
Communication	Wi-Fi / Ethernet
