Goodwe MS Series User Manual

18
User Manual V1.0-2022-10-3006 Electrical Connection
DEVALAN Series MC4 Series
Click
NOTICE
Seal the PV input terminals using waterproof covers when they are not to be used. Otherwise,
the ingress protection rating will be inuenced.

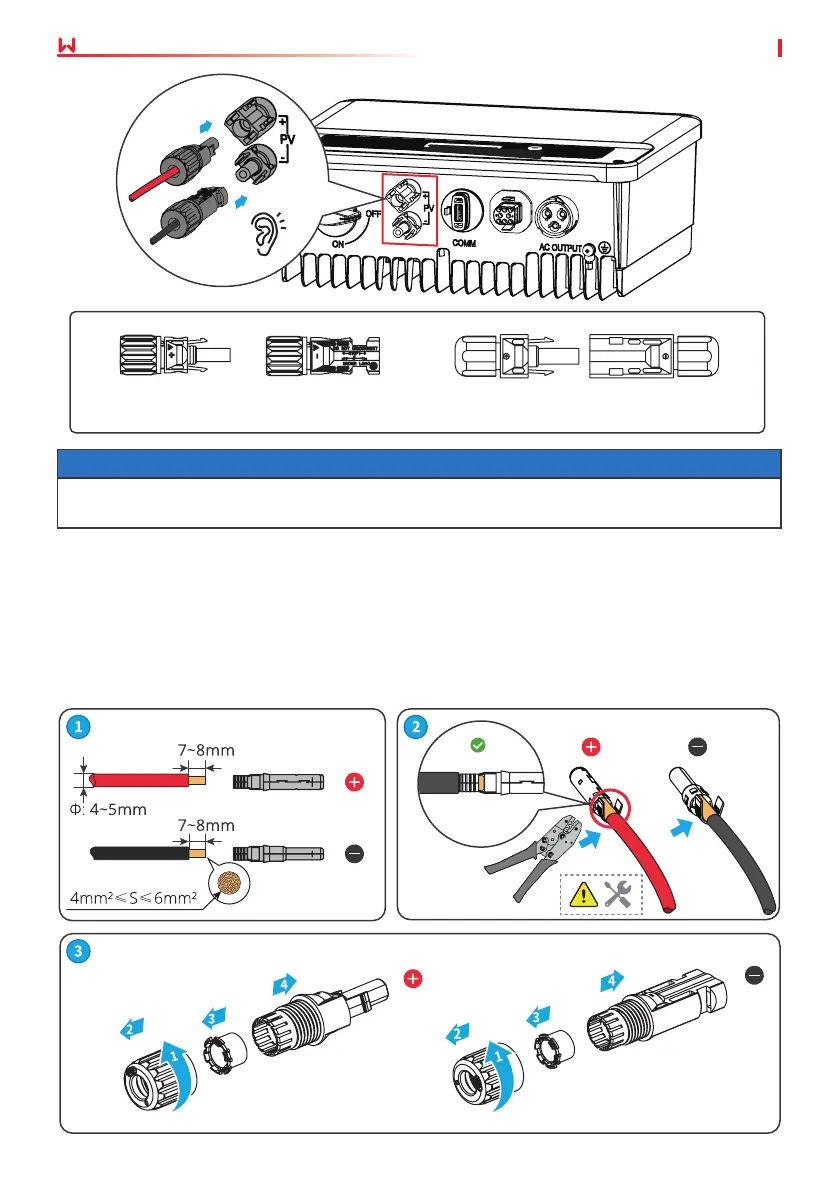

Step 1 Prepare DC cables.
Step 2 Crimp the crimp contacts.
Step 3 Disassemble the PV connectors.
Step 4 Make the DC cable and detect the DC input voltage.
Step 5 Plug the PV connectors into the PV terminals.
Connecting the DC Input Cable
MC4 PV connector

Goodwe MS Series Specifications

General

Power Range	3-10 kW
MPPT	2
AC Voltage Range	180-280 V
Protection Level	IP65
Cooling Method	Natural convection
Model	MS Series
Rated Output Current	34.8 A
Operating Temperature Range	-25°C to 60°C
Communication	Wi-Fi / Ethernet
