Gooxi Purley Platform 1U User Manual

<23>
Bottom surface
ITEM
Description
Function
Location
1
MINI SAS HD High Speed
Connector
For 12G/b SAS or 6G/b SATA signal
transmission.
J1
2
Power connector
Backplane power transfer connector
for transmission of 12V power.
J7

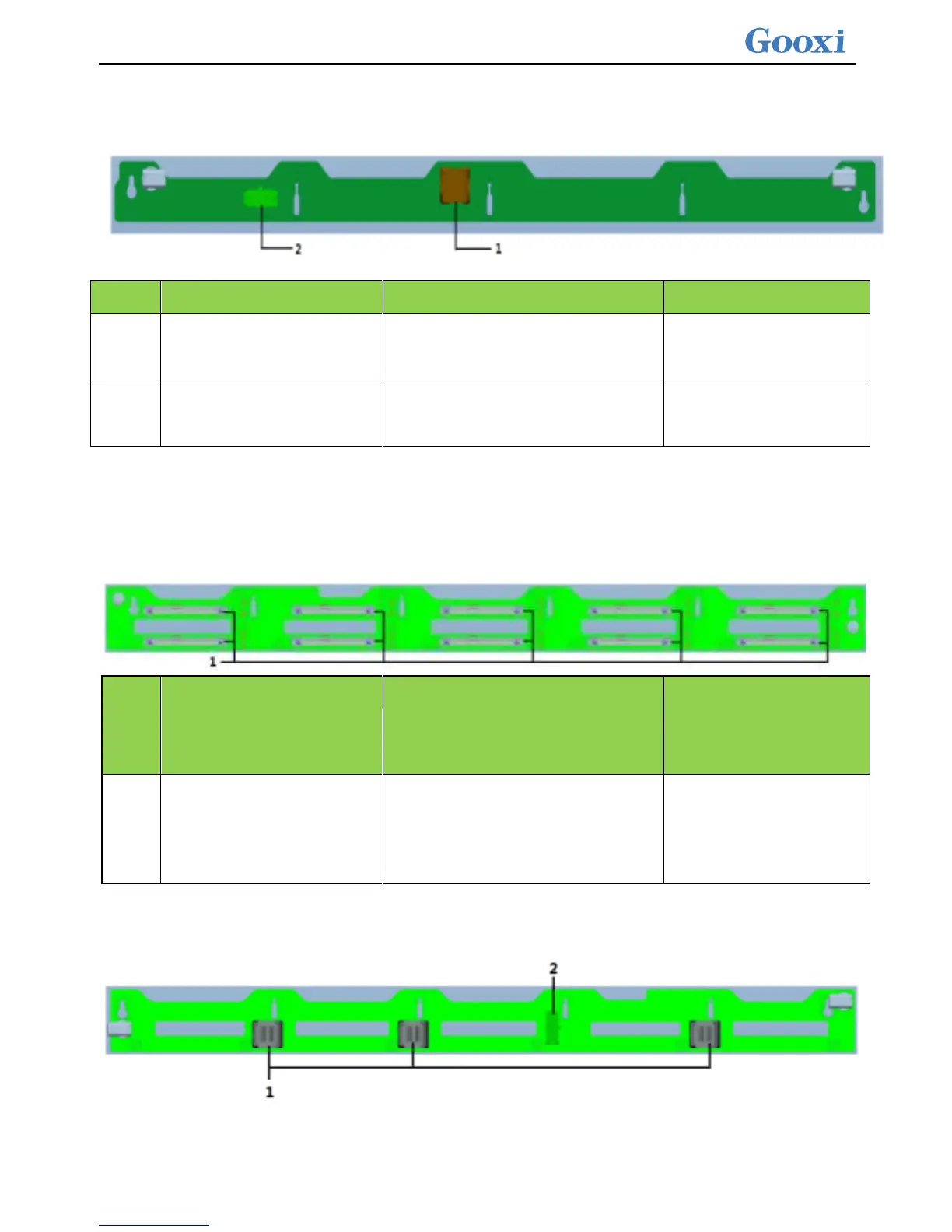

 1U10 2.5” backplane as shown
Top surface
Num
berin
g
Device description
Functional description
Bit number
1
SAS/SATA hard disk
connector
1. Maximum support 12G/b SAS hard
drive;
2. Maximum support 6G/b SATA
hard disk;
3. Support SAS/SATA hard disk hot
swap.
J6,J7,J8,J9,J10，
J11,J12,J13,J14,J15
Bottom surface
