Gooxi Purley Platform 1U User Manual

<22>
21
USB1
22
Ethernet 2
23
Ethernet 1
24
ID BUTTON
25
RISER3(PCIE3.0X16)
26
HDD PWR2
27
SATA DOM/DVD1
28
Power Module 2 Connector (J2)
29
SATA DOM/DVD2
30
USB3.0 CONN
31
LED CONN2
32
HDD PWR1
33
GPU PWR 1(RISER2)
34
Power Module 1 Connector (J1)
35
BP PWR3
36
BP PWR1
37
CD_PWR1
38
LED CONN1
39
BP PWR2
40
DOM_PWR2
41
DOM_PWR1
42
HFI CPU2 SIDEBAND
43
MEZZCONN 1
44
FP_CON1
45
FAN8(FAN14/15)
46
FAN7(FAN12/13)
47
FAN6(FAN10/11)
48
FAN5(FAN8/9)
49
FAN4(FAN6/7)
50
FAN3(FAN4/5)
51
FAN2(FAN2/3)
52
FAN1(FAN0/1)

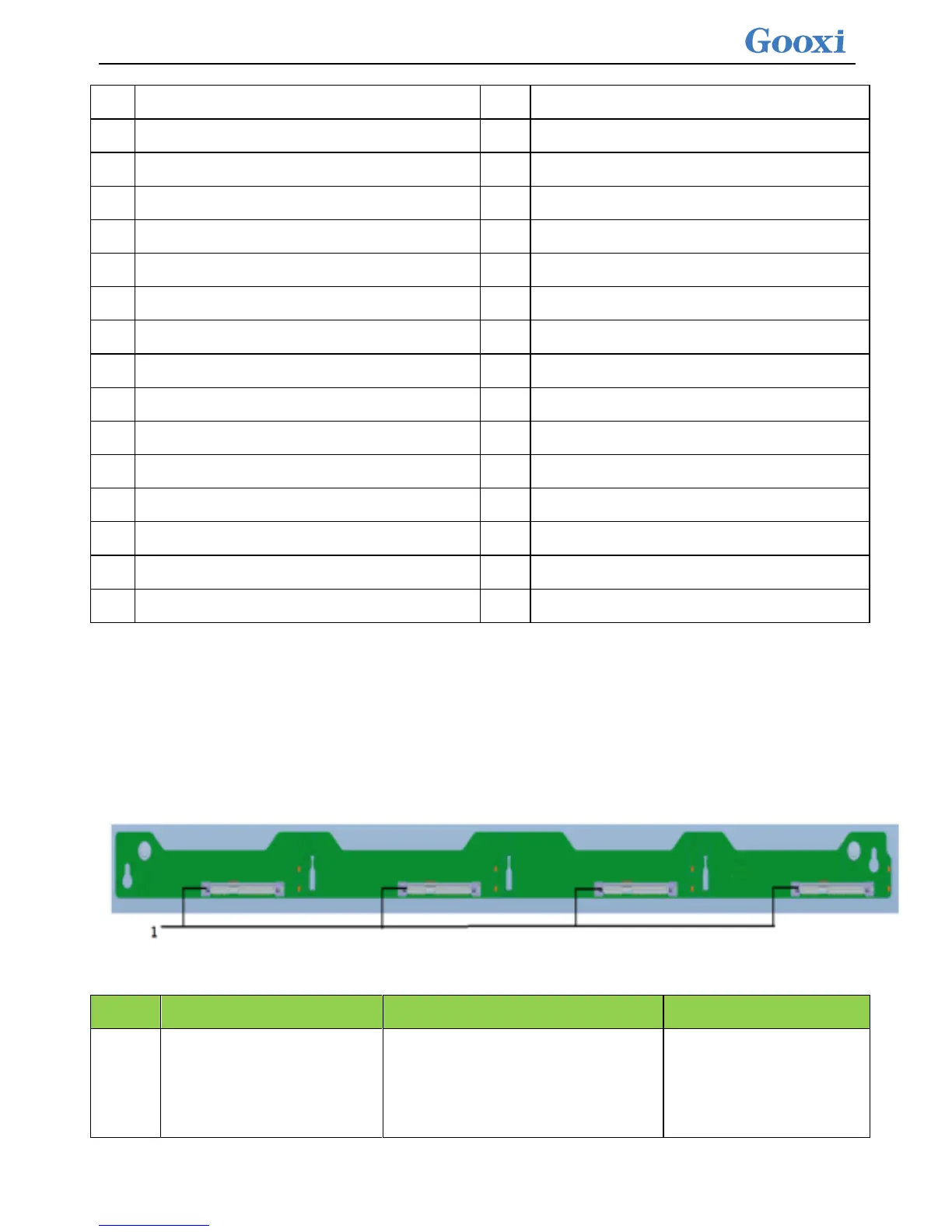

2.4.4 Hard disk backplane assembly
 1U4 3.5” backplane as shown
Top surface
ITEM
Description
Function
Location
1
SAS/SATA hard disk
connector
1. Maximum support 12G/b SAS hard
drive;
2. Maximum support 6G/b SATA
hard disk;
3. Support SAS/SATA hard disk hot
swap.
J3、J4、J5、J6

Gooxi Purley Platform 1U Specifications

General

Brand	Gooxi
Model	Purley Platform 1U
Category	Server
Language	English
