860-7100-19 DTU Operation Manual
All electrical installations and connections are to be made by
qualied installation personnel and adhering to national and local
codes.
Method 1 - Remote Panel Mobile: install the supplied power
drop kit as per the included documentation.
Method 2 - Remote Panel Anchored: The cable exiting the blue
connector shipped loose (shown below) is to be connected to the
supply power and must comply with national and local codes for
hard usage. At no time is the cable allowed to be on the oor or
for the connection to be under strain. The cable must be installed
in a manner that it is protected from mechanical harm and
material falling from adjacent conveyors. The conductors are to
be connected to the connector following the supplied schematic.

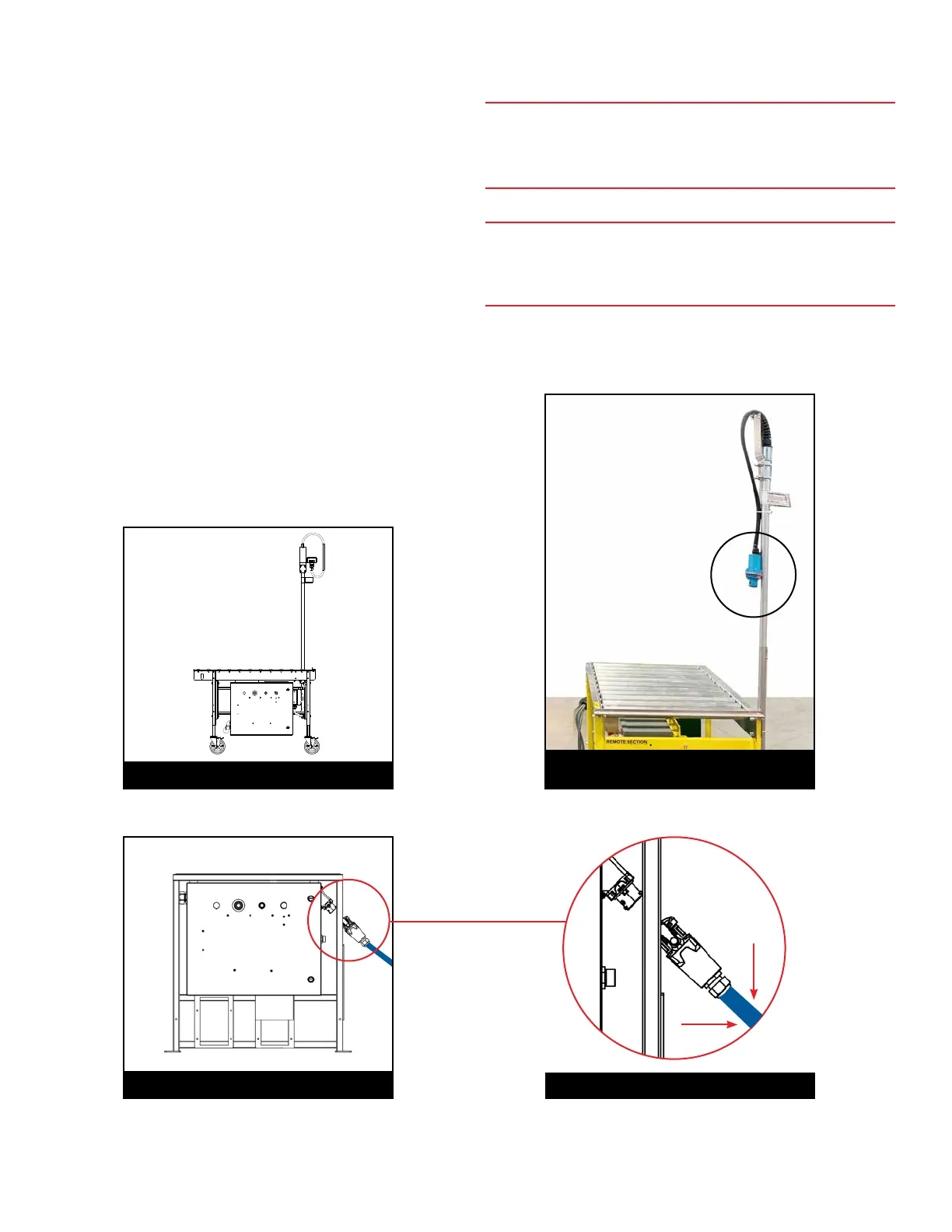

FACILITY POWER SUPPLY
Meltric Connector - top of the post of
Remote Section (Method 1)
Remote Panel - Mobile (Method 1)
Remote Panel - Anchored (Method 2) Power supply cable
ONLY AUTHORIZED PERSONNEL SHOULD CONNECT
POWER SUPPLY TO THE REMOTE PANEL. PERSONNEL
MUST ALWAYS FOLLOW PROPER PROCEDURES AND
WEAR APPROPRIATE PPE.
The Destu-it
TM
machine is equipped with a Surge-Protective
Device (SPD) interlocking the safety circuits. The SPD is
located in the Remote panel before the load side of the
branch circuit overcurrent protective device
